Bike Comparison
    Revolt 12020 Giant
    Recommended
    MSRP
    ($1,277)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    Weight
    		22.5 lbs
    3.4
    Frame
    		Aluminum
    Fork
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		45c
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Tiagra, FSA
    Drivetrain
    		2 × 10
    Brand Site

    giant-bicycles.com

    Summary

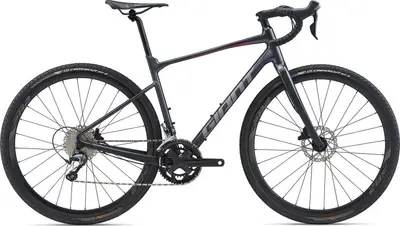

    		The Giant Revolt 1 is an aluminum frame gravel bike with mid-range components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Revolt 1
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    Revolt 1

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Revolt 12020 Giant
    Frame

    ALUXX Grade Aluminum, disc

    BB Standard: BSA, 68mm, Threaded

    Tire Clearance: 45c

    Color: Gunmetal Black

    Fork

    Advanced-Grade Composite (w/ Low-Rider Rack Mount), Full-Composite OverDrive Steerer, 12mm Thru-Axle, Flat Mount

    Shock

    N/A

    Bottom Bracket

    FSA MegaEXO Omega, Threaded

    Stem

    Giant Contact, 8-degree

    Handlebar

    Giant Contact XR D-Fuse, 31.8 5° back sweep, flared drop

    Saddle

    Giant Contact, Neutral, UniClip Accessory Mount

    Seatpost

    Giant D-Fuse, alloy

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano Tiagra

    Front Derailleur

    Shimano Tiagra

    Crank

    FSA Omega Adventure, 32/48

    Shifters

    Shimano Tiagra

    Cassette

    Shimano HG500, 11x34, 10-Speed

    Chain

    KMC X10 with Missing Link

    Brakes

    Giant Conduct Hydraulic Disc, 160mm

    Brake Levers

    Shimano Tiagra

    Wheels
    Rims

    Giant S-X2, Double Wall, Disc

    Spokes

    Sapim

    Front Hub

    Giant Tracker Sport, [F] 12mm [R] 12x142mm, 28h

    Rear Hub

    Giant Tracker Sport, [F] 12mm [R] 12x142mm, 28h

    Tires

    Giant Crosscut AT 2, 700x38
