MSRP | $1,799 | $2,299 |
|---|---|---|
Where to Buy | — $1 At | — $1 At |
Category | Trail | Trail |
Weight | 33.4 lbs | 32.2 lbs |
Frame | Aluminum | Aluminum |
| RockShox Yari RC (air) | RockShox Pike RC | |
| RockShox Monarch R | RockShox Monarch RT3 | |
Wheels | Aluminum | Aluminum |
Wheel Size | 27.5″ | 27.5″ |
| SRAM Level Hydraulic Disc | SRAM Level T Hydraulic Disc | |
| NX | GX | |
Drivetrain | 1 × 11 | 1 × 11 |
Suspension | Full | Full |
Front Travel | 130mm | 130mm |
Rear Travel | 130mm | 130mm |
Brand Site | ||

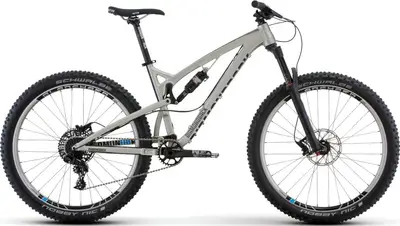

Summary | The Diamondback Catch 1 and Diamondback Catch 2 are both 27.5″ aluminum frame full suspension trail bikes. The Catch 2 has a dropper post and better components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube | Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
|---|---|---|
Fork | RockShox Yari RC 27+, 130mm Travel, w/ Rebound and Compression Damping, 35mm Stanchion, 1.5" Alloy Taper Steerer, w/ Boost 110x15mm Thru-axle Travel: 130mm Spring Type: Air | RockShox Pike RC 27+, 130mm Travel, w/ Rebound and Compression Damping, 35mm Stanchion, 1.5" Alloy Taper Steerer, w/ Boost 110x15mm Thru-axle Travel: 130mm |
Shock | RockShox Monarch R DebonAir, 200x57mm Travel: 130mm | RockShox Monarch RT3 DebonAir, 200x57mm Travel: 130mm |
Bottom Bracket | SRAM GXP | Raceface Outboard Bearing |
Headset | FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge | FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge |
Stem | DB35 Alloy, 50mm Reach, 35mm Bar Bore | DB35 Alloy, 50mm Reach, 35mm Bar Bore |
Handlebar | DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore | DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore |
Saddle | WTB Volt Comp | WTB Volt Race |
Seatpost | DB Alloy Micro Adjust, 31.6mm Type: Rigid | KS LEV Integra Dropper, 31.6mm Type: Dropper |
Pedals | DB4L Alloy Platform w/ Replaceable Pins | DB4L CNC Platform, Sealed Cartidge Bearing w/ Replaceable Pins |
Grips | DB4L "Lock on" 135mm Kraton | DB4L "Lock on" 135mm Kraton |
Rear Derailleur | SRAM NX X-Horizon, 11 Speed | SRAM GX X-Horizon, 11 Speed |
|---|---|---|
Crank | SRAM NX 1x, w/ X-Sync 30T Chain Ring | Race Face Æfect SL, 30T Direct Mount "Narrow Wide" Single Ring, Boost Compatible |
Shifters | SRAM NX 11 Speed X-Actuation Trigger | SRAM GX 11 Speed X-Actuation Trigger |
Cassette | SRAM PG1130, 11 Speed, 11-42T | SRAM XG1150, 11 Speed, 10-42T |
Chain | KMC X11EL, 11 Speed | KMC X11EL, 11 Speed |
Brakes | SRAM Level Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors Type: SRAM Level Hydraulic Disc | SRAM Level T Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors Type: SRAM Level T Hydraulic Disc |
Brake Levers | SRAM Level Hydraulic Levers w/ Tooled Reach Adjust | SRAM Level Hydraulic Levers w/ Tooled Reach Adjust |
Rims | Diamondback Blanchard 38R, Tubeless Compatible, 32h | Diamondback Blanchard 38R, Tubeless Compatible, 32h |
|---|---|---|
Spokes | 14g Stainless Steel | 14g Stainless Steel |
Front Hub | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount |
Rear Hub | 32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette | 32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/ XD Cassette Body |
Tires | Schwalbe Nobby Nic 27.5x2.8" Performance, Folding, | Schwalbe Nobby Nic 27.5x2.8", SnakeSkin, Folding, TL-Easy Tubeless Compatible |
