Today’s Deals2017 Diamondback
Catch 1

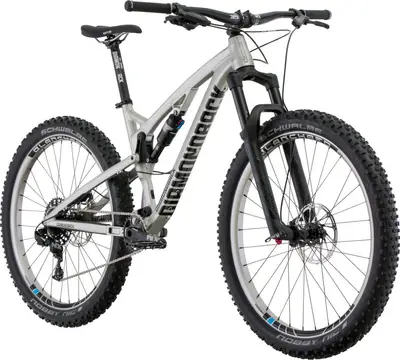

A 27.5″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$1,799| Weight | 33.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 130 / 130mm |
| Fork | RockShox Yari RC |
| Shock | RockShox Monarch R |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | NX |
| Brakes | SRAM Level Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2016
SANTA BARBARA, Calif. - It’s been a number of years since Diamondback has introduced a new suspension design, and the last rendition wasn’t really anything that would be very competitive in a market full of good-to-great platforms.
Mar 2016 · Saris Mercanti
Diamondback’s latest trail bikes introduce a brand new patent pending suspension platform. The Release and the Catch provide great performance at a bargain price. - Mtbr.com
| Frame | Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
|---|---|
| Fork | RockShox Yari RC 27+, 130mm Travel, w/ Rebound and Compression Damping, 35mm Stanchion, 1.5" Alloy Taper Steerer, w/ Boost 110x15mm Thru-axle Travel: 130mm Spring Type: Air |
| Shock | RockShox Monarch R DebonAir, 200x57mm Travel: 130mm |
| Bottom Bracket | SRAM GXP |
| Headset | FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge |
| Stem | DB35 Alloy, 50mm Reach, 35mm Bar Bore |
| Handlebar | DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore |
| Saddle | WTB Volt Comp |
| Seatpost | DB Alloy Micro Adjust, 31.6mm Type: Rigid |
| Pedals | DB4L Alloy Platform w/ Replaceable Pins |
| Grips | DB4L "Lock on" 135mm Kraton |

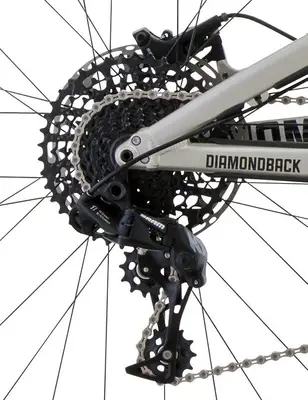

| Rear Derailleur | SRAM NX X-Horizon, 11 Speed |
|---|---|

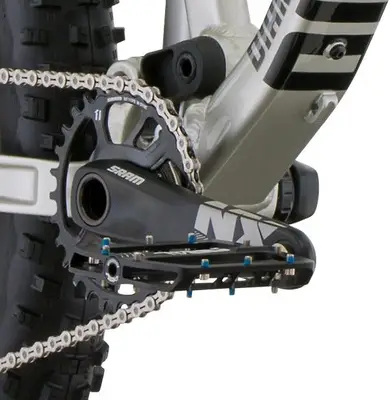

| Crank | SRAM NX 1x, w/ X-Sync 30T Chain Ring |
| Shifters | SRAM NX 11 Speed X-Actuation Trigger |
| Cassette | SRAM PG1130, 11 Speed, 11-42T |
| Chain | KMC X11EL, 11 Speed |
| Brakes | SRAM Level Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors Type: SRAM Level Hydraulic Disc |
| Brake Levers | SRAM Level Hydraulic Levers w/ Tooled Reach Adjust |
| Rims | Diamondback Blanchard 38R, Tubeless Compatible, 32h |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount |
| Rear Hub | 32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette |
| Tires | Schwalbe Nobby Nic 27.5x2.8" Performance, Folding, |
First added January 17
Last updated March 7
Not listed for 3,034 days
