	BEYOND SUS2025 Bombtrack	Recommended

MSRP
Where to Buy	$1,999 20% off At Campfire Cycling $2,599 20% off At Campfire Cycling
Category	Gravel
Weight	27.1 lbs
	3.3
Frame	Steel
	RockShox Rudy XPLR
Wheels	Aluminum
Wheel Size	27.5″ / 29″
Clearance	2"
	TRP Mechanical Disc


	Apex
Drivetrain	1 × 11
Suspension	Hardtail
Front Travel	40mm
Brand Site	bombtrack.com

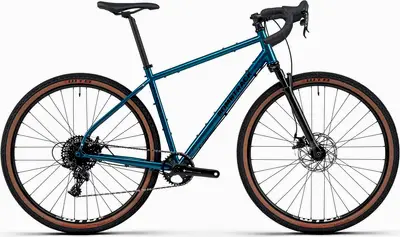

Summary	The Bombtrack BEYOND SUS is a steel frame gravel bike with mid-range components and trp mechanical disc brakes.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from a Gear Advisor at Jenson USA

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Rider Position

relaxedaggressive

Terrain

smoothrugged

BEYOND SUS

Other Gravel bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

BEYOND SUS

Highest gear

(descending)

Geometry

Specs

	BEYOND SUS2025 Bombtrack

Frame	4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 2" Color: Metallic Teal
Fork	RockShox Rudy XPLR suspension fork, 1.1/2" - 1.1/8", 40 mm travel, 51 mm offset Travel: 40mm Spring Type: Air
Bottom Bracket	BSA sealed BB, external cups
Headset	Sealed external aheadset, 1.1/2'' - 1.1/8''
Stem	Bombtrack Tramp forged aluminium stem, 3°
Handlebar	Bombtrack Tackle gravel bar, 31.8 mm, 25° flare
Saddle	Bombtrack Fuzz saddle
Seatpost	Seido Beech 27.2 mm x 400 mm Type: Rigid
Pedals	-
Grips	Bombtrack Command bar tape

Groupset

Rear Derailleur	SRAM Apex 1, clutch, long cage
Front Derailleur	-
Crank	Bombtrack Ames forged aluminium crank, 24 mm spindle
Shifters	SRAM Apex double tap 1 x 11
Cassette	SRAM PG-1130 11-speed, 11 - 42 T
Chain	KMC X11 chain, 1/2'' x 11/128'', 114L
Brakes	TRP Spyre C mechanic disc brakes Type: TRP Mechanical Disc

Wheels

Rims	Front: WTB ST i23 double wall, TCS 2.0, 32h, Rear: WTB ST i23 double wall, TCS 2.0, 32h
Front Hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear Hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Tires	Front: WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' /, M - XL 29'' x 2.0'', tubeless ready, Rear: WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' /, M - XL 29'' x 2.0'', tubeless ready
Disc Rotors	SRAM Centerline 180 mm front and 160 mm rear rotor
