Today’s Deals2025 Bombtrack
BEYOND SUS

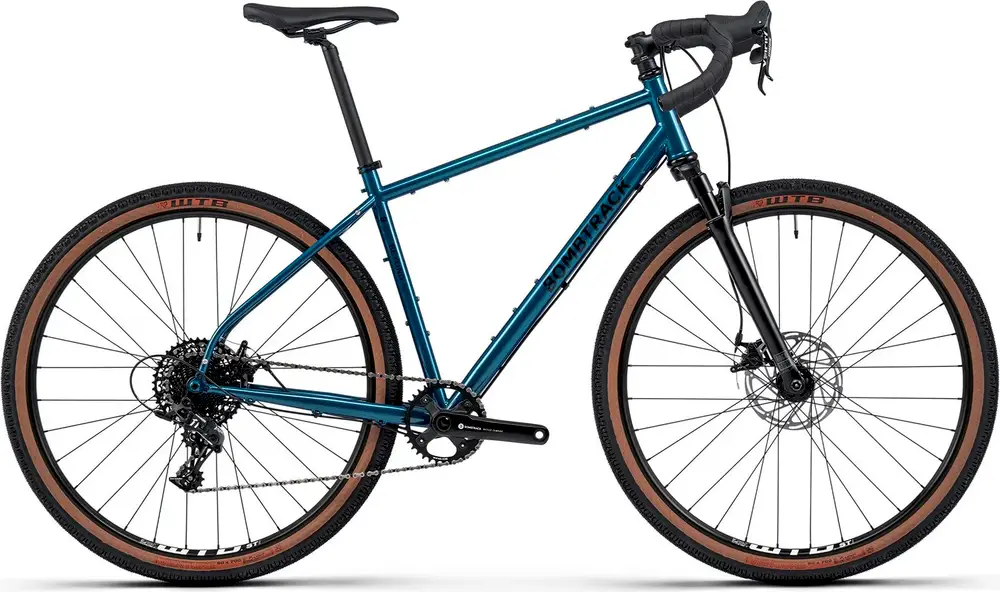

A steel frame gravel bike with mid-range components and trp mechanical disc brakes.
Compare the full range
| Weight | 27.1 lbs |
|---|---|
| Frame | Steel |
| Suspension | Hardtail, 40mm |
| Fork | RockShox Rudy XPLR |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Apex |
| Brakes | TRP Mechanical Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2023 · Cory Benson
Bombtrack adds AL alloy & SUSpension Beyond adventure bikepacking bikes, upgrades Hook EXT with AXS & Arise SG with Apex...
| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 2" Color: Metallic Teal |
|---|---|
| Fork | RockShox Rudy XPLR suspension fork, 1.1/2" - 1.1/8", 40 mm travel, 51 mm offset Travel: 40mm Spring Type: Air |
| Bottom Bracket | BSA sealed BB, external cups |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Stem | Bombtrack Tramp forged aluminium stem, 3° |
| Handlebar | Bombtrack Tackle gravel bar, 31.8 mm, 25° flare |
| Saddle | Bombtrack Fuzz saddle |
| Seatpost | Seido Beech 27.2 mm x 400 mm Type: Rigid |
| Pedals | - |
| Grips | Bombtrack Command bar tape |
| Rear Derailleur | SRAM Apex 1, clutch, long cage |
|---|---|
| Front Derailleur | - |
| Crank | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| Shifters | SRAM Apex double tap 1 x 11 |
| Cassette | SRAM PG-1130 11-speed, 11 - 42 T |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Brakes | TRP Spyre C mechanic disc brakes Type: TRP Mechanical Disc |
| Rims | Front: WTB ST i23 double wall, TCS 2.0, 32h, Rear: WTB ST i23 double wall, TCS 2.0, 32h |
|---|---|
| Front Hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear Hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Tires | Front: WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' /, M - XL 29'' x 2.0'', tubeless ready, Rear: WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' /, M - XL 29'' x 2.0'', tubeless ready |
| Disc Rotors | SRAM Centerline 180 mm front and 160 mm rear rotor |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | - |
