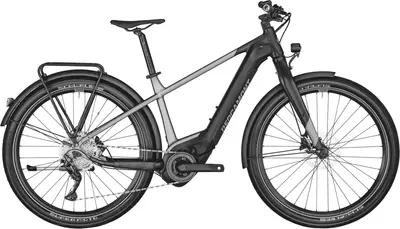

    E-Revox Rigid EQ2022 Bergamont
    Recommended
    MSRP
    ($4,091)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		51.8 lbs
    7.2
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano Hydraulic Disc
    		Bosch 250W 63Nm mid-drive
    		Bosch 500Wh
    		Deore
    Drivetrain
    		1 × 10
    Brand Site

    bergamont.com

    Summary
    		The Bergamont E-Revox Rigid EQ is a 650b aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    E-Revox Rigid EQ

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-Revox Rigid EQ2022 Bergamont
    Frame

    27.5", ultra lite AL-6061 tubing, PowerTube battery

    BB Standard: Bosch, Press Fit

    Color: Chrome Silver (Matt)

    Fork

    BGM 27.5" MTB rigid fork

    Bottom Bracket

    Bosch, Isis

    Headset

    Prestine PT F13X, A-Headset, semi-integrated, tapered

    Stem

    Syncros FL2.0, +/-6°

    Handlebar

    Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

    Saddle

    Syncros Tofino 2.5

    Seatpost

    Syncros M3.0

    Type: Rigid

    Pedals

    none

    Grips

    Ergon GA20

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M4120, Shadow

    Crank

    FSA CK-200, 34t, 170 mm

    Shifters

    Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter

    Cassette

    Shimano Deore, CS-M4100, 11-46t

    Chain

    KMC e10S

    Brakes

    Shimano BR-MT200, hydraulic disc brake

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT201, hydraulic disc brake

    Wheels
    Rims

    Alex EXR30, disc, eyelets, width: 30 mm

    Spokes

    Sapim Leader

    Front Hub

    Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

    Rear Hub

    Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

    Tires

    Front: Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light, Rear: Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light

    Disc Rotors

    Shimano SM-RT30, 180 mm

    Electric Components
    Motor

    Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h

    Battery

    Bosch PowerTube, 36 V Li Ion, 500 Wh

    Display

    Bosch Purion

    Accessories
    Lights

    Front: Litemove SE, 70 Lux, LED Rear: Herrmans H-Trace Mini, LED

    Fenders

    Curana Apollo, with stainless stays

    Racks

    Racktime / BGM Allroad carrier, Snapit 2.0 System
