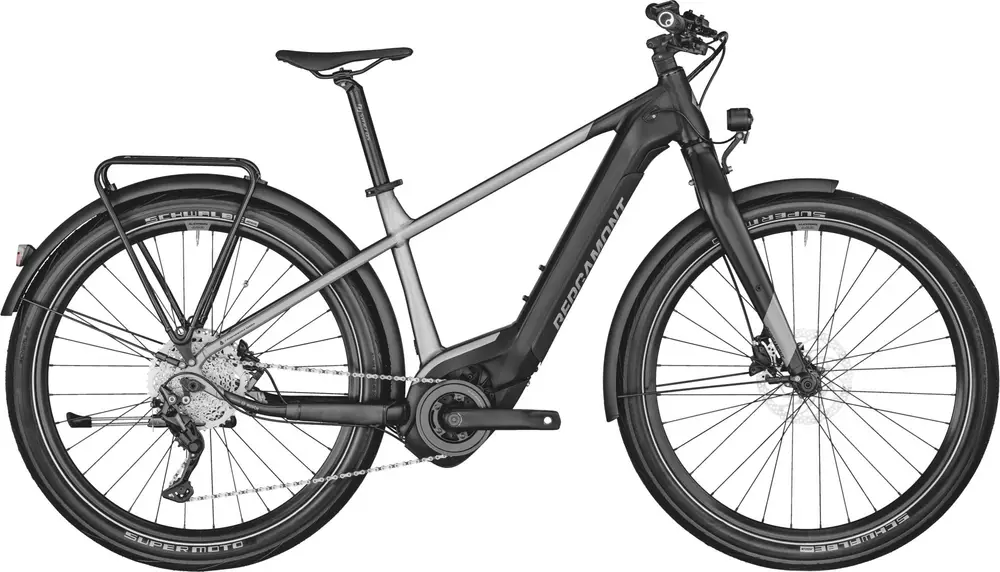

2022 Bergamont

E-Revox Rigid EQ

A 650b aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

£3,049($4,091)
Weight51.8 lbs
FrameAluminum
SuspensionRigid
Wheels650b Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 250W 63Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Hydraulic Disc
View on bergamont.comLearn about Bergamont
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

E-Revox Rigid EQ

31 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

27.5", ultra lite AL-6061 tubing, PowerTube battery

BB Standard: Bosch, Press Fit

Color: Chrome Silver (Matt)

Fork

BGM 27.5" MTB rigid fork

Bottom Bracket

Bosch, Isis

Headset

Prestine PT F13X, A-Headset, semi-integrated, tapered

Stem

Syncros FL2.0, +/-6°

Handlebar

Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

Saddle

Syncros Tofino 2.5

Seatpost

Syncros M3.0

Type: Rigid

Pedals

none

Grips

Ergon GA20

Groupset
Rear Derailleur

Shimano Deore, RD-M4120, Shadow

Crank

FSA CK-200, 34t, 170 mm

Shifters

Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter

Cassette

Shimano Deore, CS-M4100, 11-46t

Chain

KMC e10S

Brakes

Shimano BR-MT200, hydraulic disc brake

Type: Shimano Hydraulic Disc

Brake Levers

Shimano BL-MT201, hydraulic disc brake

Wheels
Rims

Alex EXR30, disc, eyelets, width: 30 mm

Spokes

Sapim Leader

Front Hub

Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

Rear Hub

Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

Tires

Front: Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light, Rear: Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light

Disc Rotors

Shimano SM-RT30, 180 mm

Electric Components
Motor

Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h

Battery

Bosch PowerTube, 36 V Li Ion, 500 Wh

Display

Bosch Purion

Accessories
Lights

Front: Litemove SE, 70 Lux, LED Rear: Herrmans H-Trace Mini, LED

Fenders

Curana Apollo, with stainless stays

Racks

Racktime / BGM Allroad carrier, Snapit 2.0 System
