Today’s Deals2023 Yamaha
Cross CoreRC
A 650b aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
$2,999| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Fork | Suntour NEX |
| Wheels | 650b Aluminum |
| Groupset | Alivio, Sora |
| Motor | Yamaha 250W 70Nm mid-drive |
| Battery | Yamaha 500Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Cross model range
View Comparison5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

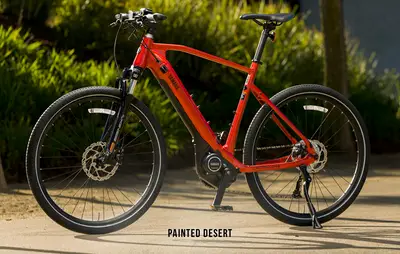

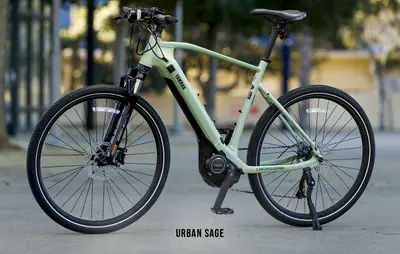

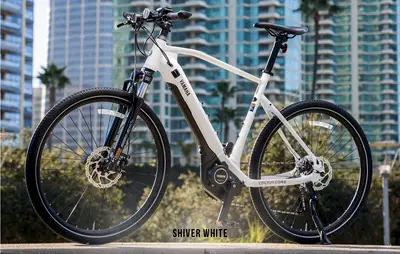

| Frame | Yamaha Hydroformed Aluminum, Integrated battery, Water bottle boss, Tapered Headtube, Internal shift/brake hose routing, Rack/Fender compatible Colors: Painted Desert; Shiver White; Urban Sage |
|---|---|
| Fork | SR Suntour NEX E25. 63mm Travel, 2x100mm Thru-Axle Travel: 63mm Spring Type: Coil |
| Headset | Integrated headset with 30mm headset spacers |
| Stem | Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (53cm, 55cm), 100mm length (58cm) |
| Handlebar | Alloy flat bar zero degree rise, 31.8mm diameter, 640mm width |
| Saddle | Yamaha Urban Comfort Cro-Mo Rail |
| Seatpost | Alloy 30.9 x 295mm (S), 345mm (M L) with 2-bolt adjustable tilt saddle rail clamp Type: Rigid |
| Rear Derailleur | Shimano M3100 SGS |
|---|---|
| Front Derailleur | Shimano Sora (2 x 9) Braze-on |
| Crank | SAMOX 44t, Square taper, 165mm (S), 170mm (M L) |
| Shifters | Shimano M2010 9-speed, Gear selection window |
| Cassette | SHIMANO HG400 9-speed, 11-13-15-17-20-23-26-30-36T |
| Chain | KMC e11 118 links |
| Brakes | Hydraulic disc brake. 2-Finger Lever, Shimano SM RT21 Rotors, 180mm front, 160mm rear Type: Shimano Hydraulic Disc |
| Rims | 275” 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke |
|---|---|
| Spokes | SUS304 14G |
| Front Hub | Front: 12x100mm Quick-Release Thru-Axle (QRTA), Rear: 12x142mm QRTA with integrated speed sensor |
| Rear Hub | Front: 12x100mm Quick-Release Thru-Axle (QRTA), Rear: 12x142mm QRTA with integrated speed sensor |
| Tires | CST C1996 27.5x2.0” |
| Motor | PWSeries ST, 3-bolt Mount, Square taper spindle, Quad Sensor System with rear hub speed sensor, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 28mph, Support modes: AUTO, ECO+, ECO, STANDARD, HIGH |
|---|---|
| Battery | Yamaha Lithium Ion with charge-life indicator and self-diagnosis display, Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time |
| Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator, Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
