Today’s Deals2023 Yamaha
Cross Core
A 700c aluminum frame hybrid e-bike with mid-range components and shimano sora mechanical disc brakes.
Compare the full range
Manufacturer Price
$2,399| Weight | 43.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 9 |
| Groupset | Sora |
| Motor | Yamaha 250W 70Nm mid-drive |
| Battery | Yamaha 500Wh |
| Brakes | Shimano Sora Mechanical Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Cross model range
View Comparison5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

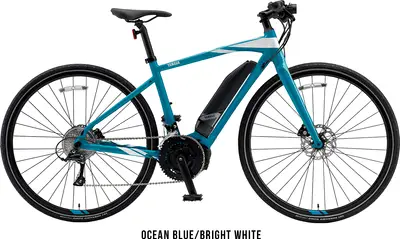

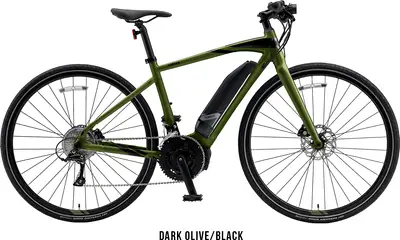

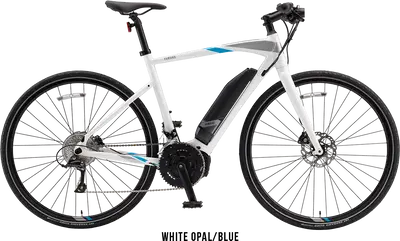

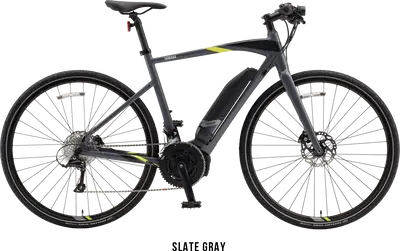

| Frame | Yamaha hydroformed and butted alluminum tubing, Internal cable/housing routing, Accessory mount, Fender and Rack compatible, 3-bolt motor mount, 12 x 142 rear spacing, Integrated speed sensor harness Colors: Slate Gray; White Opal / Blue; Ocean Blue / Bright White; Dark Olive / Black |
|---|---|
| Fork | Alloy, 12mm thru-axle, fender compatible, internal cable housing routed, 1 1/8in steerer |
| Headset | Integrated headset with 30mm headset spacers |
| Stem | Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (53cm, 55cm), 100mm length (58cm) |
| Handlebar | Alloy flat bar zero degree rise, 31.8mm diameter, 640mm width |
| Saddle | Yamaha Road Plus Cro-Mo Rail |
| Seatpost | Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp Type: Rigid |
| Rear Derailleur | Shimano Sora RD-3000 GS 9-speed |
|---|---|
| Front Derailleur | Shimano Sora (2 x 9) Braze-on |
| Crank | 50/34T E-Ring 110 BCD, Square taper, 165mm (S), 170mm (M), 170mm (L) |
| Shifters | Shimano 9-speed Sora trigger shifter, Gear selection window |
| Cassette | Shimano 9-speed, 11/30T |
| Chain | KMC X9e |
| Brakes | Shimano Sora BL-R3000 Mechanical Disc 160mm SM-RT68 Centerlock Rotor Type: Shimano Sora Mechanical Disc |
| Rims | 700c, Dual channel welded pin rim, Eyelet spoke holes, Width 24.5mm (OUTSIDE) 19mm (INSIDE) |
|---|---|
| Spokes | Spokes SUS304 |
| Front Hub | Anodized. Centerlock brake mount. front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor |
| Rear Hub | Anodized. Centerlock brake mount. front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor |
| Tires | CST Sensamo Sumo 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use, PV Tube |
| Motor | PWSeries SE, Center mount, Square taper spindle, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 20mph Support modes: ECO+, ECO, STANDARD, HIGH |
|---|---|
| Battery | Yamaha 500Wh with charge-life indicator and self-diagnosis display, Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time |
| Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator, Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
