Today’s Deals2021 Yamaha
Cross Connect

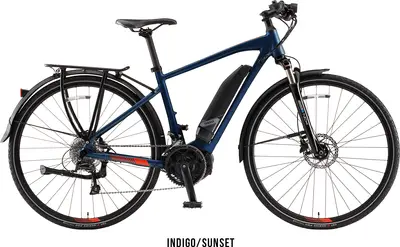

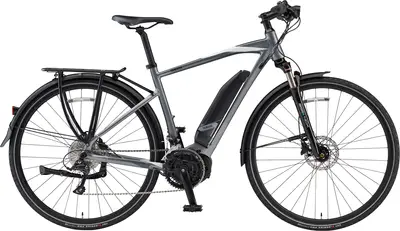

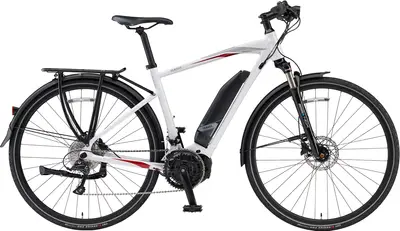

A 700c aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
$2,999| Weight | 49.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 9 |
| Groupset | Sora |
| Motor | Yamaha 250W 70Nm mid-drive |
| Battery | Yamaha 500Wh |
| Brakes | Shimano Hydraulic Disc |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2019
Price: $2999.00 | Model Year: 2019 | A sleek commuter from Yamaha, a household brand name going for a balance of price, performance, efficiency, and a purist feel, for years they did their homework studying their applications on Haibike, Giant, etc, using data and analysis to make offerings of their own
A sleek commuter from Yamaha, a household brand name going for a balance of price, performance, efficiency, and a purist feel, for years they did their homework studying their applications on Haibike, Giant, etc, using data and analysis to make offerings of their own
The PW SE motor is smooth and very efficient, coupled with the protected PW-X display, it makes for a intuitive and enjoyable riding feel, measuring cadence, torque, and rear wheel speed, this is complimented well by the hydraulic brakes and front suspension fork
A 3 year warranty and a dealer network that gets reimbursed for working on your bike which means much less customer issues on an already proven and reliable electric system, a perk some of the smaller brand names are still catching up to
Plastic was chosen for the fenders, pedals, and the rear LED light housing, the rear LED plastic housing has been known to get damaged in shipping and is in a vulnerable spot for loading, so take care working around it, although there is some plastic on the bike, it was likely chosen to keep cost down
| Frame | Yamaha hydroformed and butted alluminum tubing, Internal cable/housing routing, Accessory mount, 3-bolt motor mount, 12 x 142 rear spacing, Integrated speed sensor harness Colors: Storm Gray; Polar White / Crimson; Indigo / Sunset; Crimson / Sand |
|---|---|
| Fork | SR Suntour NCX 63mm, mechanical lock-out, 30mm stanchion, magnesium lowers, adjustable air sleeve, Alloy 1 1/8in steerer, 15mm thru-axle, Fender included Travel: 63mm Spring Type: Air |
| Headset | Integrated headset with 30mm headset spacers |
| Stem | Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (54cm, 56cm), 100mm length (58cm) |
| Handlebar | Alloy flat bar zero degree rise. 31.8mm diameter. 640mm width. |
| Saddle | Yamaha Path Plus Cro-Mo Rails |
| Seatpost | Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp Type: Rigid |
| Rear Derailleur | Shimano Sora RD-3000 GS 9-speed |
|---|---|
| Front Derailleur | Shimano Sora (2 x 9) Braze-on |
| Crank | 46/34T 110 BCD, Square taper, 165mm (S), 170mm (M), 170mm (L) |
| Shifters | Shimano 9-speed Sora trigger shifter. Gear selection window |
| Cassette | Shimano 9-speed, 11/30T |
| Chain | KMC X9e |
| Brakes | Shimano M315 Hydraulic Disc 160mm Front:6-bolt SM-RT 56 Rotor. Rear: Shimano SM-RT68 Centerlock Rotor Type: Shimano Hydraulic Disc |
| Rims | 700c. Dual channel welded pin rim, Eyelet spoke holes, Width 24.5mm (OUTSIDE) 19mm (INSIDE) |
|---|---|
| Spokes | Spokes SUS304 |
| Front Hub | Anodized, Front hub 15 x 100 TA, 6-bolt brake mount, Rear hub 12 x 142 Centerlock brake mount, Shimano freehub and Yamaha Bicycles Speed Sensor |
| Rear Hub | Anodized, Front hub 15 x 100 TA, 6-bolt brake mount, Rear hub 12 x 142 Centerlock brake mount, Shimano freehub and Yamaha Bicycles Speed Sensor |
| Tires | CST E-SERIES PRO 28×1 5/8 ×1 3/8(700 x 35c) Level-6 Flat Protection Reflective Sidewall approved for eBike use, PV Tube |
| Motor | PWSeries SE, Center mount, Square taper spindle, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 20mph, Support modes: ECO+, ECO, STANDARD, HIGH |
|---|---|
| Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time |
| Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator, Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
