2025 Winora

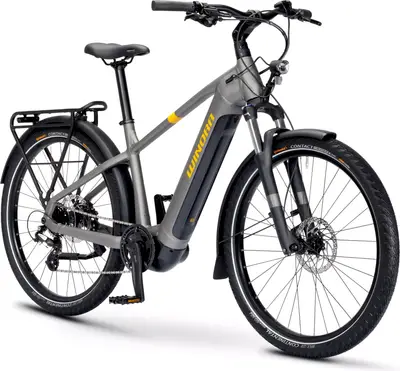

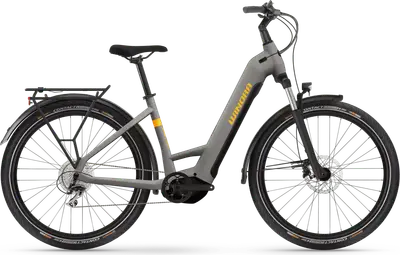

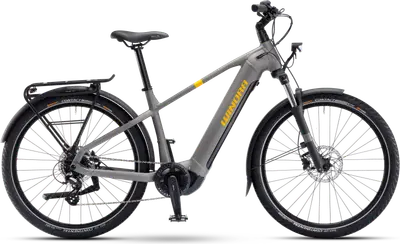

Yucatan X8

A 650b aluminum frame hybrid e-bike with modest components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,199($3,722)
Price History
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels650b Aluminum
Drivetrain1 × 8
GroupsetAcera, Altus
MotorYamaha mid-drive
BatteryYamaha 720Wh
BrakesShimano Hydraulic Disc
View on winora.comLearn about Winora
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Yucatan model range

View Comparison
Sizing
40cm

5'3" – 5'8"

45cm

5'6" – 5'11"

50cm

5'9" – 6'2"

55cm

6'0" – 6'5"

60cm

6'3" – 6'9"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

High Aluminium Uni

Fork

Suntour XCM32 ATB DS LO 100 mm

Travel: 100mm

Spring Type: Coil

Bottom Bracket

integrated in the motor

Headset

Winora AX1AH7

Stem

XLC Adjustable A-Head adjustable, Dia. 31.8 mm

Handlebar

Winora Ergoriser, oversize

Saddle

Selle Royal Wave

Seatpost

Winora Non Suspension Patent, Dia. 34.9 mm

Type: Suspension

Pedals

VP E461

Groupset
Rear Derailleur

Shimano Acera RD-M3020, 8s

Crank

Miranda aluminium crank

Shifters

Shimano Triggershift Altus M315-8R Rapidfire

Cassette

Shimano CS-HG400-8, HG

Chain

KMC Chain X8

Brakes

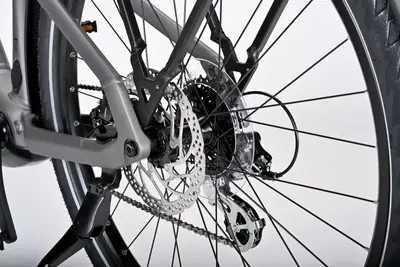

Shimano Hydraulic Disc brake MT200, 180 mm

Type: Shimano Hydraulic Disc

Wheels
Rims

Schurmann Hollow rim Yak25

Front Hub

Shimano HB-MT200 9 x 100 mm

Rear Hub

Shimano HB-MT400-B 10 x 135 mm

Tires

Continental Contact Cruiser 62-584

Electric Components
Motor

Yamaha

Battery

Yamaha Li-ION InTube 720 Wh, Capacity: 720 Wh, Location: Powertube

Display

Yamaha Side Switch

Charger

Yamaha quick charger 4 Ah

Accessories
Lights

Front: Herrmans CL3, 30 lux, Rear: AXA Juno Ebike

Fenders

Curana Apollo 70, Aluminium

Racks

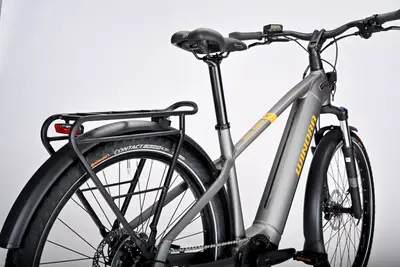

Winora MIK system carrier, HD

Lock

Abus upgradable over Plus System
