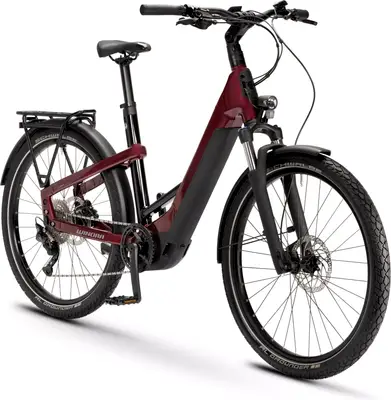

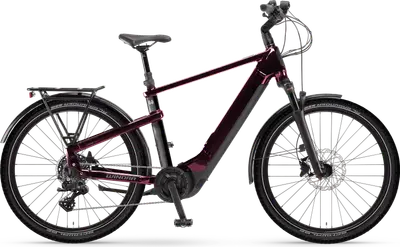

2025 Winora

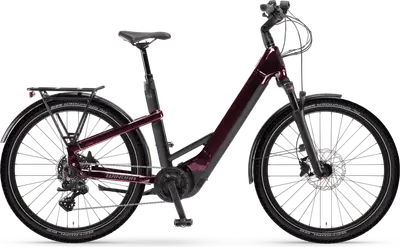

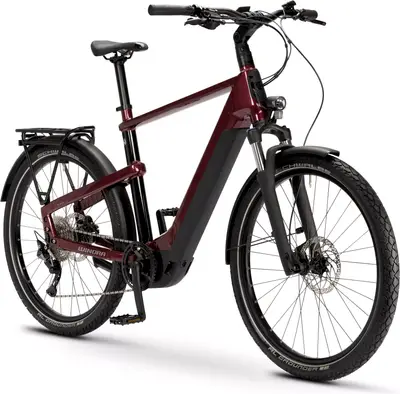

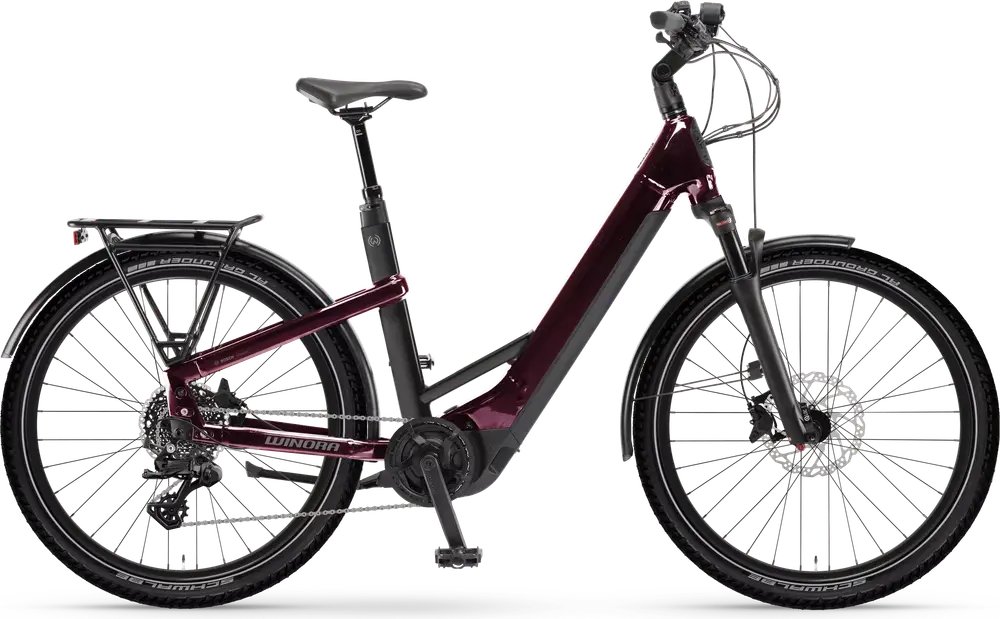

Yakun X10E

A 650b aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,699($4,284)
Price History
FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour XCM
Wheels650b Aluminum
GroupsetmicroSHIFT Advent X
MotorBosch hub-drive
BatteryBosch 625Wh
BrakesShimano Hydraulic Disc
View on winora.comLearn about Winora
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Yakun model range

View Comparison
Sizing
45cm

5'2" – 5'8"

50cm

5'6" – 5'11"

55cm

5'9" – 6'2"

60cm

6'0" – 6'6"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build

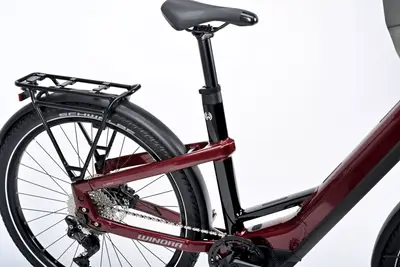

Frame

High Aluminium Uni

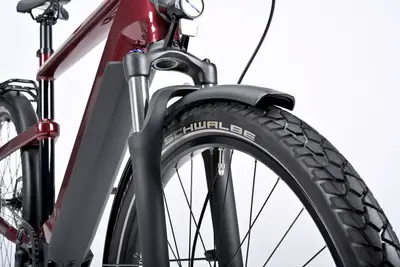

Fork

Suntour XCM32 ATB NLO DS 80 mm

Travel: 80mm

Spring Type: Coil

Bottom Bracket

integrated in the motor

Headset

Winora A-Head Tapered

Stem

XLC Adjustable A-Head adjustable, Dia. 31.8 mm

Handlebar

Winora Ergoriser, oversize

Saddle

Selle Royal Vivo

Seatpost

Winora Non Suspension Patent, Dia. 34.9 mm

Type: Suspension

Pedals

VP E461

Groupset

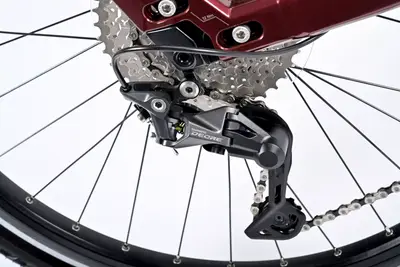

Rear Derailleur

MicroSHIFT Advent X RD-M6205M, 10s

Crank

Miranda Virage

Shifters

MicroSHIFT Triggershift Advent X SL-M9505-R

Cassette

MicroSHIFT X HG104-10

Chain

KMC Chain e10S

Brakes

Shimano Hydraulic Disc brake

Type: Shimano Hydraulic Disc

Wheels
Rims

Schurmann Hollow rim Yak25

Front Hub

Winora alu hub 9 x 100 mm

Rear Hub

Shimano HB-MT400-B 10 x 135 mm

Tires

Schwalbe Al Grounder Performance 60-584

Electric Components
Motor

Bosch

Battery

Bosch Li-ION InTube 625 Wh, Capacity: 625 Wh, Location: Powertube

Display

Bosch Kiox 300 + LED Remote

Charger

Bosch quick charger 4 Ah

Accessories
Lights

Front: Herrmans MR9, 60 lux, Rear: Spanninga Pimento XE

Fenders

Curana Apollo 65, Aluminium

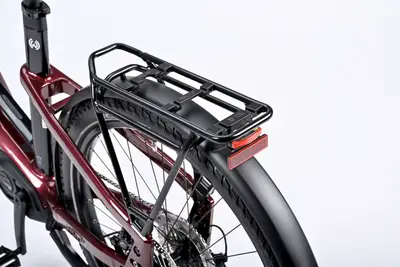

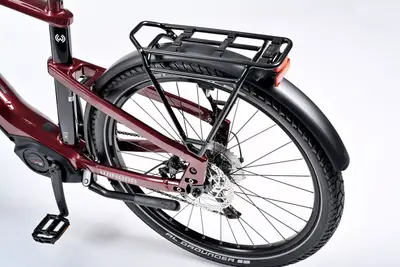

Racks

Winora MIK system carrier, HD

Lock

Abus Ring lock upgradable over Plus System
