Today’s Deals2025 Winora
Yakun X10
A 650b aluminum frame commuter e-bike with mid-range components and shimano deore hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,999($4,632)| Weight | 62.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | Suntour X1 |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | Shimano Deore Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Yakun model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'9" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

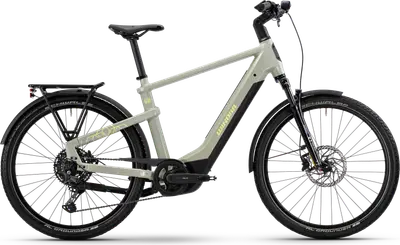

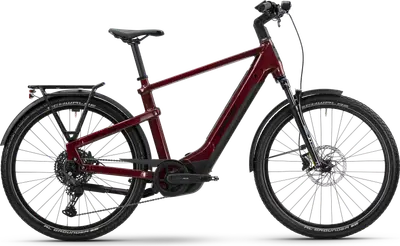

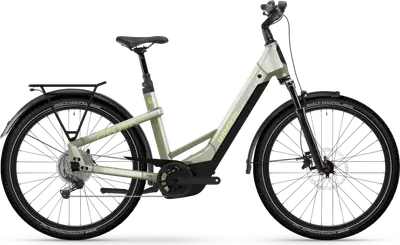

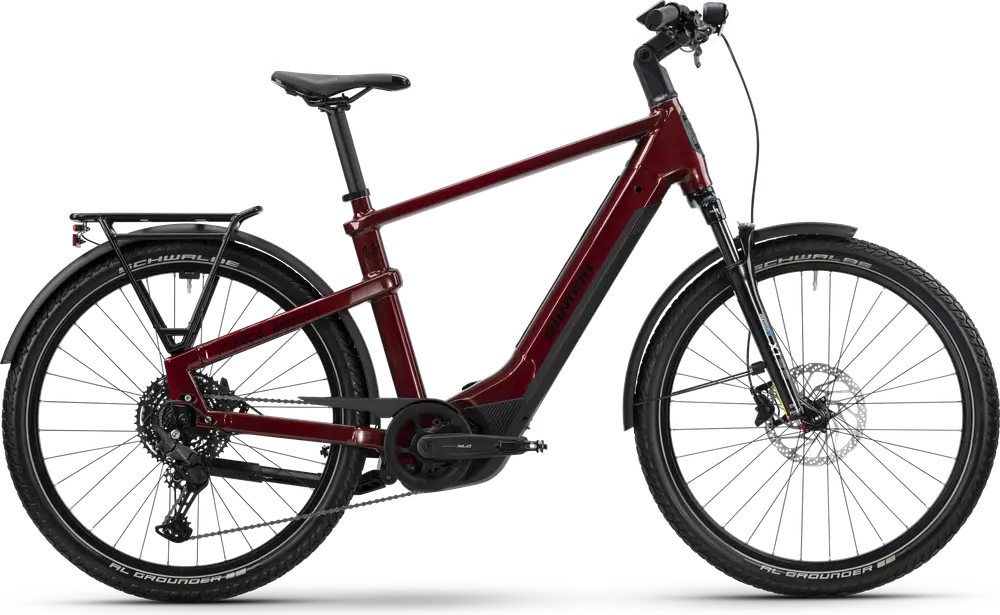

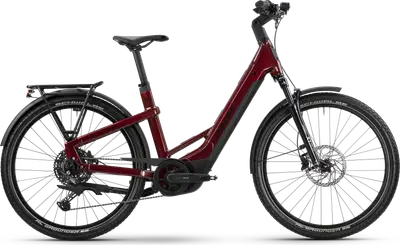

| Frame | aluminium 6061, disc brake Post Mount Colors: Ivory Green - Gloss; Warm Red - Gloss |
|---|---|
| Fork | SR Suntour SF23 X1 Boost LO-R, Travel: 80mm Travel: 80mm Spring Type: Coil |
| Bottom Bracket | integrated in the motor |
| Headset | Winora A-Head Tapered |
| Stem | XLC Adjustable A-Head adjustable, Dia. 31.8 mm |
| Handlebar | JD TR28AL, Dia. 31.8 mm, Rise: 19 mm 680 mm |
| Saddle | Selle Royal Vivo Ergo 1217HRN |
| Seatpost | JD SP20T.1A, Dia. 34.9 mm, L: 400 mm Type: Rigid |
| Pedals | VP Components 625 aluminium, non-slip |
| Grips | Herrmans DD42, Lockable Grips |

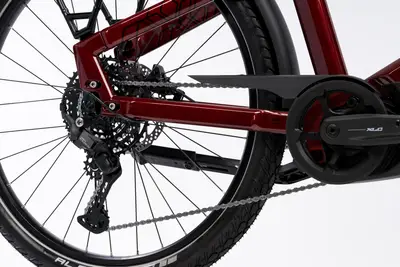

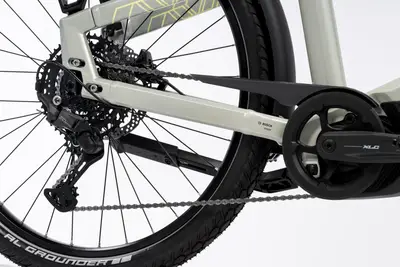

| Rear Derailleur | Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed |
|---|---|
| Crank | Miranda Virage |
| Shifters | Shimano CUES SL-U6000-10R, Rapidfire+, Trigger shifter |
| Cassette | MicroSHIFT X HG104-10 |
| Chain | Shimano CN-LG500 9-11s, LINKGLIDE |

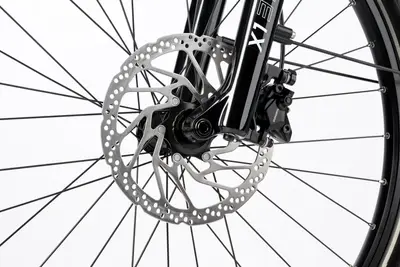

| Brakes | Front: Shimano Deore BR-MT410, 2 pistons, resin pad, 203 mm, Rear: Shimano Deore BR-MT410, 2 pistons, resin pad, 180 mm Type: Shimano Deore Hydraulic Disc |
| Rims | Schürmann YAK Disc 25-584 32H 8,5 mm Valve |
|---|---|
| Front Hub | Winora alu hub 15 x 100 mm |
| Rear Hub | Shimano HB-MT400 12 x 142 mm |
| Tires | Schwalbe AL Grounder Performance, DD RaceGuard, 60-584, reflex |
| Motor | Bosch Performance Line CX, 600W, 85Nm, 25km/h |
|---|---|
| Battery | Bosch PowerTube 800Wh |
| Display | Bosch Kiox 300 + LED Remote |
| Charger | Bosch Charger 4A 220-240V |
| Lights | Front: Trelock Skybeamer 300, 6-24V, Rear: Spanninga Pimento XE Brakelight |
|---|---|

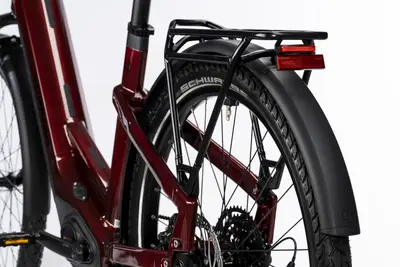

| Fenders | Curana Apollo 65, Aluminium |
| Racks | Winora MIK system carrier, HD |
