Today’s Deals2025 Winora

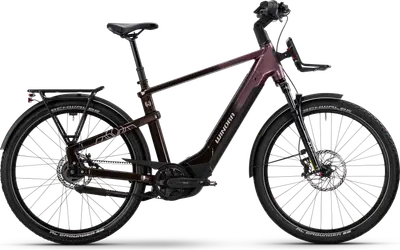

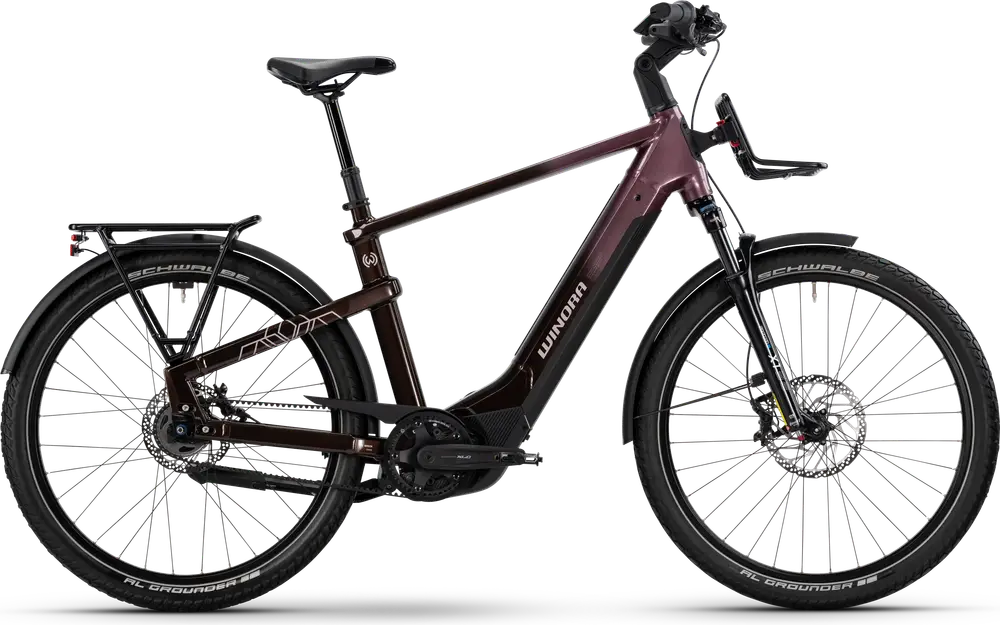

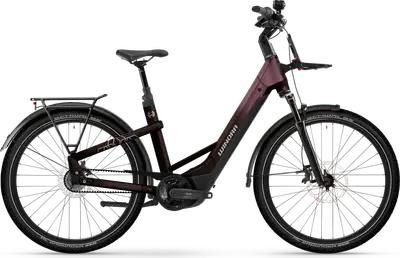

Yakun R5
A 650b aluminum frame commuter e-bike with high-end components and shimano xt hydraulic disc brakes.
Compare the full range
Manufacturer Price
€4,499($5,211)| Weight | 64.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | Suntour X1 |
| Wheels | 650b Aluminum |
| Drivetrain | Belt Drive, Internally Geared Hub |
| Groupset | Gates CDX, Nexus |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 600Wh |
| Brakes | Shimano XT Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Yakun model range
View Comparison5'4" – 5'9"
5'7" – 5'11"
5'10" – 6'2"
6'0" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | aluminium 6061, disc brake Post Mount Color: Red / Violet Red - Gloss |
|---|---|
| Fork | SR Suntour SF23 X1 Boost LO-R, Travel: 80mm Travel: 80mm Spring Type: Coil |
| Headset | Glory Wheel Semi-integrated ICR-51.9 ZS56/38 |
| Stem | Satori Adjustable TDS-673 Dia. 31.8mm, L: 90 mm |
| Handlebar | JD TR28AL, Dia. 31.8 mm, Rise: 19 mm 680 mm |
| Saddle | Selle Royal Vivo Ergo 1217HRN |
| Seatpost | Limotec A1H Dropper, Dia. 34.9 mm, Travel: 125 mm Type: Dropper |
| Pedals | VP Components 625 aluminium, non-slip |
| Grips | Herrmans DD42, Lockable Grips |
| Crank | XLC Kies ISIS Cranks + GATES CDX Chainring + Spider |
|---|---|
| Shifters | Shimano Nexus SL-C7000-5, Revoshift Lever, Gripshift |
| Cassette | Gates Carbon Drive CDX Sprocket, 5 Spline |
| Chain | Gates Carbon Drive Belt CDX, 125T |
| Chain Guide | Winora Belt Guard |
| Brakes | Front: Shimano Deore XT BR-M8120, 4 pistons, 203 mm, Rear: Shimano Deore XT BR-M8120, 4 pistons,180 mm Type: Shimano XT Hydraulic Disc |
| Rims | Schürmann YAK Disc 25-584 32H 8,5 mm Valve |
|---|---|
| Front Hub | Shimano HB-TC500-15-B 15x110 mm, 32H, CL |
| Rear Hub | Shimano Nexus SG-C7000-5D, 32H, CL, Internal Geared Hub |
| Tires | Schwalbe AL Grounder Performance, DD RaceGuard, 60-584, reflex |
| Motor | Bosch Performance Line CX, 600W, 85Nm, 25km/h |
|---|---|
| Battery | Bosch PowerTube 600Wh |
| Display | Bosch Kiox 300 + LED Remote |
| Charger | Bosch Charger 4A 220-240V |
| Lights | Front: Trelock Skybeamer 300, 6-24V, Rear: Spanninga Pimento XE Brakelight |
|---|---|
| Fenders | Curana Apollo 65 Aluminium extra matte black |
| Racks | Easylife System luggage carrier |
