Today’s Deals2025 Winora
Sinus AS

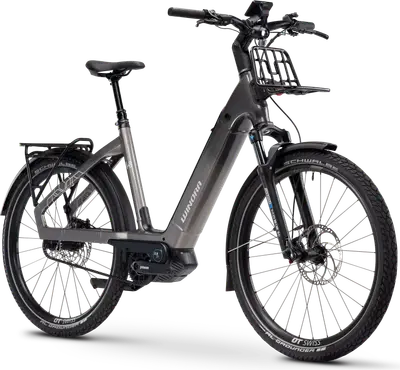

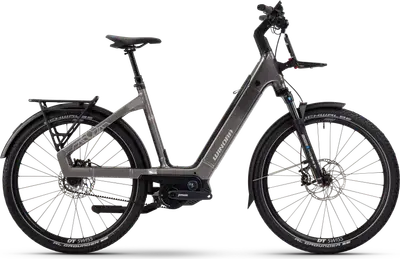

A 650b aluminum frame commuter e-bike with high-end components and magura hydraulic disc brakes.
Compare the full range
Manufacturer Price
€6,499($7,558)| Weight | 64.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | Suntour MOBIE |
| Wheels | 650b Aluminum |
| Drivetrain | Belt Drive, Internally Geared Hub |
| Groupset | Gates CDX |
| Motor | hub-drive |
| Battery | 800Wh |
| Brakes | Magura Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full SINUS model range
View Comparison5'2" – 5'7"
5'5" – 5'11"
5'9" – 6'2"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Low Aluminium Uni BB Standard: Pinion, Press Fit |
|---|---|
| Fork | Suntour Mobie 34 2CR 80 mm Travel: 80mm |
| Bottom Bracket | Pinion, press-fit |
| Headset | Cane Creek Semi-integrated Viscoset ZN40 ZS56 |
| Stem | Satori Adjustable TDS-673 Dia. 31.8mm, L: 90 mm |
| Handlebar | JD TR28AL, Dia. 31.8 mm, Rise: 19 mm |
| Saddle | Selle Royal Vivo |
| Seatpost | JD Dropperpost YSP28J, Dia. 34,9 mm, Travel: 100 mm Type: Dropper |
| Pedals | VP VPE-541P w. Reflector |

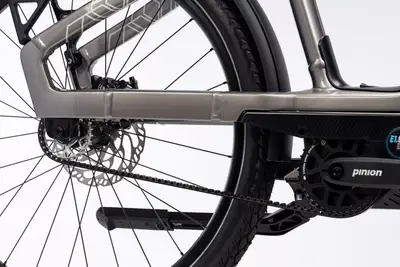

| Crank | Pinion Forge Boost Crankset Black + GATES CDX Chainring |
|---|---|
| Shifters | Triggershift Fix Remote Basic-eShift |
| Cassette | Gates Carbon Drive CDX Sprocket, 9 Spline |
| Chain | Gates Belt Carbon Drive Belt CDX, 120T |
| Brakes | Magura Hydraulic Disc brake MT C, 4 pistons, 203mm Type: Magura Hydraulic Disc |
| Brake Levers | Magura BL-MT C |
| Rims | DT Swiss HU 1900 Spline 27.5" 15x110 mm, Centerlock |
|---|---|
| Tires | Schwalbe AL Grounder Performance 60-584 |
| Motor | Pinion E1.9 MGU |
|---|---|
| Battery | Pinion Li-ION FIT Tubepack 800 Wh, Capacity: 800 Wh, Location: Powertube |
| Display | Pinion Comfort Fit + Remote eShift Fit |
| Charger | Pinion Fit 3-4,8A 48V |
| Lights | Front: Litemove AC-210U, 11-16V, Rear: Litemove integrated in the fender |
|---|---|
| Fenders | Curana Apollo Orbit 70 Aluminium |
| Racks | Easylife System luggage carrier |
| Lock | Abus upgradable over Plus System |
