Today’s Deals2026 Whyte

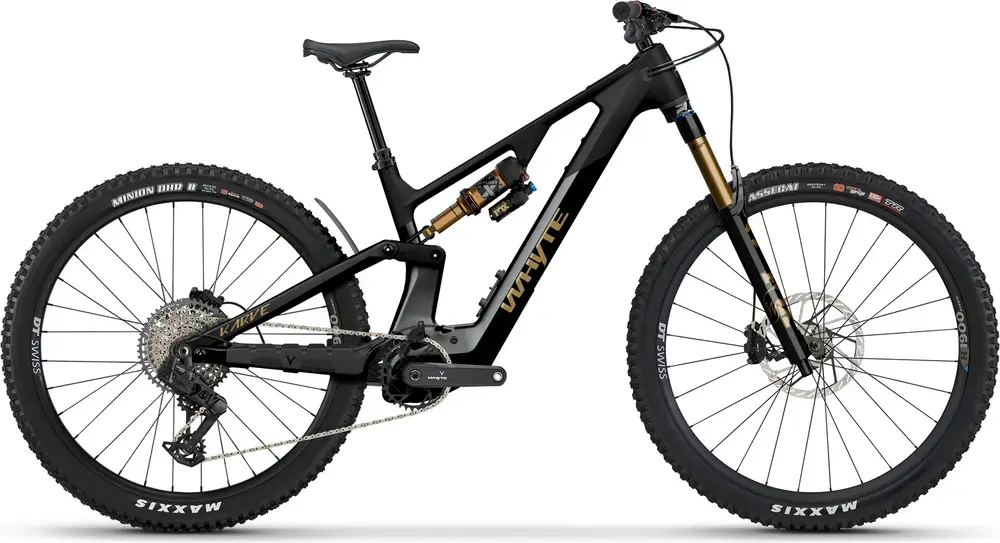

Karve RSX
A 29″ carbon frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
£7,799($10,460)| Frame | Carbon |
|---|---|
| Suspension | Full, 160mm front |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float DPS Factory |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 Electronic |
| Groupset | Eagle AXS, S1000 Eagle Transmission |
| Brakes | SRAM Maven Silver Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Karve model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, carbon rear triangle, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard |
|---|---|
| Fork | Fox Float 36 Factory, 160mm travel, 44mm offset with Grip X2 damper custom tuned for Whyte, tapered steerer, 110mm x 15mm Boost, E-thru axle Travel: 160mm Spring Type: Air |
| Shock | Fox Float X Factory DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte |
| Bottom Bracket | N/A |
| Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| Stem | Whyte, 35mm extension, 35mm bar bore |
| Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| Saddle | Whyte Custom |
| Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) Type: Dropper |
| Pedals | Fibre reinforced composite platform |
| Grips | Whyte Enduro lock-on |
| Rear Derailleur | SRAM S1000 AXS Eagle, 12 speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| Shifters | SRAM AXS rocker pod, right, MMX, 12 speed |
| Cassette | SRAM XS 1275, T-Type, 10-52T, 12 speed |
| Chain | SRAM GX T-Type, 12 speed |
| Brakes | SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt HS2 rotors Type: SRAM Maven Silver Hydraulic Disc |
| Brake Levers | SRAM Maven Silver |
| Rims | DT Swiss Hybrid H1900, 29" front and rear |
|---|---|
| Spokes | DT Swiss Elemental |
| Front Hub | DT Swiss Hybrid H1900, 110mm x 15mm Boost, six bolt |
| Rear Hub | DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt |
| Tires | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
First added May 30
Last updated June 4
