Today’s Deals2026 Whyte
Karve RS

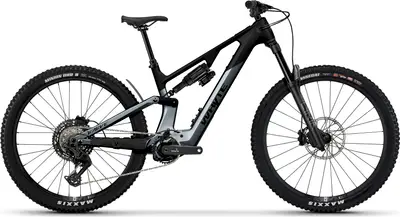

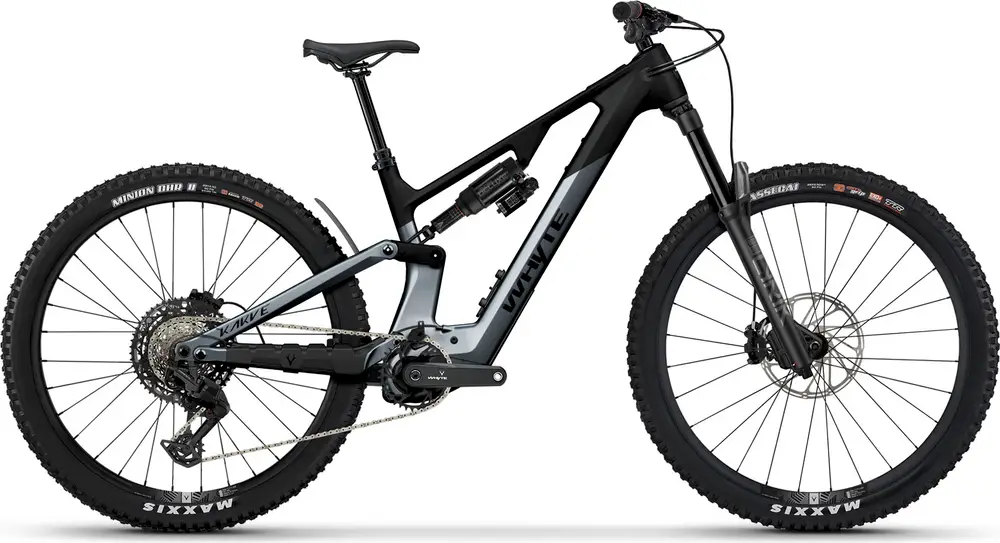

A 29″ carbon frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
£5,650($7,578)| Frame | Carbon |
|---|---|
| Suspension | Full, 160mm front |
| Fork | RockShox Lyrik Select |
| Shock | RockShox Super Deluxe Select |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Eagle 90 Transmission, Eagle 70 Transmission |
| Motor | hub-drive |
| Brakes | SRAM Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Karve model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
|---|---|
| Fork | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth Travel: 160mm Spring Type: Air |
| Shock | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| Bottom Bracket | N/A |
| Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| Stem | Whyte, 35mm extension, 35mm bar bore |
| Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| Saddle | Whyte Custom |
| Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) Type: Dropper |
| Pedals | Fibre reinforced composite platform |
| Grips | Whyte Enduro lock-on |
| Rear Derailleur | SRAM Eagle 90 T-Type mechanical, 12 speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| Shifters | SRAM Eagle 70, 12 speed |
| Cassette | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| Chain | SRAM Eagle 70, 12 speed |
| Brakes | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor Type: SRAM Hydraulic Disc |
| Brake Levers | SRAM Maven Base |
| Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear |
|---|---|
| Spokes | 14g stainless black, brass nipples |
| Front Hub | Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole |
| Rear Hub | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| Tires | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| Motor | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
|---|
