Tektro T3020 Clean Sweep Design, three finger comfort lever

Tektro T3020 hydraulic, 1.8mm thick 160mm diameter disc rotor

Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, post mount with single eyelets for mudguards

6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts, chain stay kick stand mount

Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole

Whyte one piece bar and stem: 50mm extension, 720mm width, 20mm rise, seven degree backsweep, four degree upsweep

No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed cartridge bearings and front entry for cables

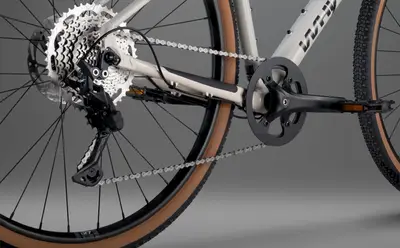

Shimano Deore 10 speed, Shadow design and direct attachment

Alloy, cup and cone, double sealed cartridge bearings, 32 hole

Whyte 6061 alloy, 20mm offset, 350mm, two bolt clamp

2.0mm, PG, black stainless, brass nipples

Maxxis Reaver Tanwall 700 x 45c, EXO wire bead

Light, comfortable and fastCombining efficiently smooth riding with real-world capability and dependability, RHeO 1 is your perfect partner for comfortably and confidently flowing freely along the streets and bike paths.
Highlights– Lightweight aluminum frame and fork for easy pedalling and carrying.– Easy to use 1x10 transmission gives you the gearing to ride everywhere easily.– Fast-rolling, grippy tyres and confidence-inspiring handling let you flow smoothly along even the roughest streets.– Reassuringly powerful and dependable all-weather hydraulic disc brakes.– Weighing just 12kg (size m) it's easy to lift and live with, too.– Ready to take a full set of mudguards, a bike rack, kick-stand and more.
Smoothes out the roughWhether café cruising, commuting, socialising or simply exploring the roads, lanes and bike paths less travelled, RHeO 1's confident handling and road-smoothing high-volume tyres will put you in control, everywhere. Weighing just 12kg (size M) it's easy to lift and live with, too.
RHeO 1 is also compatible with our RHeO aftermarket mudguards (available separately) to help keep you clean and dry, all year round.

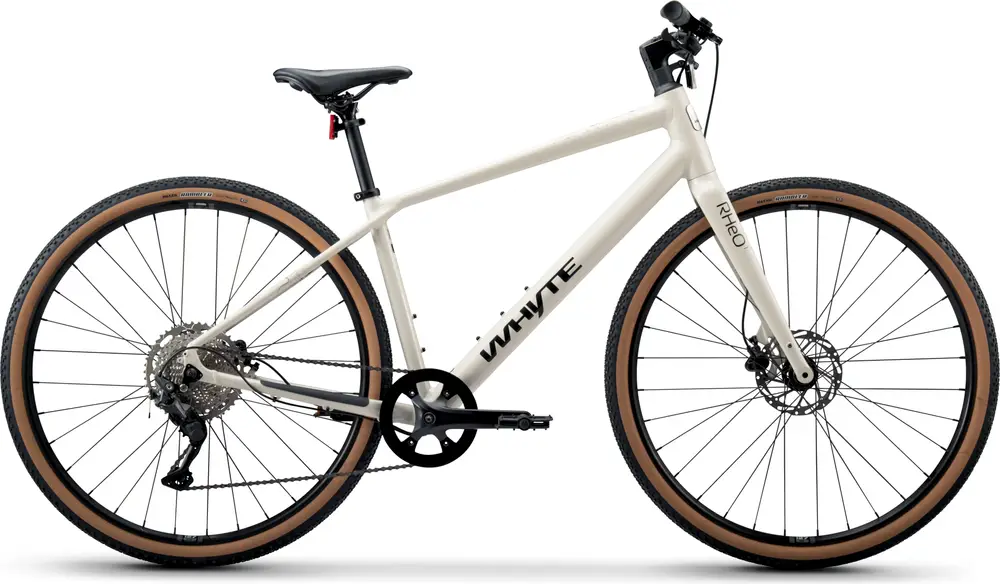

Whyte RHeO 1

RHeO 1

A 700c aluminum frame general urban bike with upper mid-range components and tektro hydraulic disc brakes.

Weight	26.5 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	1 × 10
Groupset	Deore
Brakes	Tektro Hydraulic Disc

Frame	6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts, chain stay kick stand mount BB Standard: BSA, Threaded
Fork	Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, post mount with single eyelets for mudguards
Shock	N/A
Bottom Bracket	Shimano BSA, square taper, 122.5mm
Headset	No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed cartridge bearings and front entry for cables
Stem	N/A
Handlebar	Whyte one piece bar and stem: 50mm extension, 720mm width, 20mm rise, seven degree backsweep, four degree upsweep
Saddle	Whyte Custom
Seatpost	Whyte 6061 alloy, 20mm offset, 350mm, two bolt clamp Type: Rigid
Pedals	Fibre reinforced composite platform
Grips	Whyte Custom dual density lock-on

Rear Derailleur	Shimano Deore 10 speed, Shadow design and direct attachment
Front Derailleur	N/A
Crank	Whyte alloy, 40T alloy chainring
Shifters	Shimano Deore 10 speed Rapidfire
Cassette	Shimano Deore 10 speed, 11-46T
Chain	Shimano Deore 10 speed
Brakes	Tektro T3020 hydraulic, 1.8mm thick 160mm diameter disc rotor Type: Tektro Hydraulic Disc
Brake Levers	Tektro T3020 Clean Sweep Design, three finger comfort lever

Rims	WTB STp I27 rims, 32 hole
Spokes	2.0mm, PG, black stainless, brass nipples
Front Hub	Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole
Rear Hub	Alloy, cup and cone, double sealed cartridge bearings, 32 hole
Tires	Maxxis Reaver Tanwall 700 x 45c, EXO wire bead

2024 WhyteRHeO 1

2024 Whyte
RHeO 1
