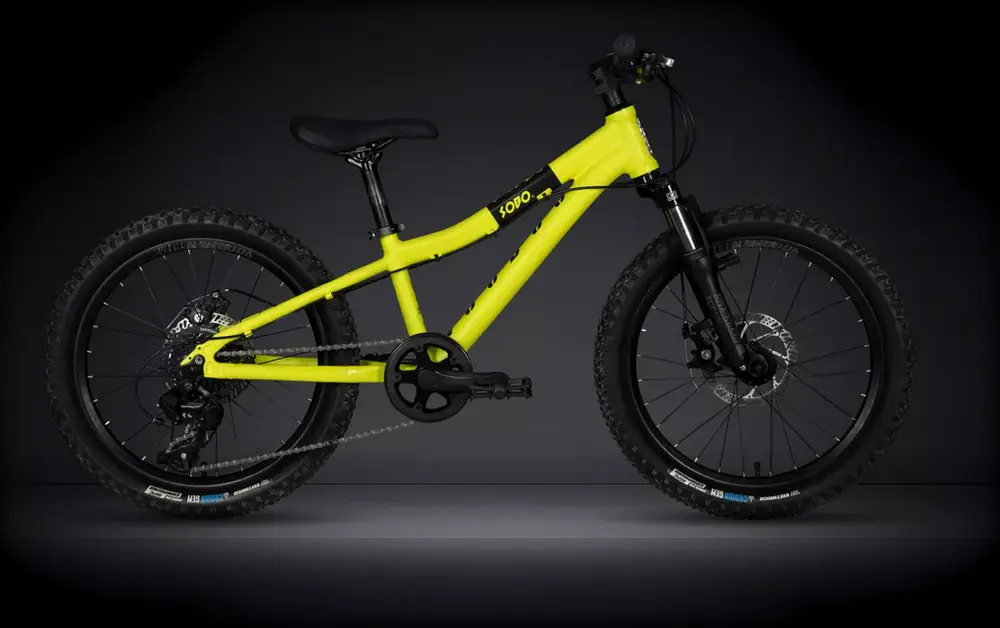

2026 Voodoo
SOBO 20″

A 20″ aluminum frame mountain youth bike with mid-range components and tektro mechanical disc brakes.

Manufacturer Price

$522

Where to Buy

$522

Voodoo logo Voodoo

SOBO 20″

Available: 20"

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

17 mph

SOBO 20″

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Price History

Geometry

Specs

Build

Frame	Sobo 20" hardtail MTB for 6-9 years old kids. Material: aluminium alloy. BSA bottom bracket. QR 135 mm dropout. Smooth welding BB Standard: BSA, Threaded

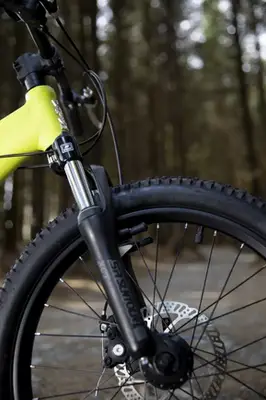

Fork	SR Suntour SF16-XCT-JR 20". 40 mm travel. QR100 Travel: 40mm Spring Type: Coil
Bottom Bracket	BSA
Headset	Threadless semi-integrated 1-1/8"
Stem	Aluminium alloy, ⌀25.4 mm, 40 mm, 3deg
Handlebar	Aluminium alloy, ⌀25.4 mm, 20 mm rise, 9deg, 600 mm width
Saddle	Voodoo JR. Steel rails
Seatpost	Aluminium alloy, ⌀27.2 mm. 250 mm length Type: Rigid
Pedals	FPD NW-303. One piece nylon+fiber body. Flat with retention pins
Grips	Velo, lock-on, black

Groupset

Rear Derailleur	Shimano Tourney RD-TX800
Front Derailleur	n/a
Crank	Forged alloy. 1x 32t. 114 mm crank length
Shifters	Shimano Altus SL-M315-8R
Cassette	Shimano Altus CS-HG31-8. 8 speed. 11-34t
Chain	KMC Z8.3

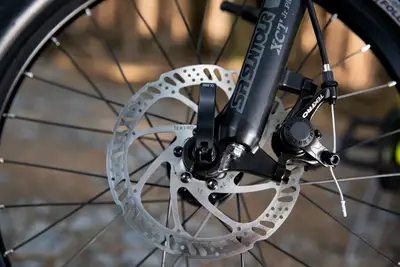

Brakes	Tektro MD-M280 Type: Tektro Mechanical Disc
Brake Levers	Tektro JL-510-RS

Wheels

Rims	20" (406 mm) aluminium alloy, double wall. 28H. 21 mm inner width, 20 mm height
Spokes	Steel
Front Hub	Aluminium alloy, 15x100, 28H, 6 bolts (F) Aluminium alloy, QR135, 28H, 6 bolts (R)
Rear Hub	Aluminium alloy, 15x100, 28H, 6 bolts (F) Aluminium alloy, QR135, 28H, 6 bolts (R)
Tires	WTB Ranger 20x2.25, foldable, 60TPI
Disc Rotors	Tektro. 160 mm (F & R)

Rider Notes

Riders Also Viewed

First added March 22

Last updated May 30
