Today’s Deals2026 Trek

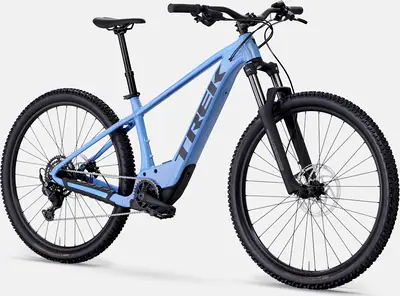

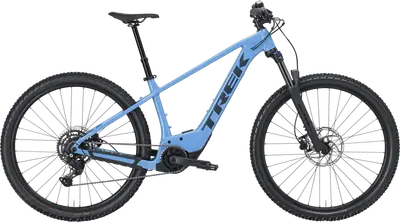

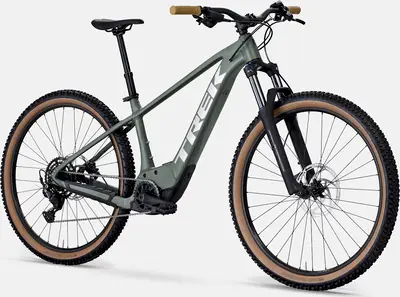

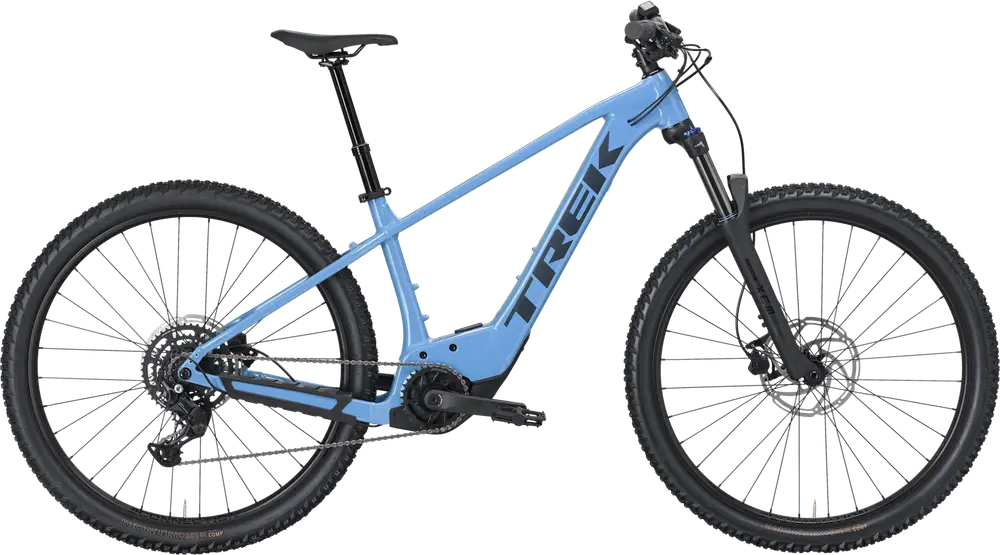

Marlin+ 6
A 27.5″ / 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range
Manufacturer Price
$3,199| Weight | 50.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | CUES |
| Motor | Bosch 600W 50Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Tektro Hydraulic Disc |
| Seatpost | Dropper |
4'9" – 5'2"
5'0" – 5'6"
5'4" – 5'11"
5'9" – 6'3"
6'1" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Jeff Barber
The Trek Marlin+ 8 electric hardtail mountain bike is singletrack-worthy and a fun commuter bike too.
Comfortable commuter and fun bike for light-duty trail riding
Capable, MTB-worthy parts spec
Modern look and feel
Entry-level fork isn’t very responsive
Battery isn’t easily removable
Tires are fast rolling but aren’t ideal for cornering or running lower pressures
Feb 2024 · Tyler Benedict
Trek introduces more affordable e-bike options with a Bosch-powered version of their trail (and commute) ready Marlin alloy hardtail.

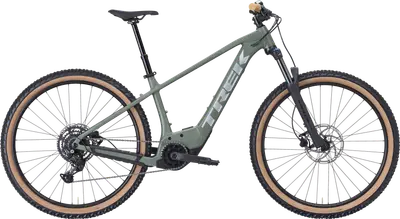

| Frame | Frame Marlin+, Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle - XS : Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle; S , M , L , XL : Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle Hanger Standard: UDH Tire Clearance: 2.6" Colors: Fjord Blue; Matte Keswick Green |
|---|---|

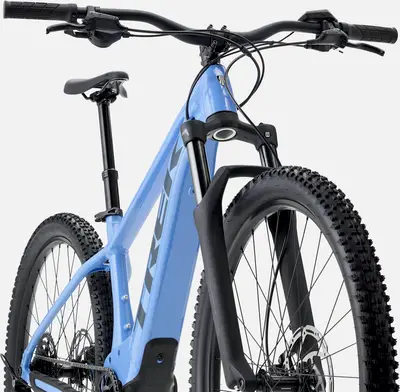

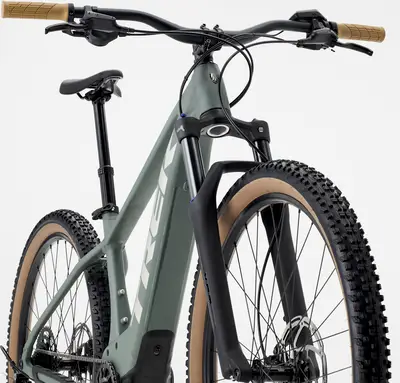

| Fork | SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel - XS : SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel; S , M , L , XL : SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel Travel: 100mm Spring Type: Air |
| Headset | Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length - XS , S : Bontrager Comp, 31.8mm, 7 degree, 35mm length; M , L : Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; XL : Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |

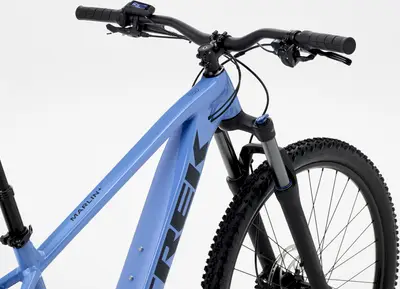

| Handlebar | Bontrager Approved Lowriser, 31.8x720mm, 15mm Rise, 9D Bend/4D Upsweep, Black - XS , S : Bontrager alloy, 31.8mm, 15mm rise, 720mm width; M , L , XL : Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length - XS , S : TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length; M , L : TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length; XL : TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length Type: Dropper |
| Pedals | Nylon platform |
| Grips | Trek Line Comp, nylon lock-on |

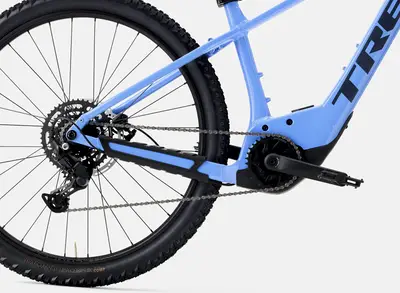

| Rear Derailleur | Shimano CUES U4000 |
|---|---|
| Crank | FSA CK-220, 165mm length |
| Shifters | Shimano U4000, 9 speed |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Brakes | Tektro HD-M275 hydraulic disc Type: Tektro Hydraulic Disc |
| Rims | Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
|---|---|
| Front Hub | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Rear Hub | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Tires | Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40'' - XS , S : Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40''; XS , S : Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''; M , L , XL : Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''; M , L , XL : Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40'' |
| Disc Rotors | Tektro, centerlock, 203mm |
| Motor | Bosch Active Line Plus |
|---|---|
| Battery | Bosch CompactTube 400Wh |
| Display | Bosch Purion 200 |
| Charger | Bosch standard 2A, 110V, smart system |
