Today’s Deals2026 Trek

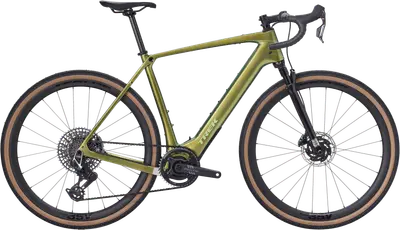

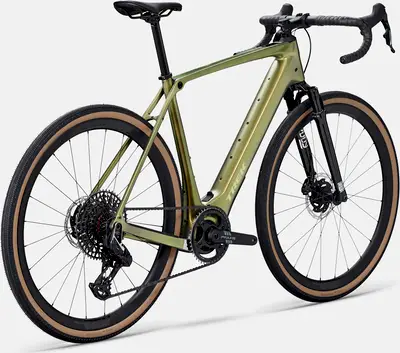

Checkpoint+ SL 7 AXS
A carbon frame gravel e-bike with ultra high-end components and sram hydraulic disc brakes.
Compare the full range
Manufacturer Price
$7,999| Weight | 31.0 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Hardtail, 40mm |
| Fork | RockShox Rudy XPLR |
| Wheels | 700c Carbon |
| Drivetrain | 1 × 12 Electronic |
| Groupset | X0 Eagle Transmission, Force eTap |
| Motor | TQ 250W 60Nm mid-drive |
| Battery | TQ 360Wh |
| Brakes | SRAM Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Checkpoint+ SL model range
View Comparison5'2" – 5'5"
5'4" – 5'11"
5'9" – 6'3"
6'1" – 6'5"
6'3" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2025 · Jeremy Benson
Trek adds the TQ-HPR60 motor and a 360 Wh battery to the Checkpoint SL to create its first e-gravel bike, the Checkpoint+ SL.
| Frame | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle Hanger Standard: UDH Tire Clearance: 50c Color: Chameleon Green |
|---|---|
| Fork | RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel Travel: 40mm Spring Type: Air |
| Stem | Bontrager Pro Stem, 31.8mm, Blendr compatible, 7 degree, 80mm length - S, M: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; ML, L: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; XL: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Handlebar | Bontrager GR Pro Gravel Handlebar 40/46 - S: Bontrager Pro Gravel, 40cm width; M, ML: Bontrager Pro Gravel, 42cm width; L: Bontrager Pro Gravel, 44cm width; XL: Bontrager Pro Gravel, 46cm width |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length Type: Rigid |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
|---|---|
| Crank | Praxis Alloy, ISIS, 165mm Length - S: Praxis Alloy, 165mm length; M, ML: Praxis Alloy, 170mm length; L, XL: Praxis Alloy, 172.5mm length |
| Shifters | SRAM Force AXS E1 |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Brakes | SRAM Paceline X, rounded, centerlock, 160mm Type: SRAM Hydraulic Disc |
| Rims | Front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
|---|---|
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Disc Rotors | SRAM Paceline X, rounded, centerlock, 160mm |

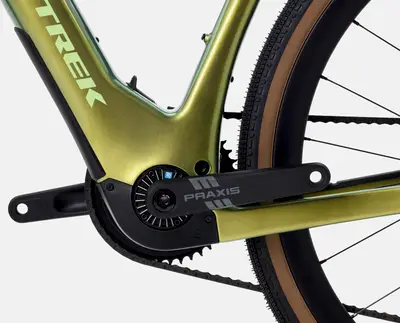

| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
|---|---|
| Battery | TQ 360Wh |
| Remote | TQ color LED display with Bluetooth & ANT+ connectivity |
| Charger | TQ 4A charger |
