Today’s Deals2026 Trek

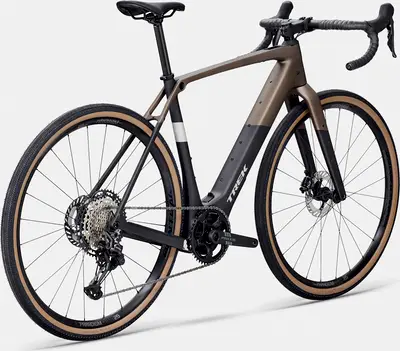

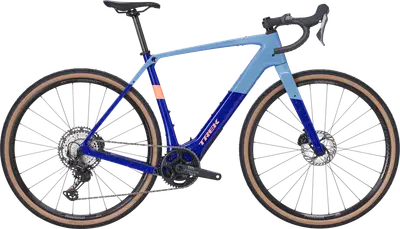

Checkpoint+ SL 5
A carbon frame gravel e-bike with high-end components and shimano grx 800 hydraulic disc brakes.
Compare the full range
Manufacturer Price
$5,999| Weight | 30.4 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GRX 800 |
| Motor | TQ 250W 60Nm mid-drive |
| Battery | TQ 360Wh |
| Brakes | Shimano GRX 800 Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Checkpoint+ SL model range
View Comparison4'8" – 5'3"
5'1" – 5'5"
5'4" – 5'11"
5'9" – 6'3"
6'1" – 6'5"
6'3" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2025 · Jeremy Benson
Trek adds the TQ-HPR60 motor and a 360 Wh battery to the Checkpoint SL to create its first e-gravel bike, the Checkpoint+ SL.
| Frame | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle Hanger Standard: UDH Tire Clearance: 50c Colors: Fjord Blue / Cobalt Blue; Matte Bronze Age / Dark Web |
|---|---|
| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Stem | Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 70mm length - XS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; S, M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; ML, L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Handlebar | Bontrager GR Elite IsoZone Gravel Handlebar 40/46cm - XS, S: Bontrager Elite Gravel, alloy, 40cm width; M, ML: Bontrager Elite Gravel, alloy, 42cm width; L: Bontrager Elite Gravel, alloy, 44cm width; XL: Bontrager Elite Gravel, alloy, 46cm width |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length Type: Rigid |
| Rear Derailleur | Shimano GRX RX822, 51T max cog |
|---|---|
| Crank | Praxis Alloy, ISIS, 165mm Length - XS, S: Praxis Alloy, 165mm length; M, ML: Praxis Alloy, 170mm length; L, XL: Praxis Alloy, 172.5mm length |
| Shifters | Shimano GRX RX820, 12 speed |
| Cassette | Shimano XT M8200, 10-51, 12 speed (Visit si.shimano.com for compatibility, manuals and exploded views) - XS, S, M, ML, L, XL: Shimano XT M8200, 10-51, 12 speed; XS, S, M, ML, L, XL: Shimano XT M8100, 10-51, 12 speed |
| Chain | Shimano Ultegra/XT M8100 |
| Brakes | Shimano GRX RX820, 12 speed Type: Shimano GRX 800 Hydraulic Disc |
| Brake Levers | Shimano GRX RX820, 12 speed |
| Rims | Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle |
|---|---|
| Rear Hub | Bontrager alloy, sealed bearing, CentreLock, Rapid Drive 108, 142x12, 12 mm thru-axle |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Disc Rotors | Shimano CL800, centerlock, 160mm |

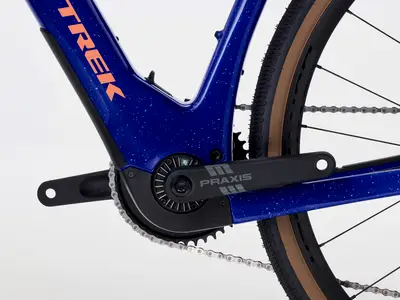

| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
|---|---|
| Battery | TQ 360Wh |
| Remote | TQ color LED display with Bluetooth & ANT+ connectivity |
| Display | TQ LED display with Bluetooth & ANT+ connectivity |
| Charger | TQ 4A charger |
