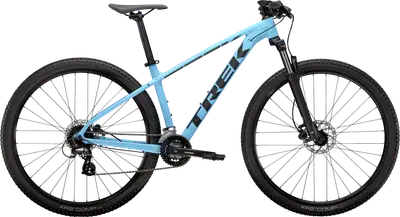

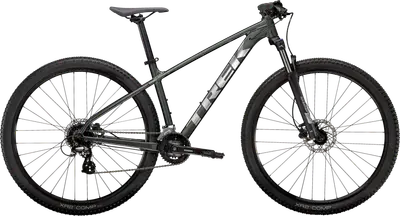

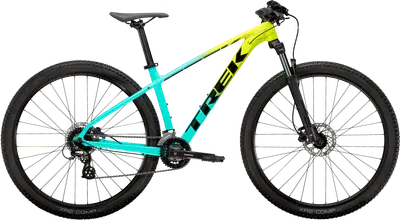

2023 Trek
Marlin 5 Gen 2
A 27.5″ / 26″ / 29″ aluminum frame hardtail crosscountry bike with modest components.
Compare the full range
Mentioned in Which Trek Marlin is Best for You?
Manufacturer Price
$599| Weight | 30.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 27.5″ / 26″ / 29″ Aluminum |
| Drivetrain | 2 × 8 |
| Groupset | Altus, Shimano |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Marlin model range
View Comparison4'9" – 5'2"
5'1" – 5'6"
5'4" – 5'10"
5'8" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
6'4" – 6'8"
Sep 2023
Not only is the Trek Marlin one of the most searched bikes on our website, it's also Trek's best selling mountain bike! And for good ...
Apr 2024 · James Huang
Trek’s entry-level aluminum hardtail mountain bike.
Fantastic frame geometry
Excellent shifting
Good tires
Looks great
Generous tire clearance
Easy-to-live-with semi-internal routing
Sort of a rear thru-axle.
Mega-heavy fork with minimal adjustability
Tubeless costs extra
Limited upgrade potential.
May 2023
Riders can expect updated geometry, a new frame, increased tire clearance and a rear axle system that "enhances stability," Trek said.
Feb 2023 · Oscar Huckle
Can the Marlin compete with the bigger players?
Lots of frame sizes
Excellent tyre choice
Dropper seatpost
Upgrade potential
Roomier seated position would be preferred
Quick-release rather than thru-axle
Rattly internal cable routing

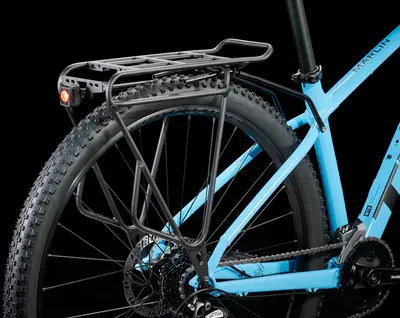

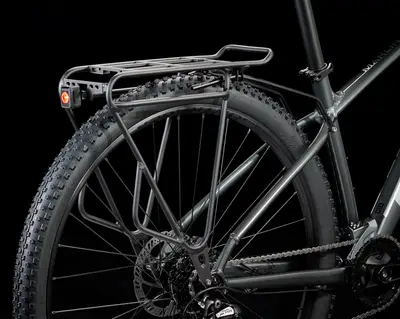

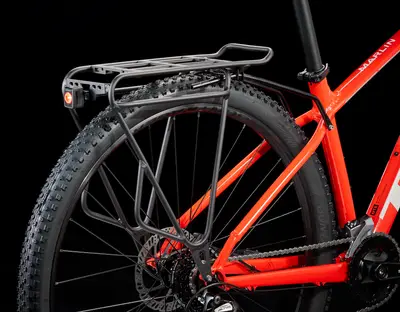

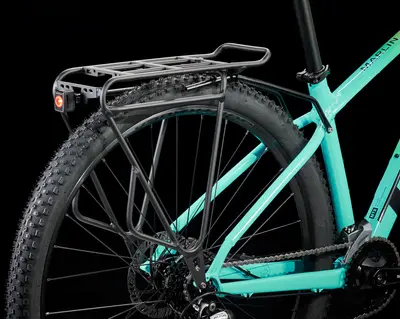

| Frame | Size: XXS, XS, S, Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR; Size: M, ML, L, XL, XXL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR Tire Clearance: 2.2" Colors: Lithium Grey; Volt to Miami Green Fade; Azure |
|---|---|
| Fork | Size: XXS, SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travel; Size: XS, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel Travel: 100mm Spring Type: Coil |
| Bottom Bracket | Sealed cartridge, 73mm |
| Headset | Semi-integrated, 1-1/8'' |
| Stem | Size: XXS, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: XS, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar | Size: XXS, XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length; Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid |

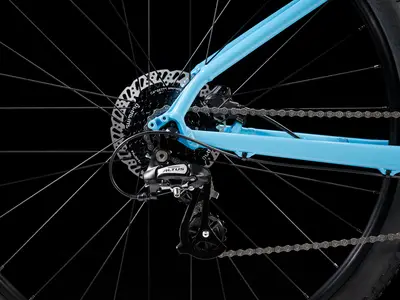

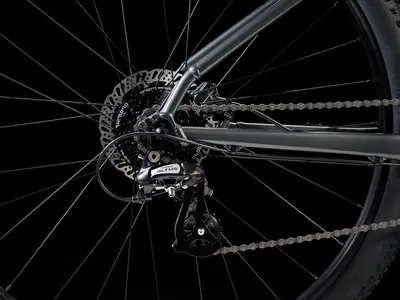

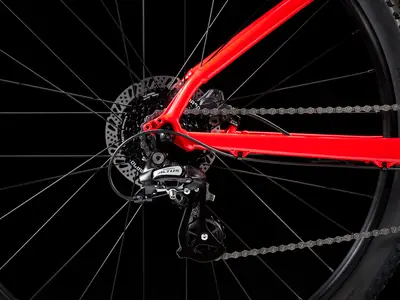

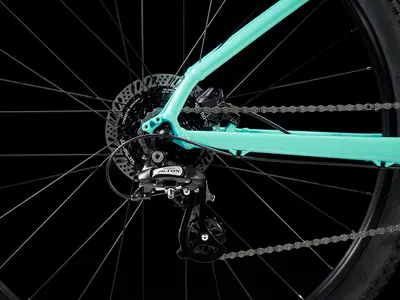

| Rear Derailleur | Shimano Altus M310 |
|---|---|
| Front Derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull |
| Crank | Size: XXS, Prowheel TM-CY10, 36/22, 160mm length; Size: XS, S, M, Shimano M315, 36/22, 170mm length; Size: ML, L, XL, XXL, Shimano M315, 36/22, 175mm length |
| Shifters | Size: XXS, XS, S, M, ML, L, XL, XXL, Shimano M315, 2 speed; Size: XXS, XS, S, M, ML, L, XL, XXL, Shimano M315, 8 speed |
| Cassette | Shimano HG200, 12-32, 8 speed |
| Chain | KMC Z8.3, 8 speed |

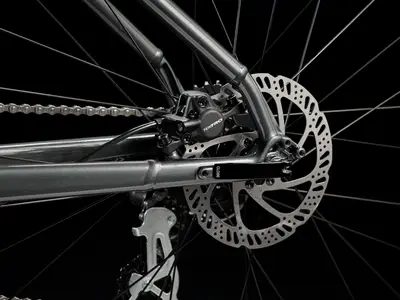

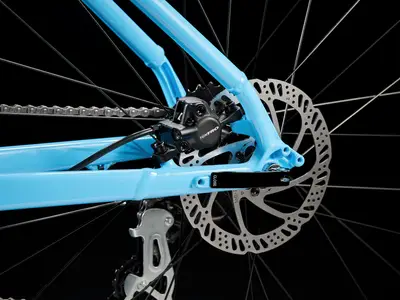

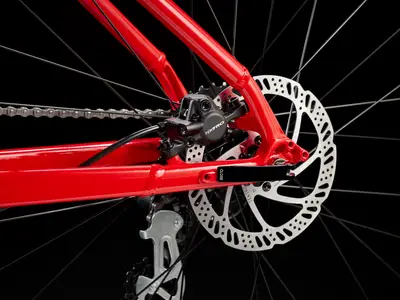

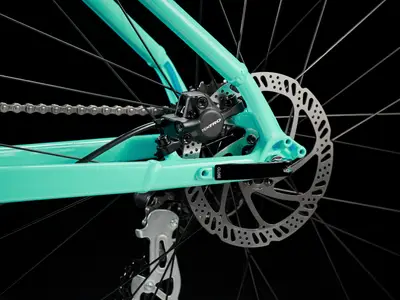

| Brakes | Tektro HD-M275 hydraulic disc, 180mm rotor Type: Hydraulic Disc |
| Rims | Size: XS, S, Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black; Size: M, ML, L, XL, XXL, Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|---|---|
| Front Hub | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Tires | Size: XXS, Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''; Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, ML, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' |
Last updated April 20
