2022 Trek Marlin 7

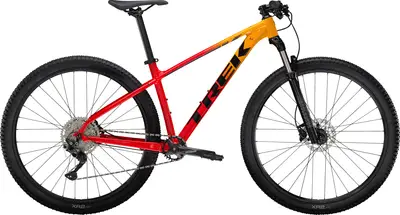

A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with upper mid-range components. Compare the full range

2022 Trek Marlin 7
MSRP$1,029
Spec Level
Weight29.7 lbs
SuspensionHardtail
Travel100mm front
FrameAluminum
ForkRockShox Judy
Wheels27.5″ / 29″ Aluminum
Drivetrain1 × 10
GroupsetDeore, FSA
BrakesHydraulic Disc
Where to Buy
Similar Bikes Available Now
Compare With Similar Bikes

View more similar bikes »


Gearing

1 × 10 — 10 speed

Marlin 7

22 mph

Similar Bikes

27 mph

The Marlin 7 is easier to ride up hills than similar bikes.

The Marlin 7 won‘t keep up with similar bikes while riding downhill or sprinting.


Estimated Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more »

Spec level →$0$200$400$600$800$1,000
This bike
Other crosscountry bikes

Reviews
Bicycling
The Trek Marlin 7 Has The Heart Of A Race Bike

This cheap mountain bike is the perfect gateway drug to your next (trail riding) addiction.

  • Wide range of gears with 2x9 drivetrain

  • Wheels and tires aren’t tubeless-ready

Dec 2019Read Review

MBR
Trek Marlin 6 review - MBR

Alan Muldoon

The first of two 29er to make it into the sub 500 category, the Trek Marlin 6 certainly didn't behave like a fish out of water.

  • Top-rate frame quality, available in seven sizes Independent Shimano shifters

  • Cable and chain rattle. Rear tyre is too skinny

Jun 2019Read Review


Geometry

Sizing
13.5"

4'9" – 5'2"

15.5"

5'0" – 5'6"

17.5"

5'4" – 5'9"

18.5"

5'7" – 6'0"

19.5"

5'10" – 6'3"

21.5"

6'1" – 6'6"

23"

6'4" – 6'8"


Specs
Build
Frame

Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

BB StandardBSA, 73mm, Threaded

Tire Clearance2.2"

ColorsMatte Nautical Navy / Matte Anthracite; Marigold to Radioactive Red Fade; Gloss Miami Green

Fork

Size: XS, RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel; Size: S, RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel; Size: M, ML, L, XL, XXL, RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Bottom Bracket

FSA, 73mm, threaded cartridge, 122.5mm spindle

Headset

Semi-integrated, 1-1/8''

Stem

Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length

Handlebar

Size: XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width

Saddle

Bontrager Arvada, steel rails, 138mm width

Seatpost

Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length

Grips

Bontrager XR Trail Comp, nylon lock-on

Groupset
Rear Derailleur

Shimano Deore M5120, long cage

Crank

Size: XS, S, M, FSA Alpha Drive, 28T steel ring, Boost, 170mm length; Size: ML, L, XL, XXL, FSA Alpha Drive, 28T steel ring, Boost, 175mm length

Shifters

Shimano Deore M4100, 10 speed

Cassette

Shimano Deore M4100, 11-46, 10 speed

Chain

KMC X10, 10 speed

Brakes

Shimano MT200 hydraulic disc

Wheels
Rims

Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve

Spokes

14g stainless steel

Front Hub

Formula DC-20, alloy, 6-bolt, 5x100mm QR

Rear Hub

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Tires

Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, ML, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''

Disk Rotors

Size: XS, S, M, ML, L, XL, XXL, Shimano RT26, 6-bolt,160mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180mm
