2021 Trek

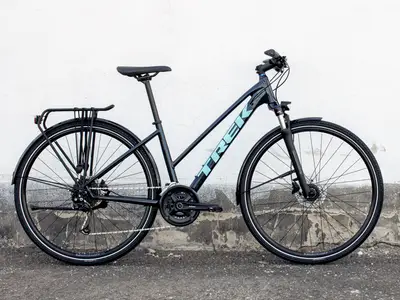

Dual Sport 3 Equipped Stagger
A 700c aluminum frame commuter bike with mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
£825($1,045)| Weight | 34.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour NEX |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 9 |
| Groupset | Alivio, Acera |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Dual Sport model range
View Comparison5'8" – 6'2"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | 200 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 130x5 mm QR Tire Clearance: 45c Color: Nautical Navy |
|---|---|
| Fork | SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel Travel: 63mm Spring Type: Coil |
| Stem | Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
| Handlebar | Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width |
| Saddle | Bontrager H1 |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length Type: Rigid |
| Pedals | Wellgo M141, resin body, alloy cage |
| Grips | Bontrager XR Endurance Elite, lock-on, ergonomic |

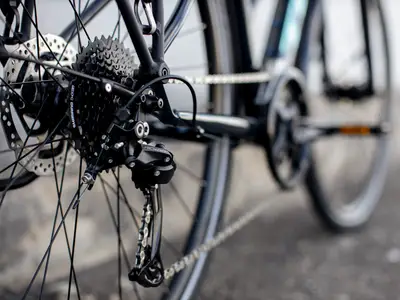

| Rear Derailleur | Shimano Alivio M3100, long cage |
|---|---|
| Front Derailleur | Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull |
| Crank | Size: M, Shimano MT210, 46/30, chain guard, 170 mm length; Size: L, XL, Shimano MT210, 46/30, chain guard, 175 mm length |
| Shifters | Size: M, L, XL, Shimano Alivio M3100, 9-speed; Size: M, L, XL, Shimano Acera M3000, 2 -speed |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |

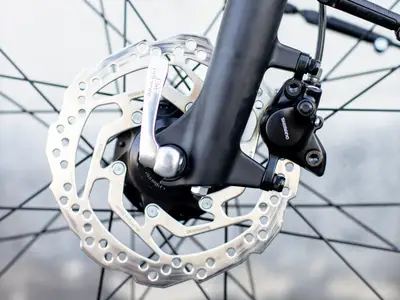

| Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
| Rims | Bontrager Tubeless Ready Disc, 32-hole, Presta valve |
|---|---|
| Spokes | 14 g stainless steel |
| Front Hub | Shimano 3.0 watt dynamo hub |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Tires | Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm |
| Disc Rotors | Size: M, L, XL, Shimano RT26, 6-bolt,160 mm; Size: M, L, XL, Shimano RT10, CenterLock, 160 mm |
| Lights | Size: M, L, XL, Herrmans H-Trace ECO dynamo LED; Size: M, L, XL, Herrmans FL-14, 100 Lumen LED, 6 V AC; Size: M, L, XL, Herrmans MR4, 100 lumen LED |
|---|---|
| Fenders | Size: M, L, XL, SKS plastic, rear; Size: M, L, XL, SKS plastic, front; Size: M, L, XL, Eurofender Snello |
| Racks | Alloy rear rack |
Last updated May 11
