Smoked Steel

Shimano 105, BR-R7170, Hydraulic disc brake, Flatmount standard

Shimano 105, CS-R7100, 12-speed, Combination: 11-12-13-14-15-17-19-21-24-27-30-34 T

Shimano 105, FC-R7100, 50-34 T, BB type: Pressfit BB86 / Hollowtech II

STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: flatmount disc

Aluminium SL 7005 TB, O.L.D.: 142 mm, Brake: flatmount disc, BB: Pressfit BB86, Front derailleur mount: braze-on, Cable routing: internal

Scorpo Aero, Drop: 130 mm, Reach: 80 mm, Clamp: 31.8 mm

FSA No. 80 CR II 1 1/8"-1 1/2", Upper bearing cup: IS52/28.6, Lower bearing cup: IS52/40

Shimano 105 Shadow, RD-R7100-D, 12-speed, Direct Mount, Total capacity: 41 T

DT Swiss P 1800 Spline, Axle: QR12x100 mm

Scorpo Carbon, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

FSA SMR, Handlebar clamp: 31.8 mm, Angle: -6°, Smart Cable Routing

Continental Grand Prix SL, Tire size: 28-622, Foldable, PolyX Breaker

The genes are legendary - the design is state-of-the-art. The logical evolution of our renowned Aspin aluminium frame road bike is the Aspin Disc. The bike impresses with its sporty and comfortable all-round geometry, which does not become uncomfortable even after long hours in the saddle and at the same time promises a lot of agility for fast laps. To enable maximum integration and minimise air resistance, the frame is designed for internal cable routing. The Aspin Disc complete bike comes with Shimano's refined, mechanically shifted 105 12-speed component group with 50/34-tooth compact crank and 11-34-tooth cassette - so that you are always in the right gear on the mountain and on the flat. The equipment also includes the proven DT Swiss P 1800 Spline wheels with 28 millimetre wide Continental Grand Prix tyres for increased comfort. In addition to the complete bike, the Aspin Disc can also be customised via our STEVENS custom bike configurator according to personal preferences and with the highest quality components.

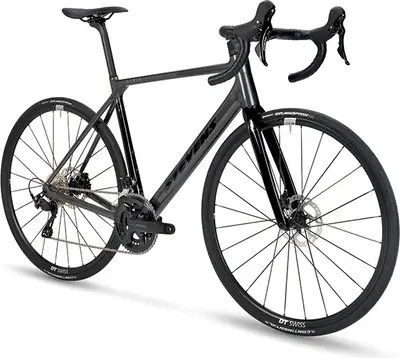

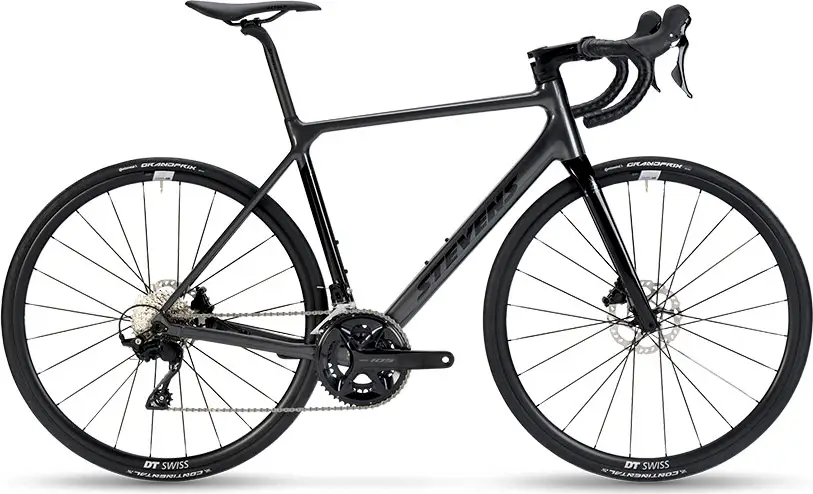

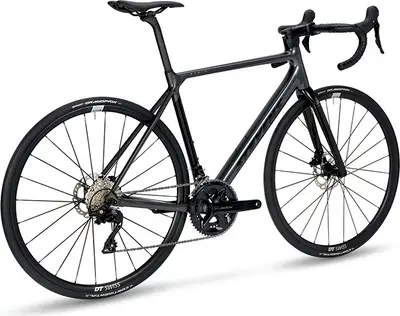

Stevens Aspin

48cm

51cm

54cm

56cm

58cm

61cm

64cm

An aluminum frame general road bike with upper mid-range components and shimano 105 hydraulic disc brakes.

Weight	20.3 lbs
Frame	Aluminum
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 12
Groupset	105
Brakes	Shimano 105 Hydraulic Disc

Frame	Aluminium SL 7005 TB, O.L.D.: 142 mm, Brake: flatmount disc, BB: Pressfit BB86, Front derailleur mount: braze-on, Cable routing: internal BB Standard: BB86/BB92, Press Fit Color: Smoked Steel
Fork	STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: flatmount disc
Bottom Bracket	BB86/BB92, press-fit
Headset	FSA No. 80 CR II 1 1/8"-1 1/2", Upper bearing cup: IS52/28.6, Lower bearing cup: IS52/40
Stem	FSA SMR, Handlebar clamp: 31.8 mm, Angle: -6°, Smart Cable Routing
Handlebar	Scorpo Aero, Drop: 130 mm, Reach: 80 mm, Clamp: 31.8 mm
Saddle	Oxygen Triton 2.0
Seatpost	Scorpo Carbon, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid

Rear Derailleur	Shimano 105 Shadow, RD-R7100-D, 12-speed, Direct Mount, Total capacity: 41 T
Front Derailleur	Shimano 105, FD-R7100-F, 2-speed
Crank	Shimano 105, FC-R7100, 50-34 T, BB type: Pressfit BB86 / Hollowtech II
Shifters	Shimano 105, ST-R7120-L, 2-speed
Cassette	Shimano 105, CS-R7100, 12-speed, Combination: 11-12-13-14-15-17-19-21-24-27-30-34 T
Chain	Shimano CN-M6100
Brakes	Shimano 105, BR-R7170, Hydraulic disc brake, Flatmount standard Type: Shimano 105 Hydraulic Disc

Rims	DT Swiss P 1800 Spline, Axle: QR12x100 mm
Tires	Continental Grand Prix SL, Tire size: 28-622, Foldable, PolyX Breaker

2026 StevensAspin

2026 Stevens
Aspin
