Olive

Shimano CS-LG300-9, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T

Shimano CUES U4000, Shimano FC-U4010-2, 46-30 T, 2-Piece

SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts

Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts

Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm

STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Shimano CUES U4000 Shadow, RD-U3020-SGS, 9-speed, Total capacity: 41 T

Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°

Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard

The 5X comes across as sleek yet comfortable. With our lightweight, triple end-reinforced aluminium frame and the finely responsive suspension fork. The new Shimano CUES Linkglide groupset for smooth gear changes. The Schwalbe tyres whiz smoothly over any solid surface – and nothing can stop them except the powerful hydraulic brakes with their shiny discs.

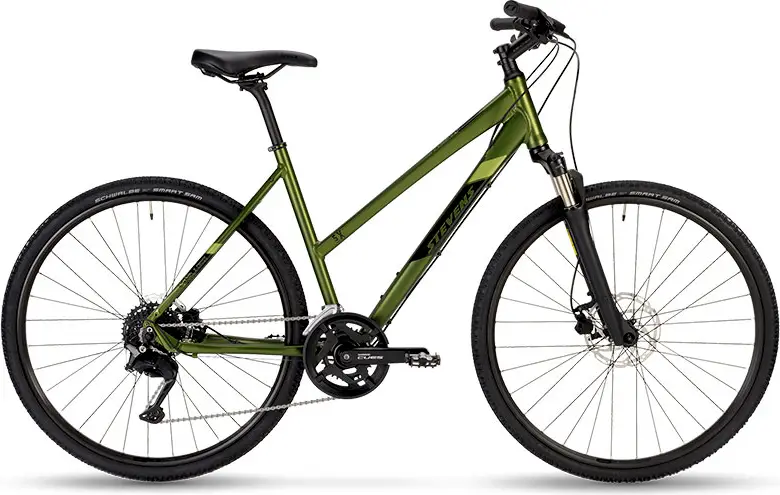

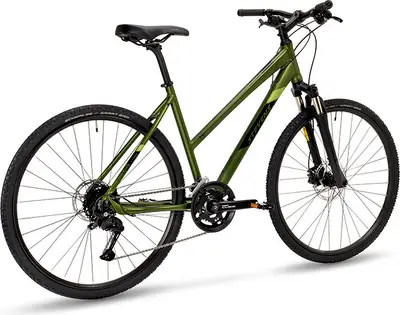

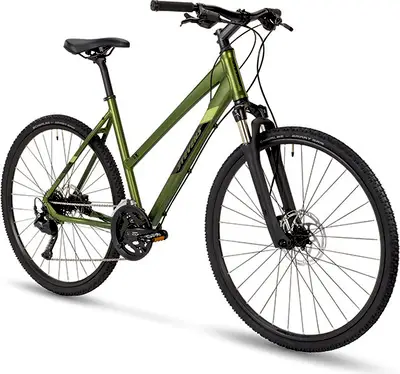

Stevens 5X LT

46cm

50cm

54cm

A 700c aluminum frame hybrid bike with upper mid-range components and tektro hydraulic disc brakes.

Weight	30.6 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Wheels	700c Aluminum
Drivetrain	2 × 9
Groupset	CUES
Brakes	Tektro Hydraulic Disc

Frame	Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts BB Standard: BSA, 73mm, Threaded Color: Olive
Fork	SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts Travel: 63mm Spring Type: Coil
Bottom Bracket	BSA, 73mm, threaded
Headset	STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Saddle	Oxygen Lynx
Seatpost	Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	ATB Pro Reflex

Rear Derailleur	Shimano CUES U4000 Shadow, RD-U3020-SGS, 9-speed, Total capacity: 41 T
Front Derailleur	Shimano CUES U4000, FD-U4000-L, 2-speed
Crank	Shimano CUES U4000, Shimano FC-U4010-2, 46-30 T, 2-Piece
Shifters	Shimano CUES U4000, SL-U4000-L, 2-speed
Cassette	Shimano CS-LG300-9, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Chain	Shimano CN-LG500, LINKGLIDE
Brakes	Tektro HD-T275, Hydraulic disc brake Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-T275, 3 finger

Rims	Oxygen RM-M19, ETRTO: 19 x 622
Front Hub	Formula CL-51, Axle: QR5x100 mm
Rear Hub	Formula CL-52, Axle: QR5x135 mm
Tires	Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard

2026 Stevens5X LT

2026 Stevens
5X LT
