Cartridge bearing, ISIS spindle w/ crank stop right side, capless bolts

Front: Auriga Comp hydraulic disc brake, w/ dual piston, 160mm rotor, Rear: Auriga Comp hydraulic disc brake, w/ dual piston, 160mm rotor

Globe 700c straight-blade aluminum fork, w/ custom forged crown and porteur basket/rack system

A1 Premium Aluminum, eccentric BB and open dropouts

Forged alloy, double sealed, ground race, QR

Alloy Commuter bar, 25.4mm, 43 degree up, 57 degree back sweep

1-1/8"" threadless, integrated, semi-cartridge Campy style bearings

Shimano Alfine internal, 8-speed, 36-hole

Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset

Forged alloy, 4-bolt, 25.4mm, 1-1/8"" w/ 15 degree rise

Front: Specialized Infinity w/ Armadillo protection, 60 TPI, 700 x 32c, Rear: Specialized Infinity w/ Armadillo protection, 60 TPI, 700 x 32c

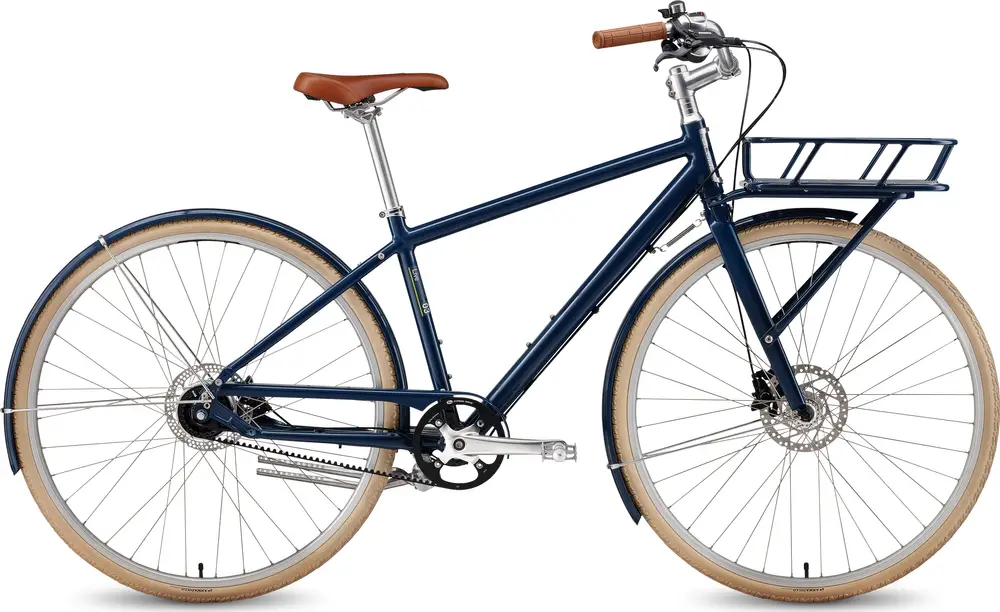

The Live 3 is a light-duty utility bike offering classic urban style and functionality to carry groceries, a laptop, art supplies or anything that suits your mood: with internal 8-speed gearing for low-maintenance performance.

Specialized Live 3

A 700c aluminum frame commuter bike with high-end components and hydraulic disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset	Nexus
Brakes	Hydraulic Disc

Frame	A1 Premium Aluminum, eccentric BB and open dropouts BB Standard: EBB, Press Fit
Fork	Globe 700c straight-blade aluminum fork, w/ custom forged crown and porteur basket/rack system
Bottom Bracket	Cartridge bearing, ISIS spindle w/ crank stop right side, capless bolts
Headset	1-1/8"" threadless, integrated, semi-cartridge Campy style bearings
Stem	Forged alloy, 4-bolt, 25.4mm, 1-1/8"" w/ 15 degree rise
Handlebar	Alloy Commuter bar, 25.4mm, 43 degree up, 57 degree back sweep
Saddle	Globe Live men's, 143mm
Seatpost	Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset Type: Rigid
Pedals	Globe aluminum commuter pedal

Crank	Belt-Drive specific Crank and Rings
Shifters	Shimano Nexus 8-speed, twist shifter
Cassette	Shimano Alfine Internal 8-speed
Chain	Belt drive 122 length
Brakes	Front: Auriga Comp hydraulic disc brake, w/ dual piston, 160mm rotor, Rear: Auriga Comp hydraulic disc brake, w/ dual piston, 160mm rotor Type: Hydraulic Disc
Brake Levers	Hydraulic lever, included in brake

Rims	Alloy double-wall
Spokes	2mm (14g) stainless
Front Hub	Forged alloy, double sealed, ground race, QR
Rear Hub	Shimano Alfine internal, 8-speed, 36-hole
Tires	Front: Specialized Infinity w/ Armadillo protection, 60 TPI, 700 x 32c, Rear: Specialized Infinity w/ Armadillo protection, 60 TPI, 700 x 32c

2012 SpecializedLive 3

2012 Specialized
Live 3
