Today’s DealsSE:Series 9 D
A 27.5″ aluminum frame full suspension crosscountry bike with upper mid-range components.
Manufacturer Price
€640($744)| Weight | 35.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 40 / 100mm |
| Fork | RockShox Judy |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | CUES |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
4'8" – 5'2"
5'0" – 5'8"
5'6" – 5'11"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

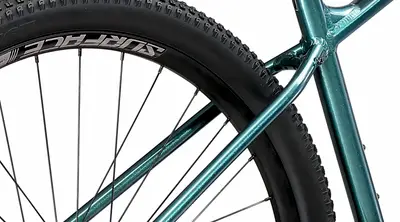

| Frame | Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.35" tyre clearance, rack and fender mounts. BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.35" Colors: Gloss Metallic Emerald; Matt Deep Passion Blue |
|---|---|

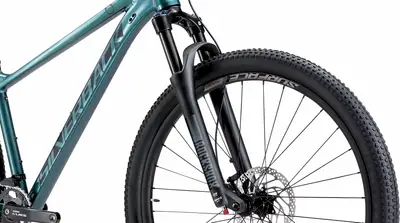

| Fork | Rockshox Judy, Air-spring, 100mm Travel, QR Travel: 100mm Spring Type: Air |
| Bottom Bracket | BSA73 |
| Headset | Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30 |
| Stem | Surface, Alloy, Ø31.8mm, ±6° Rise, 60mm Extension |
| Handlebar | Surface, Alloy, Dia: Ø31.8mm, 720~760mm, 9° Backsweep, 12mm Rise |
| Saddle | Surface |
| Seatpost | Surface Alloy Dropper post, Ø30.9mm, 100mm Travel Type: Dropper |
| Pedals | One Piece Alloy Pedal, Black |
| Grips | Surface Single Density |

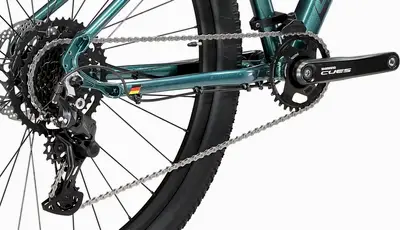

| Rear Derailleur | Shimano CUES RD-U4000, 9-Speed, Shadow |
|---|---|

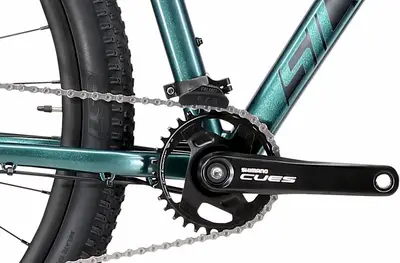

| Crank | Shimano CUES FC-U4000-1, 170mm, 32T |
| Shifters | R: Shimano CUES SL-U4000-9R, 9-Speed, Rapidfire Plus w/ Optical Gear |
| Cassette | Shimano CUES CS-LG300-9, 9-Speed Cassette, 11-46T |
| Chain | Shimano CN-LG500 LG, 9/10/11-Speed |
| Brakes | Shimano MT200 2-piston Hydraulic Disc, Resin Pads Type: Shimano Hydraulic Disc |
| Rims | F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready R: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready |
|---|---|
| Front Hub | F: Shimano HB-TC300, Centre Lock Disc, 32H, QR, OLD: 100mm R: Shimano FH-QC300-HM, Centre Lock Disc, 32H, 8-11-Speed, 170mm QR, OLD:135mm |
| Rear Hub | F: Shimano HB-TC300, Centre Lock Disc, 32H, QR, OLD: 100mm R: Shimano FH-QC300-HM, Centre Lock Disc, 32H, 8-11-Speed, 170mm QR, OLD:135mm |
| Tires | F: CST 1820, 29x2.35" Wire Bead R: CST 1820, 29x2.35" Wire Bead |
| Disc Rotors | F: Shimano Deore SM-RT30 Rotor, 180mm, w/ Lock Ring, External Serration R: Shimano Deore SM-RT30 Rotor, 160mm, w/ Lock Ring, External Serration |
First added May 1
Last updated May 30
