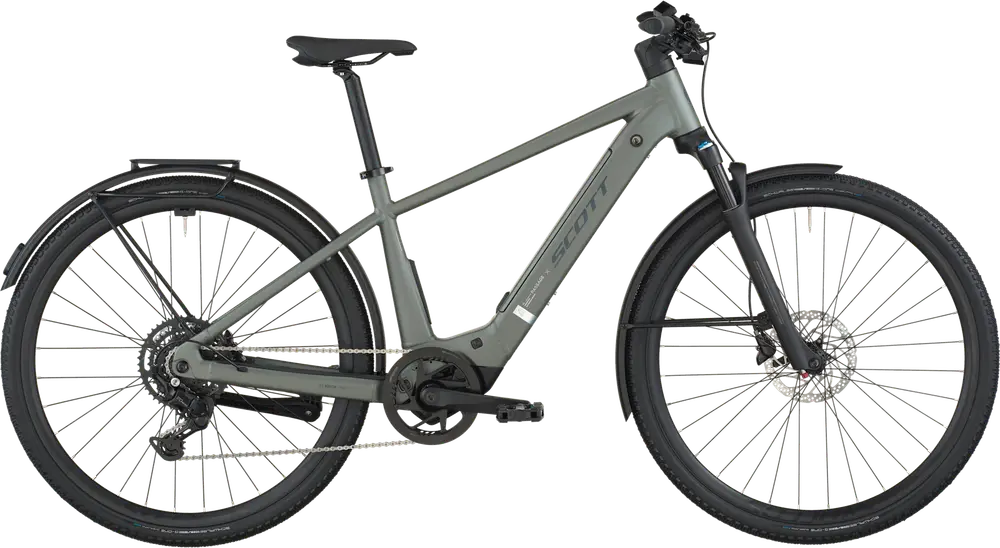

2026 Scott

Passage 20

A 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range

Manufacturer Price

£3,299($4,425)
Price History
Weight47.0 lbs
FrameAluminum
SuspensionHardtail, 75mm
ForkSuntour NRX
Wheels29″ Aluminum
Drivetrain1 × 9
GroupsetCUES
MotorBosch 600W 55Nm mid-drive
Battery400Wh
BrakesShimano Hydraulic Disc
View on scott-sports.comLearn about Scott
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Passage 20
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

Passage 20

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Passage model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Alloy S-XL=29", 6061 Alloy custom butted tubing; Top extraction battery

Color: Highland Green

Fork

SR Suntour NRX32-E Air LO R, Tapered, 15x100 bolt Axle, Remote Lock Out, Steel Steerer, 75mm Travel

Travel: 75mm

Spring Type: Air

Headset

Acros, 1.5"- 1.5"; semi integ. OD 50/61mm, ID 44/55mm

Handlebar

Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

Saddle

Syncros Capilano

Seatpost

Syncros M3.0, 31.6

Type: Rigid

Pedals

Marwi SP-827

Groupset
Rear Derailleur

Shimano CUES RDU4000GS 9 Speed

Crank

FSA CK-220 170mm

Shifters

Shimano CUES SLU4009RC, 9 Speed

Cassette

Shimano LG300, 11-46T

Chain

Shimano LG500

Chain Guide

Syncros

Brakes

Shimano BR-MT200 Disc

Type: Shimano Hydraulic Disc

Wheels
Rims

Syncros X15 Disc

Spokes

Black Spokes

Front Hub

Shimano HBTC50015B CL, 15x100mm

Rear Hub

Shimano FHTC500HMB CL, 12x142mm

Tires

Front: Schwalbe G-One Overland 365 Performance, 700x45C, Rear: Schwalbe G-One Overland 365 Performance, 700x45C

Disc Rotors

Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

Electric Components
Motor

Bosch Performance Line SX (BDU314Y); EU: 25kmh

Battery

Compact Tube 400Wh

Display

Bosch Purion 200

Charger

2A Charger

Accessories
Lights

Lezyne Fusion E550SM front light; Rear Supernova TL3Z

Racks

Racktime Micro Rack SnapIt 2.0 8KG
