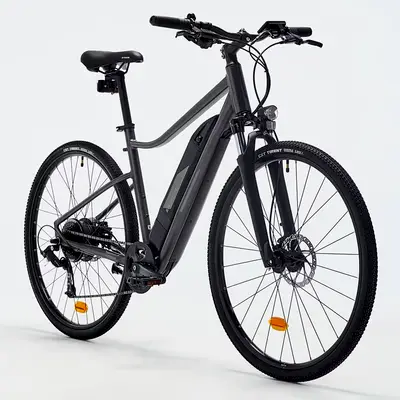

2024 RIVERSIDE

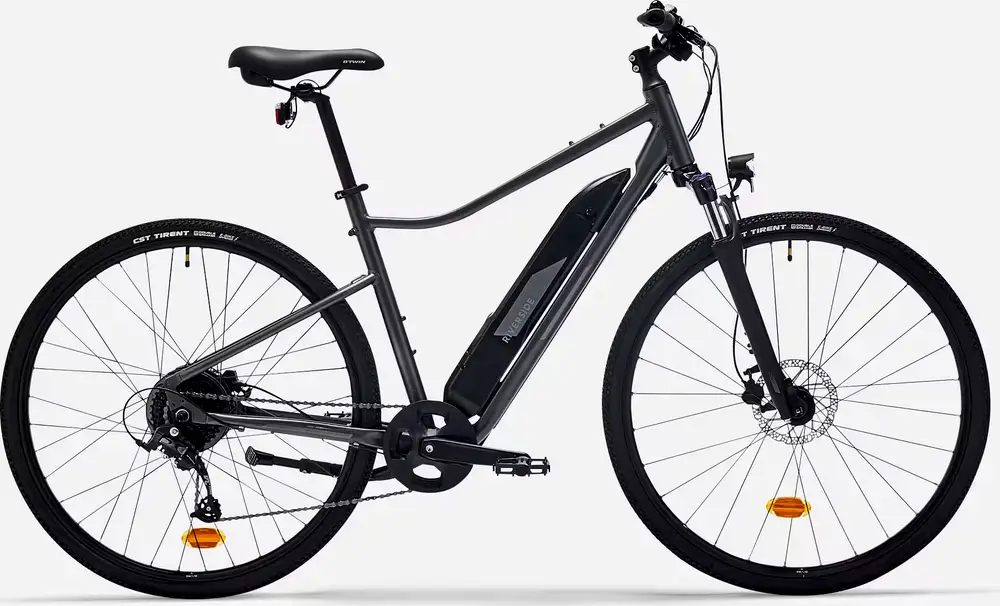

High Frame Electric Hybrid Bike 520 E

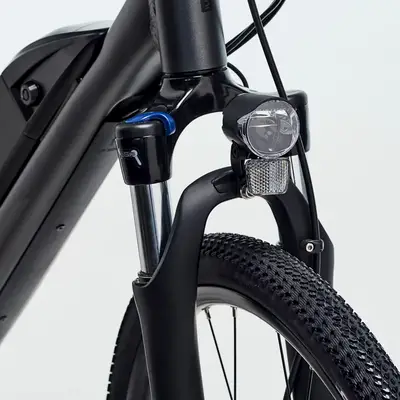

suspended fork

Because it's important that your seat position is adapted to your riding style, our teams developed the exclusive B'Twin Ergofit Trekking 500 saddle. Aluminium seat post with graduated markings for easier adjustment. Collar dimensions = 35 mm. Seat post diameter = 28.6 mm. Tool-free saddle height adjustment (quick-release).

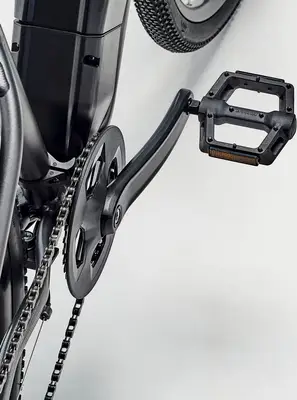

The Riverside 520 electric is supplied with versatile single-piece plastic pedals with a wide pedalling surface to help keep the foot on the pedal. 170mm-long aluminium cranks.36-teeth aluminium chainring. Plastic bottom bracket chainguard.

partial chain guard

aluminium

Comfortable, versatile, reinforced tyres from the brand CST Tirent so you can go anywhere. Puncture protection. The recommended pressure is between 4 and 5 bars (details on tyre sidewall). Dimensions: 700 x 40 (40-622).

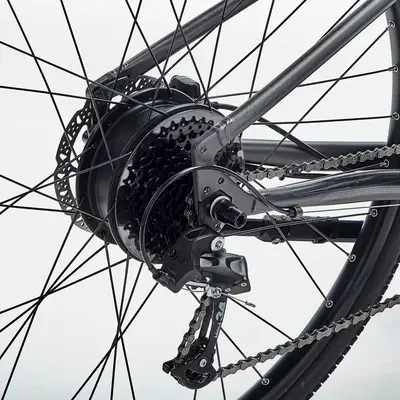

The 36-volt brushless rear wheel motor has 250 Watts of power for a maximum torque of 42 Nm. For example: In mode 1, the motor increases your power by +90%, so if you pedal 100 W, the motor adds 90 W. In mode 2, the motor increases your power by +150%, so if you pedal 100 W, the motor adds 150 W. In mode 3, the motor increases your power by +220%, so if you pedal 100 W, the motor adds 220 W.

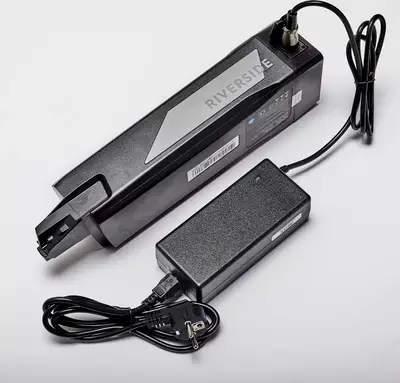

Batteries with 36 V 15 Ah (500 Wh) LG or Samsung lithium-ion cells and a locking system that prevents any vibrations to the battery as you ride. Supplied with two lock keys. Weight: 3.15 kg.2-year warranty, or 500 charging cycles to 100% Option to recharge on your bike or separately We recommend recharging the battery after each use.

cable

without mudguard

baby seat compatible

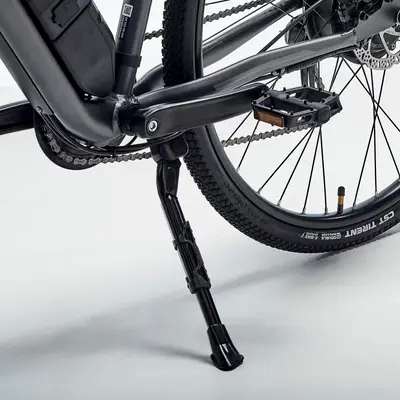

with stand

with bell
