Today’s Deals2023 Rad Power Bikes

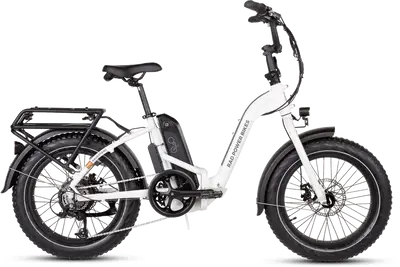

RadExpand 5
A 20″ aluminum frame folding e-bike with modest components and mechanical disc brakes.
Mentioned in We Visit Rad Power Bikes!
Manufacturer Price
$1,599| Weight | 62.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 20″ Aluminum |
| Drivetrain | 1 × 7 |
| Groupset | microSHIFT M26 |
| Motor | 750W hub-drive |
| Battery | 672Wh |
| Brakes | Mechanical Disc |
4'9" – 5'10"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Summary
The Rad Power Bikes RadExpand is a versatile and reliable folding e-bike, praised for its solid build, excellent range, and user-friendly handling. It features a sturdy frame that folds conveniently for storage, though it lacks front suspension, which some riders might miss. The bike is equipped with practical features like integrated lights and reflective tires, making it commute-ready.
Sturdy and reliable build with a convenient folding design
Excellent battery range and efficient motor performance
User-friendly handling suitable for e-bike newcomers
Commute-ready with integrated lights and reflective tires
Good value for the price with solid component specs
Lacks front suspension, affecting ride comfort on rough terrain
Heavier than some competitors, making it less portable
Basic LED display lacks detailed information and adjustability
The RadExpand 5 is a prime example of the American version of a folding bike.Electric Bike Report
Its ride quality is spectacular, it still folds nicely and they’ve done a nice job of balancing cost effectiveness with performance.Electric Bike Report
The bike is lighter and stiffer than previous generations, but still offers good comfort due to the higher volume 4″ knobby tires.
Electric Bike ReviewThis bike's combination of range and off-road capabilities really allow riders to explore more and further than other models, a big advantage of the RadExpand 5.
Outdoor Gear LabFeedback?
View all reviews
Sep 2024
Price: $2099.00 | Model Year: 2024 | The 720Wh SafeShield battery is a big step up in quality over the 672Wh battery found in the RadExpand 5. It is certified to UL 2271, and features a polymer that encases the cells for even greater safety. This is one of the best batteries on the market from a safety standpoint.
The 720Wh SafeShield battery is a big step up in quality over the 672Wh battery found in the RadExpand 5. It is certified to UL 2271, and features a polymer that encases the cells for even greater safety. This is one of the best batteries on the market from a safety standpoint.
The brakes are Gemma hydraulic disc brakes with 180mm rotors, which are a notable improvement over the mechanical disc brakes found on the RadExpand 5.
By swapping the cadence sensor for a torque sensor, riders will enjoy immediate power the moment they step on a pedal and they will be able to adjust their speed simply by how hard they pedal.
Pedals now fold, saving space for when storing in a small space. See Latest Price
Oct 2022 · Ross Robinson
Looking for a folding e-bike that fits the city streets just as well as it tackles trails on your off-road weekend adventures? The Rad Power RadExpand 5...
Adventure-ready
Excellent range
Rugged
Top-notch control and handling
Stable
Comes with useful features
Not for tall riders
Fairly heavy
More involved assembly
Mediocre display and controls
Aug 2022 · Sam Gross
In the world of electric bikes, specific models often get updated — sometimes yearly — and occasionally, models are sunsetted in favor of something new, better or just more in line with what consumers are asking for. In the case of Rad Power Bikes’ electric folding bike, some combination of all of the above appears
The new handlebar setup is a game changer. The bars are wider, it feels less flexy and it still folds to boot.
At over 62 lbs it’s still hefty, but the bike folds down to a convenient size for storing in an RV, a corner of the garage or in the trunk of most sedans.
Rad’s rear hub motors have proven time and again to be some of the most reliable on the market.
The spec sheet is solid for the price. A 7-speed drivetrain, nice working mechanical disk brakes and a sizeable battery for about $1,599 MSRP is a good deal.
The handling is spot-on. Neutral, balanced, predictable — riding this will be intuitive even for e-bike newbies.
Rad’s bikes have a distinct power profile that starts gentle and grows stronger as you pick up speed. Never once does it feel like it’ll jump out from under you.
Rad includes a velcro strap to hold the two halves of the bike together when folded, but it’s easily lost. We’d like to see a built-in solution for this issue.
I don’t mind the lack of front suspension fork, but some people will not like it. You can really feel some bumps in the road.
It’s surprising to see Rad move away from the LCD display. Unlike its predecessor the RadMini 4, this bike has no screen.
| Frame | 6061 aluminum Tire Clearance: 4" Colors: Black; White |
|---|---|
| Fork | Rad custom steel 135 mm hub width, 9 mm quick release |
| Bottom Bracket | 100 mm shell, 164 mm spindle |
| Headset | Semi-integrated, 1-1/8" straight steerer tube |
| Stem | 45 mm length, + 3º rise. |
| Handlebar | Alloy, 27" wide, 6.9" rise |
| Saddle | Rad Power Bikes with lifting handle |
| Seatpost | Aluminum alloy, 390 mm x 27.2 mm Type: Rigid |
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Grips | Ergonomically designed, made of soft yet durable rubber |
| Rear Derailleur | 7-Speed MicroShift RD-M26 |
|---|---|
| Crank | 48T, 170 mm forged alloy, dual-sided chainring guard |
| Shifters | MicroShift TS71-7 -R under bar thumb shifter, 7-speed |
| Cassette | 7-speed freewheel 14-32T |
| Chain | KMC Z7, 124 links |
| Brakes | Mechanical caliper Type: Mechanical Disc |
| Brake Levers | Rad Power Bikes approved aluminum alloy levers with motor cutoff switch. |
| Rims | Aluminum alloy, 36 hole, Rim width: 60 mm |
|---|---|
| Spokes | 12-gauge stainless steel, black |
| Tires | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Disc Rotors | 180 mm front and rear |
| Motor | 750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
|---|---|
| Battery | 672 Wh, Bikes shipped to NYC are compliant with UL 2849 and 2271. |
| Display | Rad Power Bikes custom LED display with Charge indicator, pedal assist level / error display, headlight/taillight indicator and more |
| Charger | 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Lights | Front: Rad Power Bikes branded standard LED, Rear: Integrated taillight with brake light indicator functionality |
|---|---|
| Fenders | Full coverage front and rear fenders with hardware included |
| Racks | Front: Optional, 30 lb (14kg) carrying capacity, Rear: Integrated, 55 lb (25kg) carrying capacity |
