Today’s DealsRadExpand 5

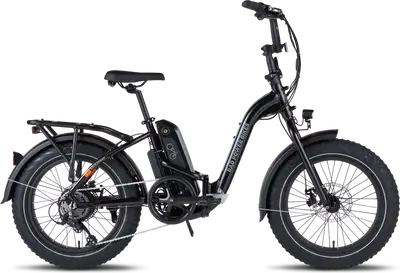

A 20″ aluminum frame folding e-bike with modest components and mechanical disc brakes.
Mentioned in We Visit Rad Power Bikes!
Manufacturer Price
$1,649| Weight | 62.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 20″ Aluminum |
| Drivetrain | 1 × 7 |
| Groupset | microSHIFT M26 |
| Motor | 750W hub-drive |
| Battery | 672Wh |
| Brakes | Mechanical Disc |
4'9" – 5'10"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Summary
The Rad Power Bikes RadExpand is a versatile and reliable folding e-bike that combines practicality with performance. It features a sturdy design, excellent range, and user-friendly handling, making it suitable for both beginners and experienced riders. While it lacks some high-end components and suspension, its affordability and foldability make it a standout option in its category.
Reliable rear hub motors
Solid spec sheet for the price
Neutral and predictable handling
Convenient foldability for storage
Good battery range
Lack of front suspension
Heavy weight
Basic LED display
Mechanical disc brakes
Only one frame size available
The RadExpand 5 is a prime example of the American version of a folding bike.Electric Bike Report
Its ride quality is spectacular, it still folds nicely and they’ve done a nice job of balancing cost effectiveness with performance.Electric Bike Report
The bike is lighter and stiffer than previous generations, but still offers good comfort due to the higher volume 4″ knobby tires.
This bike's combination of range and off-road capabilities really allow riders to explore more and further than other models, a big advantage of the RadExpand 5.
Feedback?
View all reviews

Oct 2022 · Ross Robinson
Looking for a folding e-bike that fits the city streets just as well as it tackles trails on your off-road weekend adventures? The Rad Power RadExpand 5...
Adventure-ready
Excellent range
Rugged
Top-notch control and handling
Stable
Comes with useful features
Not for tall riders
Fairly heavy
More involved assembly
Mediocre display and controls

Aug 2022 · Sam Gross
In the world of electric bikes, specific models often get updated — sometimes yearly — and occasionally, models are sunsetted in favor of something new, better or just more in line with what consumers are asking for. In the case of Rad Power Bikes’ electric folding bike, some combination of all of the above appears
The new handlebar setup is a game changer. The bars are wider, it feels less flexy and it still folds to boot.
At over 62 lbs it’s still hefty, but the bike folds down to a convenient size for storing in an RV, a corner of the garage or in the trunk of most sedans.
Rad’s rear hub motors have proven time and again to be some of the most reliable on the market.
The spec sheet is solid for the price. A 7-speed drivetrain, nice working mechanical disk brakes and a sizeable battery for about $1,599 MSRP is a good deal.
The handling is spot-on. Neutral, balanced, predictable — riding this will be intuitive even for e-bike newbies.
Rad’s bikes have a distinct power profile that starts gentle and grows stronger as you pick up speed. Never once does it feel like it’ll jump out from under you.
Rad includes a velcro strap to hold the two halves of the bike together when folded, but it’s easily lost. We’d like to see a built-in solution for this issue.
I don’t mind the lack of front suspension fork, but some people will not like it. You can really feel some bumps in the road.
It’s surprising to see Rad move away from the LCD display. Unlike its predecessor the RadMini 4, this bike has no screen.

May 2022
Price: $1599.00 | Model Year: 2022 | An affordable folding electric bike with powerful geared hub motor, high capacity 48 volt battery pack, integrated lights with bright braking activation, custom plastic fenders, and a sturdy rear rack all included! Optional front tray, baskets, panniers, suspension seat post, child seat, mobile delivery service, and more.
An affordable folding electric bike with powerful geared hub motor, high capacity 48 volt battery pack, integrated lights with bright braking activation, custom plastic fenders, and a sturdy rear rack all included! Optional front tray, baskets, panniers, suspension seat post, child seat, mobile delivery service, and more.

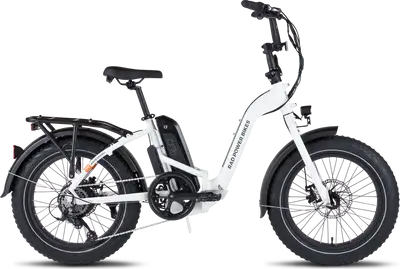

Sturdy reinforced step-thru frame is approachable, offers a highly adjustable handlebar, and is available in two colors: black or white. Reflective tires enhance the visual footprint, along with the side cutouts on the headlight, and a flick bell is included for signaling. Reliable braking with large 180mm mechanical disc brakes with motor inhibitors.
High volume 4" wide fat tires provide stability, float on soft terrain, and comfort. Their knobby tread is capable off-road, and provides further vibration dampening. Ergonomic rubber grips, comfort saddle with handle, and large platform pedals feel secure. Great 7-speed drivetrain with chainring guide offers 14 to 32 tooth spread for starts and climbing, trigger shifters are easy to reach and actuate.
Compared to older generation RadMini folding ebike products, this 5th generation bike does not have a suspension fork. This reduces the weight of the bike by ~6.5lbs, lowers the cost, and improves compliance. Folding joints felt very secure, large gussets limit frame flex and increase the weight capacity. Basic LED display readout lacks a USB charging port and does not communicate speed, but they do sell an optional upgrade to LCD display.
| Frame | 6061 aluminum Tire Clearance: 4" Colors: Black; White |
|---|---|
| Fork | Rad custom steel 135 mm hub width, 9 mm quick release |
| Bottom Bracket | 100 mm shell, 164 mm spindle |
| Headset | Semi-integrated, 1-1/8" straight steerer tube |
| Stem | 45 mm length, + 3º rise. |
| Handlebar | Alloy, 27" wide, 6.9" rise |
| Saddle | Rad Power Bikes with lifting handle |
| Seatpost | Aluminum alloy, 390 mm x 27.2 mm Type: Rigid |
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Grips | Ergonomically designed, made of soft yet durable rubber |
| Rear Derailleur | 7-Speed MicroShift RD-M26 |
|---|---|
| Crank | 48T, 170 mm forged alloy, dual-sided chainring guard |
| Shifters | MicroShift TS71-7 -R under bar thumb shifter, 7-speed |
| Cassette | 7-speed freewheel 14-32T |
| Chain | KMC Z7, 124 links |
| Brakes | Mechanical caliper Type: Mechanical Disc |
| Brake Levers | Rad Power Bikes approved aluminum alloy levers with motor cutoff switch. |
| Rims | Aluminum alloy, 36 hole, Rim width: 60 mm |
|---|---|
| Spokes | 12-gauge stainless steel, black |
| Tires | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Disc Rotors | 180 mm front and rear |
| Motor | 750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
|---|---|
| Battery | 672 Wh |
| Display | Rad Power Bikes custom LED display with Charge indicator, pedal assist level / error display, headlight/taillight indicator and more |
| Charger | 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Lights | Front: Rad Power Bikes branded standard LED, Rear: Integrated taillight with brake light indicator functionality |
|---|---|
| Fenders | Full coverage front and rear fenders with hardware included |
| Racks | Front: Optional, 30 lb (14kg) carrying capacity, Rear: Integrated, 55 lb (25kg) carrying capacity |
