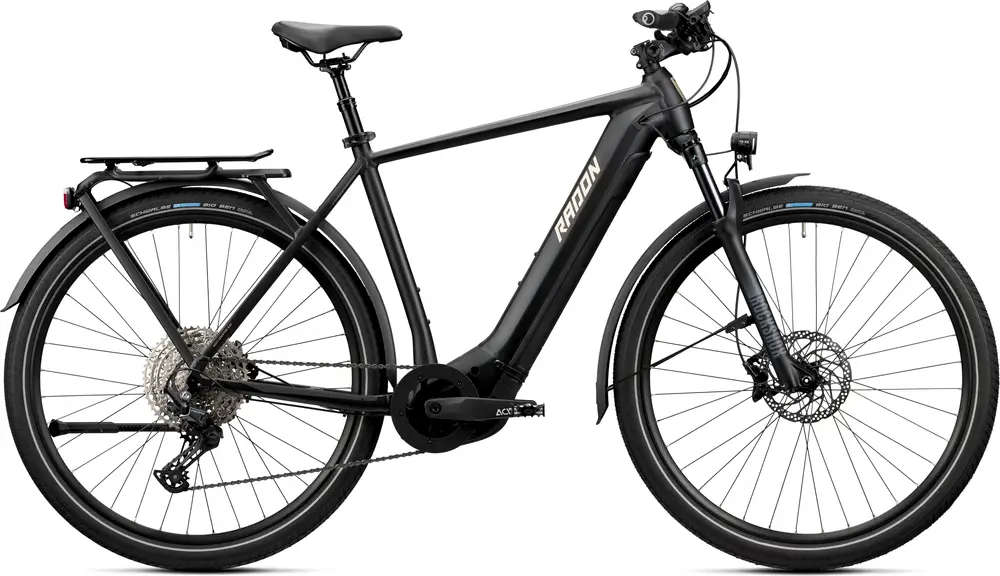

2023 Radon
RELATE 8.0 625

A 700c commuter e-bike with upper mid-range components and shimano deore hydraulic disc brakes.

Manufacturer Price

€3,499($4,071)

Weight	55.1 lbs
Suspension	Hardtail, 100mm
Wheels	700c Aluminum
Drivetrain	1 × 12
Groupset	Deore
Motor	Bosch 600W 85Nm mid-drive
Battery	Bosch 625Wh
Brakes	Shimano Deore Hydraulic Disc

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

RELATE 8.0 625

31 mph

Similar Bikes

Highest gear

(descending)

Price History

Specs

Build

Frame	RELATE 625; Powertube Capacity: 625Wh, Hanger: #8651 Color: Black / Warmsilver
Fork	RockShox Recon Silver RL, Air, Boost Travel: 100mm Spring Type: Air
Headset	Acros Block-Lock, ZS56/ZS56
Stem	Humpert Swell-R Eco adjust, Ø31.8mm; 50cm: 100mm, 54cm: 100mm, 58cm: 100mm, 62cm: 120mm
Handlebar	RADON Comfort Trail Bar, 31.8 x 680mm
Saddle	Natural Fit Sequence
Seatpost	RADON suspension seatpost, Ø30.9 x 350mm Type: Suspension
Pedals	not included
Grips	Ergon GP10, L

Groupset

Rear Derailleur	Shimano DEORE RD-M6100-SGS, 12-speed
Crank	Acid E-Crank, 175mm, KMC chainring, 38T
Shifters	Shimano DEORE SL-M6100-R
Cassette	Shimano DEORE CS-M6100, 10-51
Chain	Shimano DEORE CN-M6100
Brakes	Shimano BR-MT420/BR-MT410 Type: Shimano Deore Hydraulic Disc

Wheels

Rims	Alexrims MD23
Spokes	DT Swiss Factory
Front Hub	Shimano HB-MT400-B, 110mm
Rear Hub	Shimano FH-MT410-B, 148mm
Tires	Schwalbe Big Ben, PerfL, wired, Reflex, 28" x 55mm

Electric Components

Motor	Bosch Performance Line CX Gen4
Battery	Bosch Powertube 625Wh
Display	Bosch Intuvia

Accessories

Lights	Front: Busch & Müller Lumotec IQ-XS Light E, Rear: Herrmans H-Trace E-Bike
Racks	Racktime IC 2.0
Bell	RADON Mini Bell

Rider Notes

Riders Also Viewed

First added February 11

Last updated May 16

2023 RadonRELATE 8.0 625
