2026 QiO

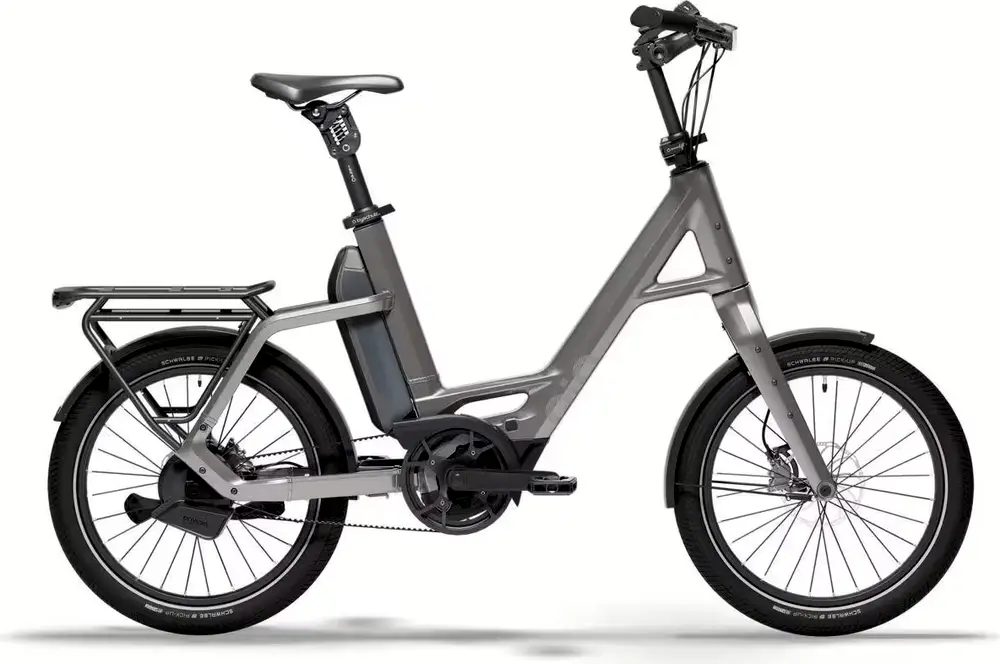

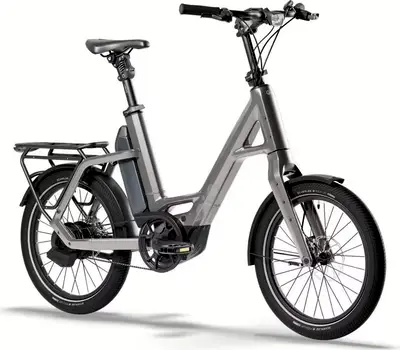

Compact PXA+

A 20″ aluminum frame general urban e-bike with high-end components and rim brakes.
Compare the full range

Manufacturer Price

€5,299($6,162)

Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	20″ Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset
Motor	Bosch 600W 85Nm mid-drive
Battery	Bosch
Brakes	Rim
Seatpost	Dropper

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Compact model range

Price History

Specs

Build

Frame	QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm BB Standard: Bosch, Press Fit Colors: Lunar White Matt; Night Black Matt; Dark Olive Matt; Lead Metal; Forest Green; Imola Red; Retro Blue Matt; Petrol Blue Matt
Fork	Aluminum, tapered 1 1/4" - 1.5"
Bottom Bracket	BOSCH
Headset	ACROS ZS66/31.75 OD74 / ZS66/46/OD72, blocklock
Stem	ergotec "SWELL-RE", 80 mm long, adjustable, level 6
Handlebar	ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
Saddle	Selle Royal "On", Moderate Wide
Seatpost	by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset Type: Dropper
Pedals	MARWI "SP-157 HD" Faltpedale
Grips	HERRMANS "Nucore Town", wave

Groupset

Wheels

Rims	DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
Spokes	2,0 mm, Niro, schwarz
Front Hub	SHIMANO "HB-TC500", 12 x 100 mm, Center Lock, Steckachse
Rear Hub	ENVIOLO "TR", stepless, 6-hole
Tires	SCHWALBE "Pick-up", 60-406, Reflex

Electric Components

Motor	BOSCH "Performance Line PX", max. 85 Nm
Battery	BOSCH "Active Line Plus", max. 50 Nm
Display	BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
Charger	BOSCH 4 A

Accessories

Lights	Front: Busch + Müller "Briq-S E", 60 lux, Rear: Busch + Müller "Dart E Brex "
Fenders	SKS "A 69 R"
Racks	"MIK HD 2.0" for MIK Side
