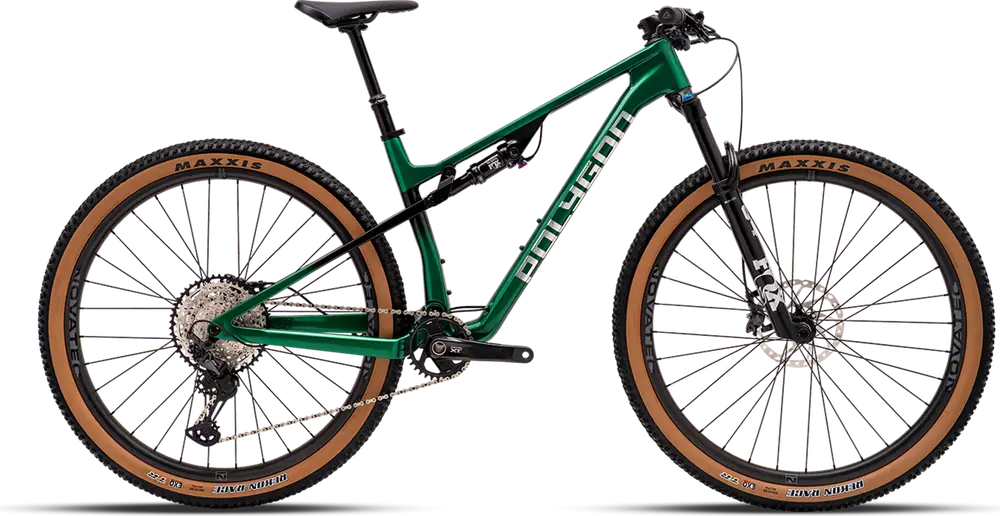

2026 Polygon

SYNCLINE DR8

A 29″ carbon frame full suspension trail bike with high-end components.
Compare the full range

Manufacturer Price

$3,499
Price History
FrameCarbon
SuspensionFull, 110 / 120mm
ForkFox Performance Float 34
ShockFox Float SL Performance Elite
Wheels29″ Carbon
Drivetrain1 × 12
GroupsetXT
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on polygonbikes.comLearn about Polygon
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Sale

$3,999

$4,499

Bikes Online logoBikes Online

Syncline DR8

Available: SM, MD, & LG

Advertisement
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
SYNCLINE DR8
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

SYNCLINE DR8

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full SYNCLINE model range

View Comparison
Sizing
SM

5'1" – 5'6"

MD

5'4" – 5'10"

LG

5'8" – 6'2"

XL

6'0" – 6'5"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

carbon

BB Standard: BSA, Threaded

Hanger Standard: UDH

Tire Clearance: 2.35"

Color: Green Metalic

Fork

FOX 34 SL PERFORMANCE SERIES 120mm TRAVEL

Travel: 120mm

Spring Type: Air

Shock

FOX FLOAT SL PERFORMANCE ELITE SERIES, E2E: 165x40mm

Travel: 110mm

Bottom Bracket

SHIMANO MT801 BSA THREADED

Headset

FSA NO.69/59/SRS/DUAL, IS 52/28.6 | IS 52/40

Stem

Polygon Expert, Alloy, 70mm Length, 31.8mm Clamp, -17° Rise

Handlebar

POLYGON EXPERT, W: 760mm, BB: 31.8mm, R/D: 5mm, B: 9degree

Saddle

FIZIK TERRA ARGO X7, CR-MO ø 7mm

Seatpost

TRANZ-X JD-YSP23J 125mm TRAVEL, DxL: 31.6x412mm

Type: Dropper

Pedals

ALLOY FLAT W/ REPLACEABLE PIN

Groupset
Rear Derailleur

SHIMANO XT M8100-SGS

Crank

SHIMANO DEORE XT M8200, 32T

Shifters

SHIMANO XT M8100, 1x12 SPEED

Cassette

SHIMANO SLX M7100, 10-51T

Chain

KMC X-12

Brakes

SHIMANO DEORE XT HYDRAULIC DISC

Type: Shimano XT Hydraulic Disc

Brake Levers

SHIMANO DEORE XT M8200

Wheels
Rims

CARBON W: 30mm 622-29 32H FOR TYRE 622-54/76 TL READY

Spokes

F: STAINLESS NDS:290 DS:293 W/ 12mm BRASS NIPPLE / R: STAINLESS NDS:291 DS:289 W/ 12mm BRASS NIPPLE

Front Hub

NOVATEC BOOST 15x110mm 32H CL

Rear Hub

NOVATEC 12x148mm 32H CL FOR MICRO SPLINE

Tires

MAXXIS REKON RACE 29"x2.35"

Disc Rotors

SHIMANO RT64, R:160mm / F:180mm
