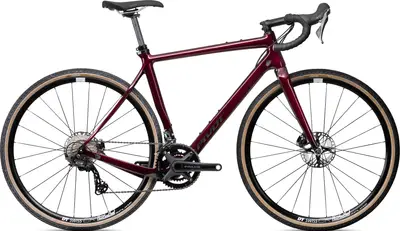

Vault Pro GRX
A carbon frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$5,699Frame | Carbon |
---|---|
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 11 |
Groupset | GRX 800, Ultegra |
Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full VAULT model range
View Comparison4'9" – 5'5"
5'3" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'1" – 6'8"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2019 · Benjamin Topf
Pivot are known for their exclusive mountain bikes and as well as their years of accumulated carbon know-how. For their 2019 range, the Arizona-based company have introduced the progressive Pivot Vault Team Force gravel bike. Does it hit a hole in one? We’ve got the answer! Click here for an overview of the best gravel […]
Playful handling without being nervous
Comfortable ride
Integration and versatility of the ISO FLEX system
Not the most stable ride
Rattling internal routing
Cassette is too small for steep ramps
Nov 2019 · Dan Cavallari
The Vault from Pivot feels very much like a finesse bike: Subtle details add up to an incredibly smooth ride. Those details might not readily be apparent
Jun 2019
The new Vault looks to be a great option for mountain riders looking to get gravel riding and seasoned crosser alike. - Mtbr.com
Jun 2019
Lighter, smoother and more capable than ever, the Vault can be your do-anything drop-bar bike.
Iso-Flex seatpost adds comfort
Fits 45mm tires (on 700c wheels)
Short 420mm chainstays
Seatpost length limits dropper-post options
Mar 2019 · Clifford Lee
The heart of the Pivot Vault cyclocross/gravel bike is classic, but the build is updated for gravel adventures. We take a first look at the carbon bike.
Aug 2023 · Robert R
I have 2 Pivot Vault Pros. They are Di2 12 speed and shipped with Praxis crankset. As anyone had drive train issues? We had major problems and curi
weight and comfort
initial pairing of crankset and Di2 12 speed. PIVOT support is poor to this point. We will see......
Frame | Vault Colors: Deep Metallic Blue; Firebrick Red |
---|---|
Fork | Pivot Vault Carbon |
Headset | Pivot Precision Sealed Integrated Cartridge |
Stem | Phoenix Team 31.8mm |
Handlebar | Easton EA70 AX Aluminum - 40cm (XS), 42cm (SM), 44cm (MD), 46cm (LG, XL) |
Saddle | Phoenix WTB Pro Volt |
Seatpost | Phoenix Pro ISO Flex Carbon Type: Rigid |
Rear Derailleur | Shimano GRX 810 11-Speed |
---|---|
Front Derailleur | Shimano Ultegra Double FD-8000 Braze On |
Crank | Praxis Zayante Carbon-S 48/32t |
Shifters | Shimano GRX 810 11-Speed |
Cassette | Shimano Ultegra HG-800 11-34t |
Chain | Shimano CN-HG600 11-Speed |
Brakes | Shimano GRX 810 2-piston Type: Hydraulic Disc |
Rims | DT Swiss CR 1600 SPLINE 22mm - 700C 12x100 F/12x142 R |
---|---|
Tires | Maxxis Rambler 700c x 40mm TR Skinwall EXOMaxxis Rambler 700c x 40mm TR Skinwall EXO |
Disc Rotors | Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm |
