Today’s Deals2026 Orbea

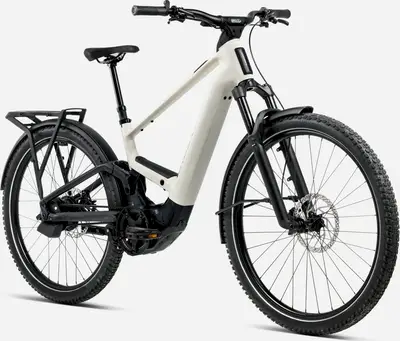

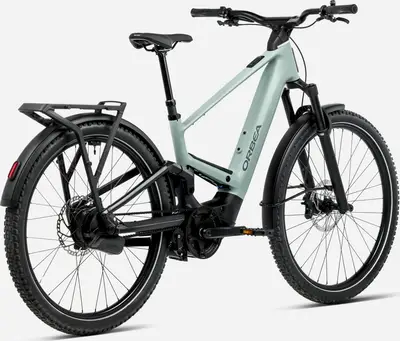

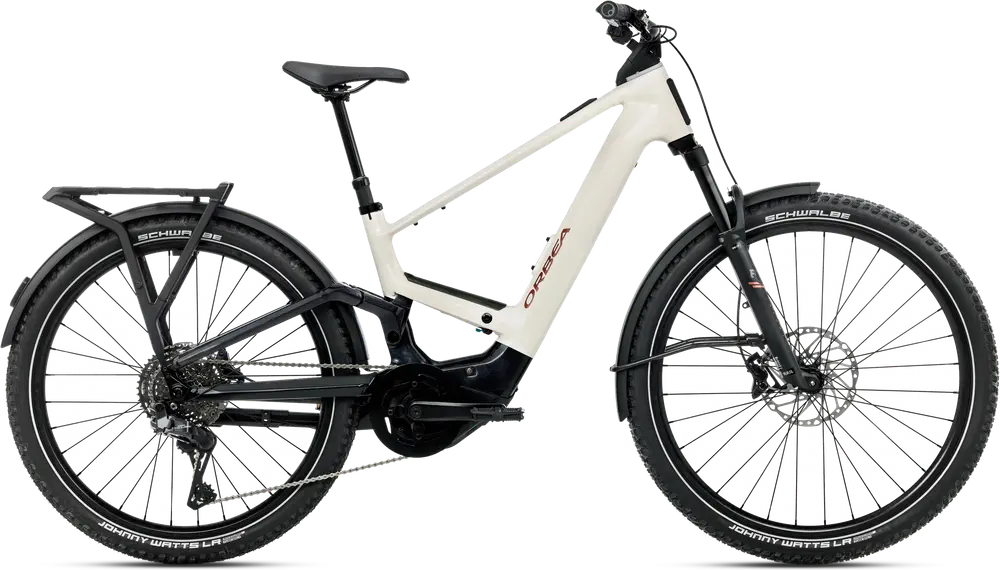

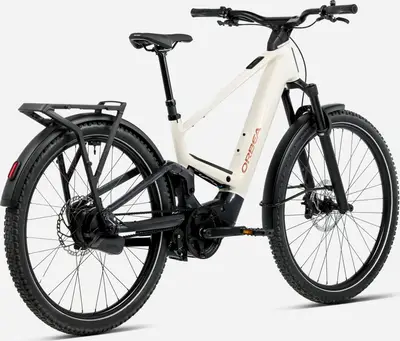

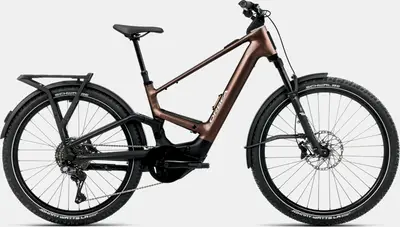

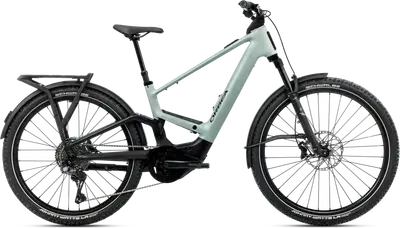

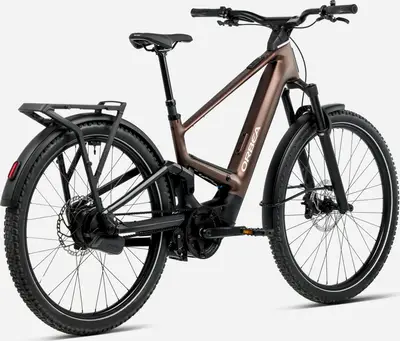

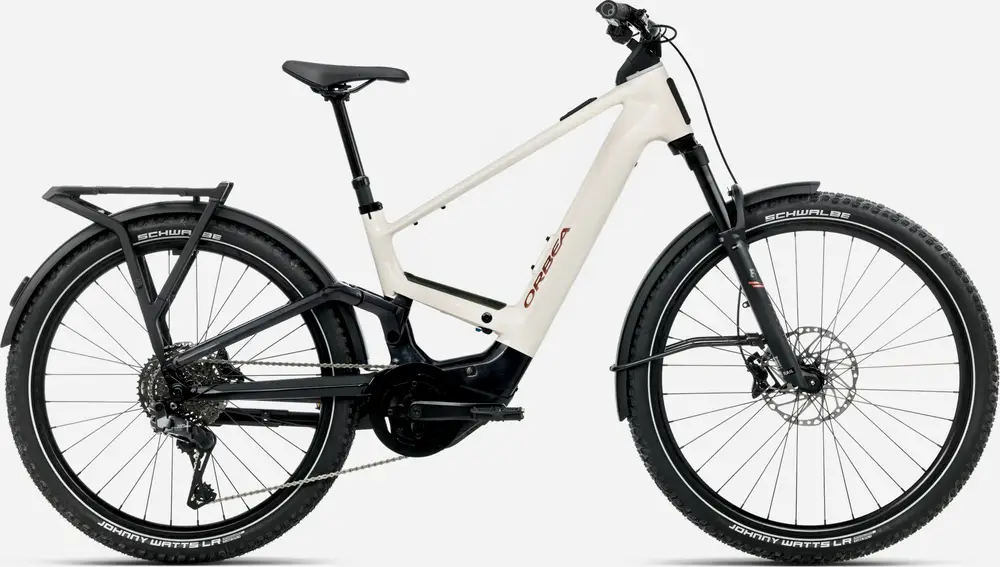

MUGA 20
A 27.5″ aluminum frame full suspension trail e-bike with high-end components.
Compare the full range
Manufacturer Price
£5,299($7,107)| Frame | Aluminum |
|---|---|
| Suspension | Full, 120mm front |
| Fork | Fox AWL |
| Shock | Fox Float X Performance |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 Electronic |
| Groupset | CUES Di2 |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full MUGA model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2025 · Robin Ulbrich
An SUV ebike with a taste for adventure: the Orbea Muga is here to shake up your daily routine. Commuting is old news, it’s all about the experience now.
Stable handling on both road and trail
Comfortable suspension
Quiet ride
Non-removable battery
Jul 2025 · Jeremy Benson
Orbea’s new Muga blends urban practicality with mountain bike capability to create a versatile eBike intended to take you nearly anywhere.

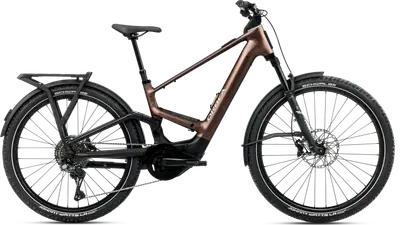

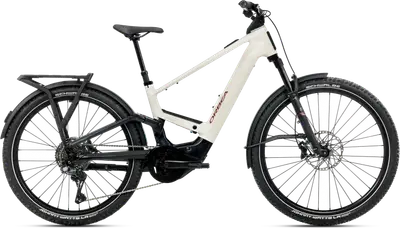

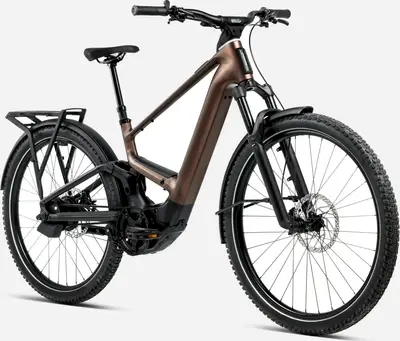

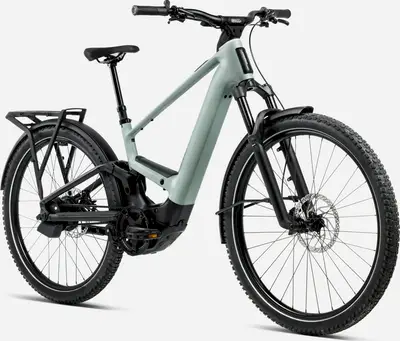

| Frame | Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible. Colors: Metallic Rust - Diamond Black (Matt); Ivory White - Diamond Black (Gloss); Blue Stone - Diamond Black (Matt) |
|---|---|
| Fork | Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts Travel: 120mm Spring Type: Air |
| Shock | Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm |
| Handlebar | Orbea Urban, Integ. light, Backsweep 9, Rise 30, Width 760 |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper Type: Dropper |
| Pedals | VP-892 Black with reflectors |
| Rear Derailleur | Shimano Cues Di2 U8050 11s SGS Shadow Plus |
|---|---|
| Crank | Alloy BDU37/38 42t |
| Shifters | Shimano EN605-R |
| Cassette | Shimano CS-LG400 11-45t 11-Speed |
| Chain | KMC eGlide |
| Brakes | Shimano MT420 Hydraulic Disc Type: Shimano Hydraulic Disc |
| Rims | Alloy, 26c, 32H |
|---|---|
| Tires | Schwalbe Johnny Watts LR, 60-584, Reflective Tape |
| Motor | Bosch Performance Line CX BDU3843 |
|---|---|
| Battery | Bosch Powertube 750Wh Horizontal BBP3770 |
| Remote | Bosch Mini Remote BRC3300 |
| Display | Bosch System Controller BRC3100 |
| Charger | Bosch Charger 4A (230V) BPC3400 |
| Lights | Front: Supernova Starstream Pure, Low Beam, Rear: Supernova TL3 Z |
|---|---|
| Fenders | Curana Apollo Orbit 70mm |
| Racks | Front: N/A, Rear: Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg |
