Today’s Deals2021 Orbea

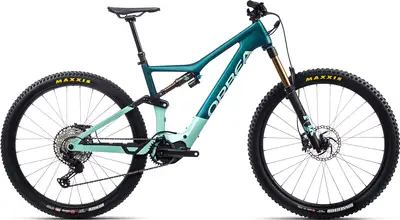

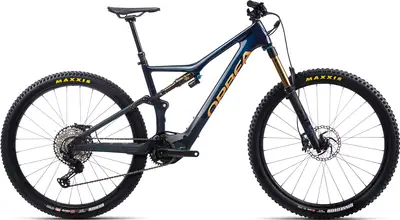

RISE M10 20mph
A 29″ carbon frame full suspension trail e-bike with high-end components.
Compare the full range
Manufacturer Price
$8,599| Reported Weight | 41.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 140 / 150mm |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float DPX2 Factory |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Motor | Shimano 85Nm mid-drive |
| Battery | 360Wh |
| Brakes | Shimano XT Hydraulic Disc |
| Seatpost | Dropper |
4'11" – 5'5"
5'2" – 5'9"
5'6" – 6'1"
5'10" – 6'6"
- 5'11", size LG, Just right
- 5'10", size LG, Just right
- 6'2", size XL, Just right
- 6'0", size XL, Fits large
Summary
The Orbea Rise is a lightweight, trail-oriented eMTB that blends the feel of a traditional mountain bike with the benefits of electric assistance. It's praised for its natural ride quality, efficient motor, and customizable options. The bike excels in handling and suspension performance, making it a versatile choice for trail riding.
Ultra-lightweight for an eMTB
Natural ride feel with minimal assistance
Excellent handling and suspension performance
Customizable motor settings and build options
Good value for the features offered
Limited battery info and range for some users
Stock tires may not suit all conditions
Some models have reported motor noise issues
Higher cost at starting trim levels
Seatpost clearance can be limiting
"less e and more bike"
Bikerumor"The handling of the ORBEA RISE is next level! Hardly any other eMTB is this much fun and so fast on the trail."
E-Mountainbike Magazine"Orbea Rise may be the strongest contender for the best e-bike on the market."
Vital MTBFeedback?
View all reviews
Aug 2022 · James Costley-White
If you want to supplement your leg power on trail rides, not full-on turbo-boost them, the Rise could well be the ebike for you
Battery life
Efficient motor
Confident, smooth ride feel
Good value
Seatpost clearance is limited
Tyres don't suit UK conditions
Saddle is uncomfortable
Jul 2022 · Knut Nes
Orbea launced the carbon frame Orbea Rise a couple of years ago. This was a 29er bike in the Superlight category. The bike came with the Shimano EP8-RS motor, a detuned version of the EP8. With a 360 Wh battery, this bike was quite lightweight. Orbea claimed some 16 kgs for the most expensive model. Watch the video review of the Rise H30, or keep reading below. Less superlight For 2022, Orbea introduced the carbon frame version – Rise Hydro. …
May 2022
Price: $5699.00 | Model Year: 2022 | The entry model in the Orbea Rise line of light weight full suspension electric trail bikes. Featuring the Shimano EP8-RS Rider Synergy mid-drive motor that's custom tuned for efficiency, offering 60nm of peak torque and 250 watts nominal output. Available in four frame sizes, three color choices, and many hardware upgrade paths using MyO configuration ordering.
The entry model in the Orbea Rise line of light weight full suspension electric trail bikes. Featuring the Shimano EP8-RS Rider Synergy mid-drive motor that's custom tuned for efficiency, offering 60nm of peak torque and 250 watts nominal output. Available in four frame sizes, three color choices, and many hardware upgrade paths using MyO configuration ordering.
Fully integrated battery pack utilizes 21700 battery cells from Panasonic that offer high energy density, reduced weight, and more charge cycles. Optional range extender battery is shaped like a water bottle for easy mounting and use. Boost hub spacing with 15mm and 12mm thru-axles offer improved stiffness. Stock 29er wheels can switch or mix with 650b and plus sized tires.
Dual piston 180mm hydraulic disc brakes from Shimano. 12-speed Shimano SLX drivetrain with wide 10-51 tooth cassette. Marzocchi suspension fork and Fox rear suspension offer 140mm travel with compression and rebound adjust. 40mm dropper seat post, fast 4 amp battery charger, highly adjustable Shimano SC-E7000 display panel and smartphone app.
Heavier than the M series carbon fiber frames, in part because the H series comes with a higher capacity battery pack (540wh vs. 360wh). Charging port is directly in the path of the left crank arm, the power button is low on the frame, the menu change button is on the Shimano display vs. the easy to reach button pad. Main battery is not easily removed which adds weight, can make charging more difficult, may limit travel and and subject the battery to varied temperatures.
Feb 2022
Riding and reviewing the Orbea Rise eMTB with Jeff Kendall-Weed.
Dec 2021 · Seb Stott
The new aluminum Rise has a bigger battery and a lower price than its carbon counterpart.
Sep 2021
The Orbea Rise is a fast-handling, fast-pedaling eBike Light with a stiffer suspension platform that will translate some feedback and energy to the rider producing an engaged ride experience.
Playful
More power than other eMTB Light Offerings
Fast, nimble and lively
Looks good
Rides like it’s 35lbs
Wheel spec for gnarly riders
Junction box instead of Shimano display
Not cheap
Jul 2021 · BHowell
Is this the best e-bike on the market right now? We make our case.
Light on the scale, lighter on trail
Incredible all-rounder
Battery/range management
Phenomenal trail manners
Flawless suspension performance
Strong value proposition
Customizable build packages
A true class leader
Proper tires are an upcharge
Battery removal is involved
Jul 2021
The Orbea Rise takes a very different approach, using a smaller battery and a de-tuned Shimano EP8-RS motor to create a sub-19kg electric mountain bike. But is it just a limp e-MTB that's held back by reduced power? Or does Orbea's concept bring something genuinely new to the e-Table? Read on for our Orbea Rise review.
Impressively low weight
Dialled geometry and superb handling
Smooth, active and tuneable suspension performance
Intuitive power delivery that's easy to modulate
Customisable motor settings
Gorgeous frame design
It's crying out for more capable rubber
35mm carbon bars are overly stiff
Some will find the interface too minimalistic
The EP8 clacking noise remains
| Frame | Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148 Colors: Sap White - Green Fog (Gloss); Ice Green (Gloss) - Ocean (Matte); Coal Blue (Matte-Gloss) - Red Gold (Matte) |
|---|---|
| Fork | Fox 36 Float Factory 150 Grip2 QR15x110 Kashima Travel: 150mm Spring Type: Air |
| Shock | Fox DPX2 Factory 3-Position Adjust Evol Kashima custom tune 210x55mm Travel: 140mm |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | Race Face Aeffect R 35mm interface |
| Handlebar | Race Face Next R 35 20mm Rise 780mm |
| Saddle | Fizik Taiga S-alloy rail |
| Seatpost | OC2 Dropper 31.6mm Type: Dropper |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
|---|---|
| Crank | e-THIRTEEN e*spec Direct Mount 32T Boost |
| Shifters | Shimano XT M8100 I-Spec EV |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Chain | Shimano M7100 |
| Chain Guide | Orbea Rise chainguide |
| Brakes | Shimano XT M8120 Hydraulic Disc Type: Shimano XT Hydraulic Disc |
| Rims | Race Face TURBINE-R30 TLR 15/110mm IS |
|---|---|
| Tires | Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR |
| Motor | Shimano EP8-RS |
|---|---|
| Battery | Orbea RS Internal 360Wh |
| Remote | Shimano E7000 switch unit for assist |
| Charger | Orbea RS Charger (36V-2A) |
