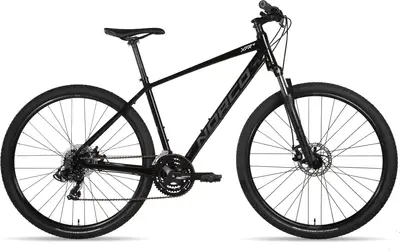

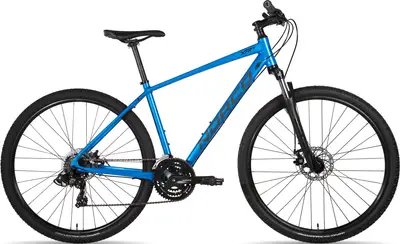

2020 Norco

XFR 4

A 700c aluminum frame hybrid bike with mid-range components and mechanical disc brakes.
Compare the full range

MSRP$549
FrameAluminum
SuspensionHardtail, 75mm
ForkSuntour NVX
Wheels700c Aluminum
Drivetrain3 × 7
GroupsetTourney, Shimano
BrakesMechanical Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

35 mph

XFR 4

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Norco XFR, Aluminum, 9x135mm QR Dropouts

BB StandardBSA, 73mm, Threaded

Fork

SR Suntour NVX, 75mm Travel, 9x100mm QR

Travel75mm

Spring TypeCoil

Bottom Bracket

Cartridge BB, Threaded BSA 73mm

Headset

Zero Stack Headset w/15mm spacer

Stem

Norco SL Alloy - Black

Handlebar

Norco Alloy 25mm Riser - Black

Saddle

Norco MTB Sport - Black

Seatpost

Alloy, 27.2mm

TypeRigid

Pedals

City - Black

Grips

Norco, Black

Groupset
Rear Derailleur

Shimano RD-TY500, SGS, 7 Speed

Front Derailleur

Shimano Tourney FD-TY710, 3 Speed

Crank

Shimano FC-TY301, 170mm (XS/S) | 175mm (M/L/XL), 48/38/28T

Shifters

Rear: Shimano ST-EF500, Easy-Fire, 7 Speed, Front: Shimano ST-EF500, Easy-Fire, 3 Speed

Cassette

Shimano Tourney CS-HG200, 12-32T, 7 Speed

Chain

KMC Z50, 7 Speed

Brakes

Front: Tektro MD-M280, Mechanical Disc, 160mm Rotor, Rear: Tektro MD-M280, Mechanical Disc, 160mm Rotor

TypeMechanical Disc

Brake Levers

Shimano Easy-Fire, 2 Finger Levers

Wheels
Rims

WTB SX19, 32 Hole, 19mm Internal Width

Front Hub

Alloy Sealed Disc Hub

Rear Hub

Alloy Sealed Disc Hub, 32 Hole, 10x135mm QR

Tires

Front: Impac Smartpac, 700x47c, Rear: Impac Smartpac, 700x47c

Rider Notes
Riders Also Viewed

Last updated September 22
Not listed for 1,278 days
