2020 Norco

XFR 3 Step-Thru

A 700c aluminum frame women’s hybrid bike with modest components and mechanical disc brakes.
Compare the full range

MSRP$599
FrameAluminum
SuspensionHardtail, 75mm
ForkSuntour NVX
Wheels700c Aluminum
Drivetrain3 × 7
GroupsetAltus, Tourney
BrakesMechanical Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

35 mph

XFR 3 Step-Thru

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XXS

4'9" – 5'3"

XS

5'1" – 5'7"

SM

5'4" – 5'10"

MD

5'8" – 6'1"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Double Butted X6 Aluminum

BB StandardBSA, Threaded

Fork

SR Suntour NVX, 75mm

Travel75mm

Spring TypeCoil

Bottom Bracket

Cartridge Bearing, Threaded

Headset

Zero-Stack Internal

Stem

Aluminum

Handlebar

Norco Aluminum, 25mm Rise

Saddle

Norco Women's Sport

Seatpost

Aluminum

TypeRigid

Pedals

City

Grips

Slim

Groupset
Rear Derailleur

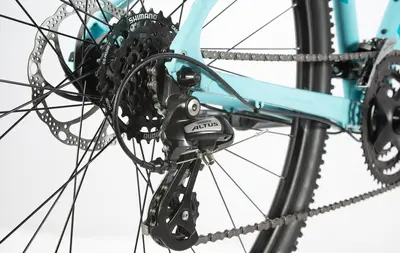

Shimano Altus RD-M310

Front Derailleur

Shimano Tourney FD-TY510

Crank

Shimano FC-TY301, 48/38/28T

Shifters

Rear: Shimano ST-EF500 Easy-Fire, 7 speed, Front: Shimano ST-EF500 Easy-Fire, 3 speed

Cassette

Shimano HG200 12-32T

Chain

KMC Z7

Brakes

Front: Tektro MD-M280 Mechanical Disc, Rear: Tektro MD-M280 Mechanical Disc

TypeMechanical Disc

Brake Levers

Shimano Easy-Fire, 2-finger

Wheels
Rims

WTB SX19

Front Hub

Weather Sealed Disc

Rear Hub

Weather Sealed Disc

Tires

Impac Smartpac 700x47c

Rider Notes
