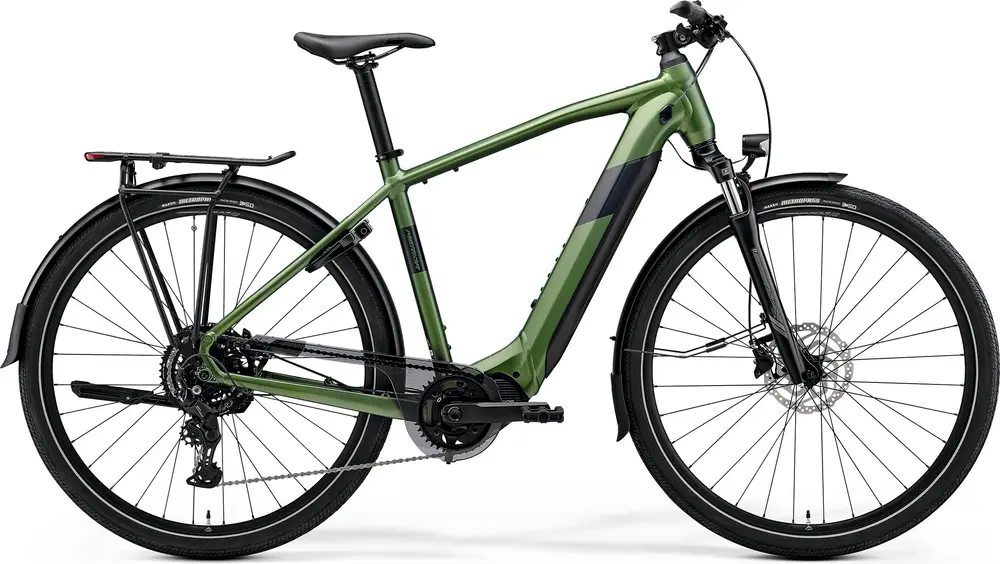

2026 Merida

eSPRESSO 400 EQ

A 700c aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.

Weight55.8 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
BatteryShimano 504Wh
BrakesShimano Alivio Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

eSPRESSO 400 EQ

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Merida eSpresso CC 675 EQ 2024 review | Urban Electric Bike of the Year contender

May 2024 · Warren Rossiter

Metropolitan cruiser with multi-terrain ambitions

Highs

  • Lots of kit included

  • Smooth and powerful motor

  • Excellent brakes

  • Great contact points

Lows

  • Chunky off road tyres aren t so quick on the road

Read Review

ebiketips
Merida eSPRESSO City 400 EQ

Jul 2023

Verdict: A few small niggles, but a very versatile e-bike that works well everywhere from busy urban streets to relaxing woodland treks

Read Review

Geometry
Specs
Build
Frame

eSPRESSO LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube

BB Standard: BSA, Threaded

Tire Clearance: 50c

Fork

SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize

Travel: 63mm

Spring Type: Coil

Bottom Bracket

BSA, threaded

Headset

MERIDA-8156

Handlebar

MERIDA EXPERT, material: aluminium, 660mm width, 15mm rise

Saddle

MERIDA EXPERT TK II, V-mount

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano CUES U4000

Crank

Samox NWP203, 38 teeth

Shifters

Shimano CUES U4000

Cassette

Shimano LG300, 11-46 teeth, 9 speed

Chain

Shimano LG500

Chain Guide

Sunnywheel SW-CG-173A

Brakes

Shimano MT-200, 2 piston

Type: Shimano Alivio Hydraulic Disc

Wheels
Rims

MERIDA COMP TK, 20mm inner width, material: aluminium

Spokes

Black stainless, black nipples

Front Hub

Shimano QC300 / Shimano TC500-HM, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano QC300 / Shimano TC500-HM, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Metropass, 28x2.0, wire, reflecting line

Disc Rotors

Shimano RT10, 180 mm

Electric Components
Motor

Shimano EP6, 85Nm

Battery

Shimano EN805-L, 504Wh

Display

Shimano SC-EN500

Accessories
Fenders

Sunnywheel SW-FA311-60E1 (MSB)

Racks

MERIDA MIK HD Carrier with Spring clip & Spanninga rear light

Lock

Abus 4650 SL

Stand

Massload CL-KA98
