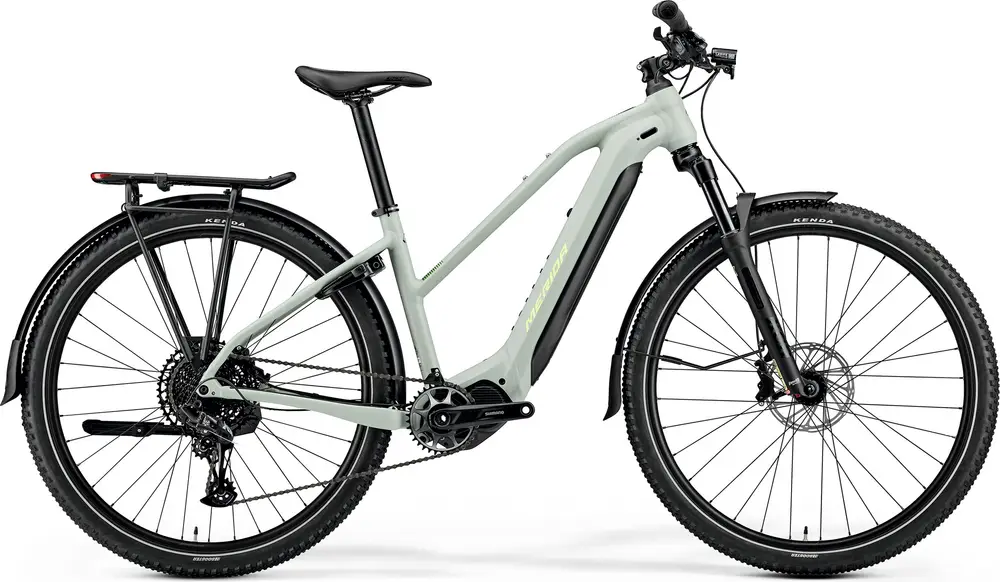

Today’s Deals2026 Merida
eBIG.TOUR 675 EQ
A 29″ aluminum frame commuter e-bike with high-end components and sram db8 hydraulic disc brakes.
Compare the full range
| Weight | 57.3 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCR Air |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle |
| Motor | Shimano 600W 85Nm mid-drive |
| Battery | Shimano 750Wh |
| Brakes | SRAM DB8 Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | eBIG.TOUR LITE IV, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube BB Standard: BSA, Threaded |
|---|---|
| Fork | SR Suntour XCR34-X 2CR, Air Boost, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize Travel: 100mm Spring Type: Air |
| Bottom Bracket | BSA, threaded |
| Headset | MERIDA-8155 (for the steerer 1-1/8"~1.5") |
| Handlebar | MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise |
| Saddle | MERIDA EXPERT TK II, V-mount |
| Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback Type: Rigid |
| Pedals | VP VPE-537 |
| Rear Derailleur | SRAM NX Eagle |
|---|---|
| Crank | SAMOX EMA04, 34 teeth |
| Shifters | SRAM NX EAGLE 12 |
| Cassette | SRAM PG-1210 Eagle, 11-50 teeth, 12 speed |
| Chain | SRAM SX Eagle |
| Brakes | SRAM DB8 Stealth / SRAM DB8 stealth, 4 piston Type: SRAM DB8 Hydraulic Disc |
| Rims | MERIDA COMP CC II, 25mm inner width, material: aluminium |
|---|---|
| Spokes | Black stainless, black nipples |
| Front Hub | Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 36 spoke holes, 6 bolt |
| Rear Hub | Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 36 spoke holes, 6 bolt |
| Tires | Kenda Booster, 29x2.2", wire, Reflex stripe |
| Disc Rotors | SRAM CenterLine, 180mm |
| Motor | Shimano EP6, 85Nm |
|---|---|
| Battery | Trendpower Internal Battery 750 Wh TPS-C04-35SD, Shimano Gen 2, removable |
| Display | Shimano SC-EN600 |
| Fenders | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 |
|---|---|
| Racks | MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE |
| Lock | Abus 4650SL LH-3 lock |
| Stand | CL-KA98, 29" |
