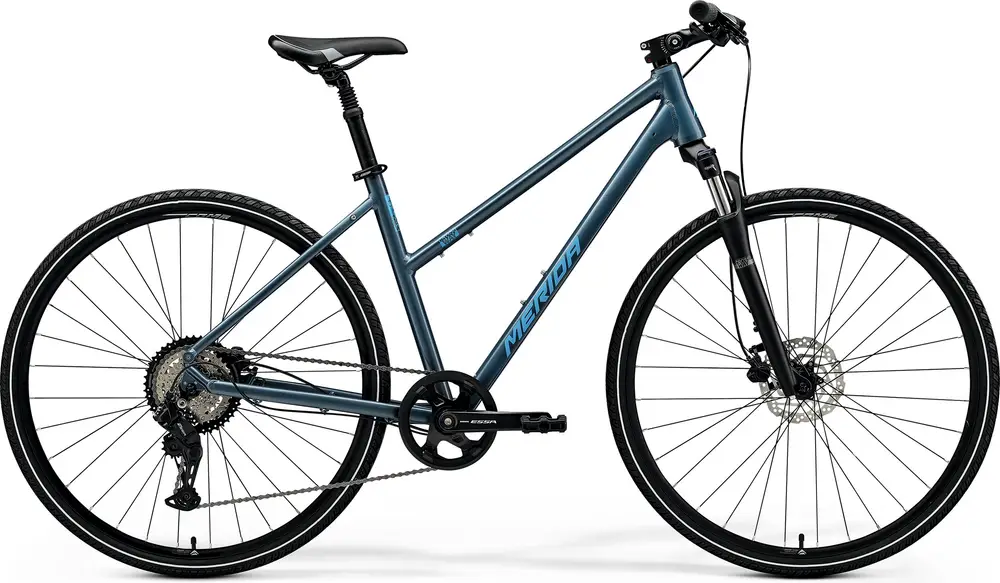

2025 Merida

CROSSWAY L 20

A 700c aluminum frame hybrid bike with mid-range components and tektro hydraulic disc brakes.
Compare the full range

Manufacturer Price

A$999($712)
Price History
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain1 × 8
GroupsetEssa
BrakesTektro Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

CROSSWAY L 20

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full CROSSWAY model range

View Comparison
Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'8"

MD

5'5" – 5'11"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Reviews
road.cc
Merida Crossway 300 2023

Mar 2023 · John Stevenson

Dependable, friendly hybrid with comfort-boosting features and huge gear range, if a bit heavy

Highs

  • Comfy thanks to suspension post & fork

  • Huge gear range

  • Decent hydraulic disc brakes

  • Great colour

Lows

  • No rack, mudguards etc

  • Triple chainset could be confusing

  • Heavy

Read Review

Geometry
Specs
Build
Frame

CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, Threaded

Tire Clearance: 50c

Fork

Suntour NEX HLO, Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize

Travel: 63mm

Spring Type: Coil

Bottom Bracket

BSA, threaded

Headset

MERIDA M2345

Handlebar

MERIDA CC, material: aluminium, 660mm width, 25mm rise

Saddle

MERIDA Cross Sport

Seatpost

MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

Type: Suspension

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano ESSA RD-U2000-8, GS

Crank

Shimano ESSA FC-U2001 40 teeth, MAT Aluminium, 170 mm (XXS/XS/S), 175 mm-M up

Shifters

Shimano ESSA SL-315-8R

Cassette

Shimano CS-HG400-8, 11-45 teeth, 8 speed

Chain

KMC Z8.3

Brakes

Tektro M275, hydraulic brake

Type: Tektro Hydraulic Disc

Wheels
Rims

MERIDA CC, 17mm inner width, material: aluminium

Spokes

Black steel

Front Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tires

MERIDA K1171, 700x40C, wire

Disc Rotors

Shimano RT10, 160 mm
