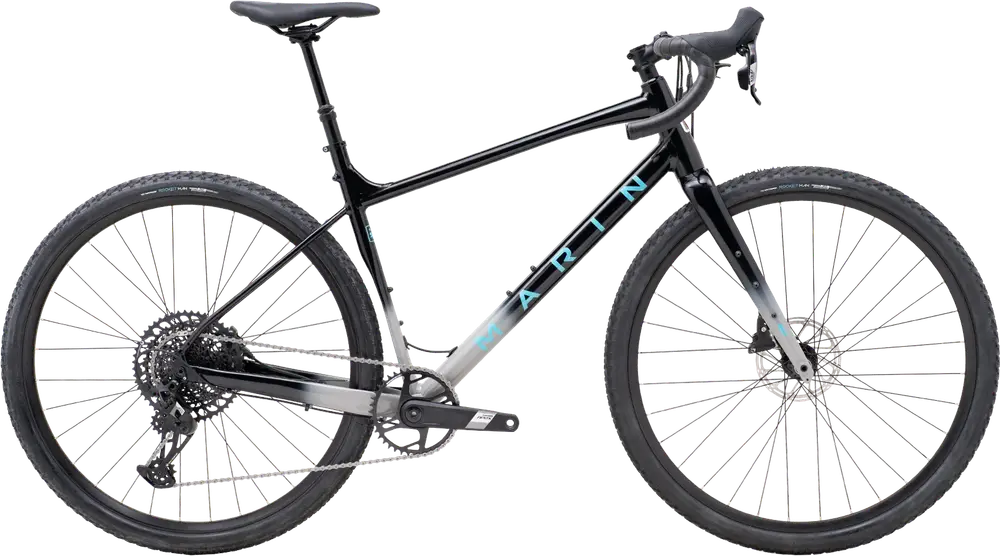

Today’s Deals2024 Marin
GESTALT XR
An aluminum frame gravel bike with upper mid-range components and sram apex hydraulic disc brakes.
Manufacturer Price
$2,399| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Apex |
| Brakes | SRAM Apex Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2025
An aluminum frame gravel bike with upper mid-range components and sram apex hydraulic disc brakes.
Progressive geometry makes single track a blast with little compromise on mellower terrain
Wide (480 mm) bars paired nicely with the aforementioned geometry
Relatively good value
Very low stack height
27.2 mm seatpost limits dropper post options
Mar 2024 · Warren Rossiter
MTB-inspired off-roader
Epic off road handling prowess
Great drivetrain
Comfortable and capable
Brakes have power but lack feel
Aug 2023
The Gestalt XR takes the formula that Marin concocted for the standard Gestalt and gives it a serious shake up. Donning a super aggressive geometry and equipped with a very solid built kit for the cash, it proves that gravel can learn a thing or two from mountain bike design. With that, this bike is a weapon over flat surfaces and pushes what we know as ‘gravel’ even further, however, it's not perfect as its climbing ability is hindered by its gearing choices. Gravel bike racing – everything you need to know Ribble Gravel SL Pro review Will your next bike be a gravel bike?
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle BB Standard: BSA, 68mm, Threaded Tire Clearance: 50c Color: Black / Grey |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Bottom Bracket | SRAM DUB BSA |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Saddle | Marin Beyond Road Concept Elite |
| Seatpost | TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm Type: Dropper |
| Pedals | - |
| Grips | Marin Shock Absorbing Perforated Tape |
| Rear Derailleur | SRAM Apex 1 12-Speed |
|---|---|
| Crank | SRAM Apex 1, 40T |
| Shifters | SRAM Apex 1 1x12-Speed |
| Cassette | SRAM CS-XG-1275, 10-52T |
| Chain | SRAM NX |
| Brakes | SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor Type: SRAM Apex Hydraulic Disc |
| Brake Levers | SRAM Apex 1 w/ Integrated Shifter |
| Rims | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible |
|---|---|
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum Alloy, 100x12mm, Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, 142x12mm, Disc, 32H |
| Tires | Vee Tire Co. QuikStyk, 700x45, Folding Bead, Tubeless Compatible |
