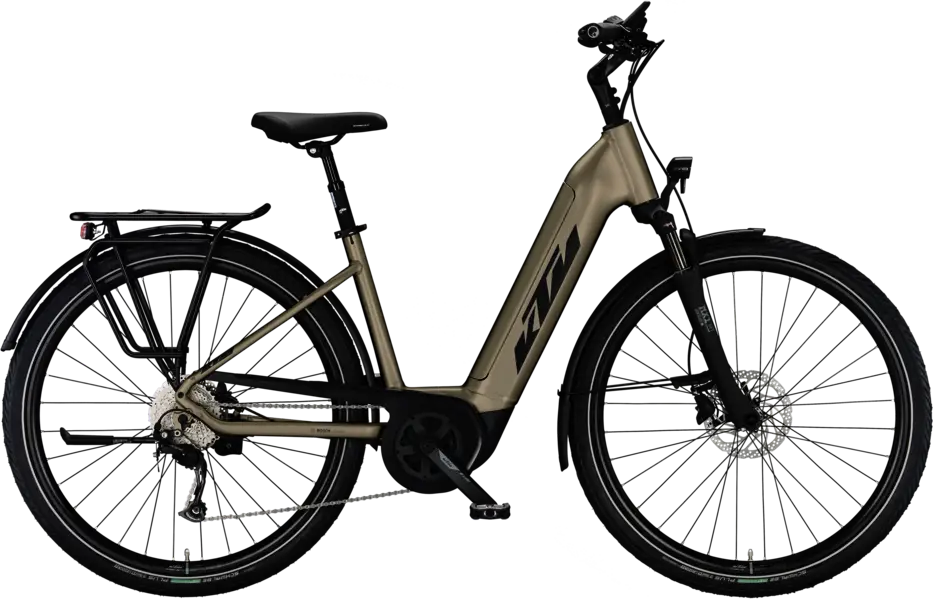

2026 KTM

MACINA TOUR P510

A 29″ aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,449($3,953)
Price History
Weight57.8 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour
Wheels29″ Aluminum
Drivetrain1 × 9
GroupsetAlivio
MotorBosch 600W 75Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Alivio Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($3,953)

KTM logoKTM

MACINA TOUR P510

Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

MACINA TOUR P510

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA TOUR model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-3150

BB Standard: Bosch, Press Fit

Fork

Suntour NCX32-D coil LO 63mm

Travel: 63mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM Line UP3 adjust. 0-90°

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Essenza+

Seatpost

KTM Line Elegance suspension 30.9/300

Type: Suspension

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Alivio M3100-9 SGS shadow

Crank

KTM E-LINE BNI 170mm Q16

Shifters

Shimano Alivio M3100-9 display

Cassette

Shimano HG201-9 / 11-36

Chain

Shimano E6070-9 e-bike

Chain Guide

KTM type 6 for Bosch Gen.3

Brakes

Shimano Alivio M3100-9 display

Type: Shimano Alivio Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport 25 700C 32H 622x25C / DT Champion 2.0 black

Tires

Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622, Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622

Disc Rotors

Shimano RT30 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE Gen.3 SMART SYSTEM - 25km/h / 75Nm

Battery

Bosch PowerTUBE 500Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch INTUVIA 100 LCD Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM

Accessories
Fenders

SKS A55K 55mm black matt

Racks

KTM tour (snap-it 1.0)
