Today’s Deals2026 KTM

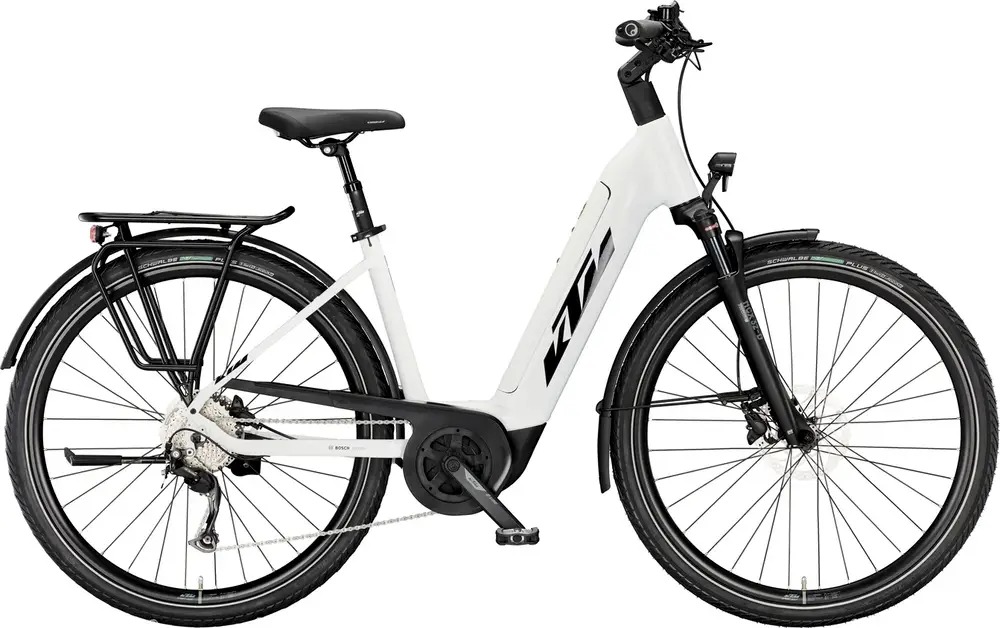

MACINA TOUR P500 LTD64
A 29″ aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,299($3,761)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Fork | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | Alivio |
| Motor | Bosch 600W 65Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Shimano Alivio Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full MACINA TOUR model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-1150 BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Suntour NCX32-D coil LO 63mm Travel: 63mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros ICR 1.5" angle limit |
| Stem | KTM adjust. 0-60° ICR |
| Handlebar | KTM Line rizer20 640mm |
| Saddle | Selle Royal Essenza+ |
| Seatpost | KTM Line Elegance suspension 30.9/300 Type: Suspension |
| Pedals | Trekking-Pedal VP-616 anti-slip |
| Grips | Ergon GP1 SD |
| Rear Derailleur | Shimano Alivio M3100-9 SGS shadow |
|---|---|
| Crank | KTM E-LINE BNI 170mm Q16 |
| Shifters | Shimano Alivio M3100-9 display |
| Cassette | Shimano HG201-9 / 11-36T |
| Chain | Shimano E6070-9 e-bike |
| Chain Guide | KTM type 6 for Bosch Gen.3 |
| Brakes | Calipers: Shimano Alivio M3100-9 display, Rotors: Shimano RT30 CL 180 / 160 Type: Shimano Alivio Hydraulic Disc |
| Rims | KTM Line - Shimano Deore M6000 CL 32H 100-5QR, |
|---|---|
| Tires | Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622, Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622 |
| Motor | Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm |
|---|---|
| Battery | Bosch PowerTUBE 500Wh hor. |
| Display | Bosch INTUVIA LCD display with Remote |
| Charger | Bosch STANDARD Charger 4A |
| Racks | SKS A55K 55mm black matt |
|---|
