Today’s Deals2026 KTM

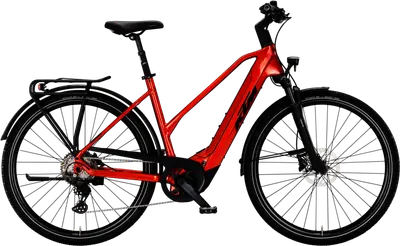

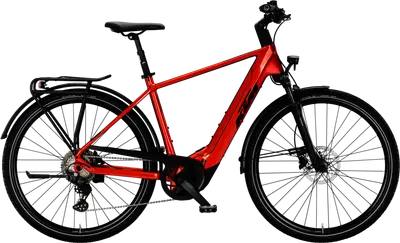

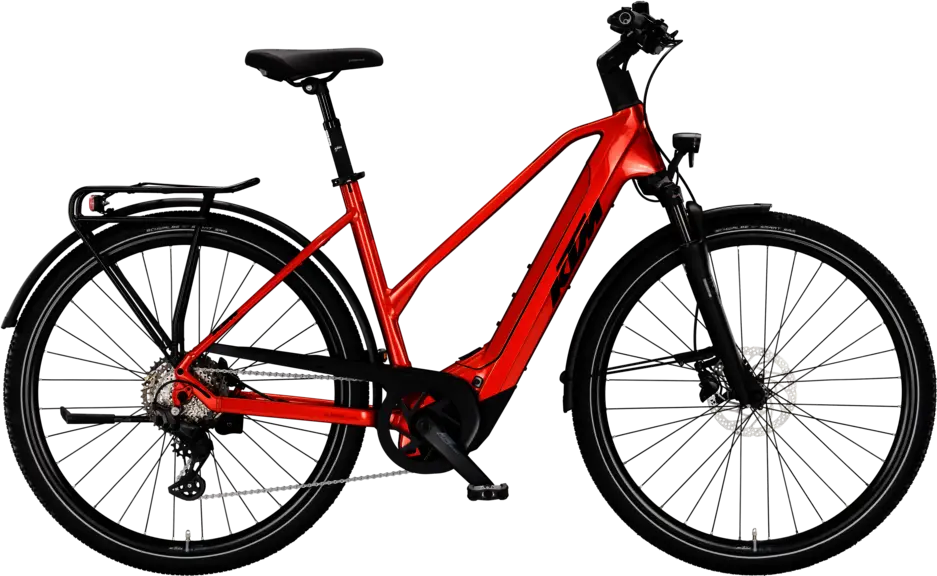

MACINA TOUR CX 830
A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano deore rim brakes.
Compare the full range
Manufacturer Price
€3,699($4,239)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Wheels | 700c |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 600W 100Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | Shimano Deore Rim |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full MACINA TOUR model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Suntour NX1 coil LO 63mm Travel: 63mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros AICR internal 1.5"-1.5" |
| Stem | KTM Line adjust. 0-60° ICR |
| Handlebar | KTM Line low rizer 640mm |
| Saddle | Selle Royal Essenza Athletic |
| Seatpost | KTM Line Elegance suspension 30.9/300 Type: Suspension |
| Pedals | Trekking-Pedal VP-616 anti-slip |
| Grips | Ergon GP1 SD |
| Rear Derailleur | Shimano Deore M5130-10 LG shadow+ |
|---|---|
| Crank | KTM E-COMP ISIS 170mm Q16 |
| Shifters | Shimano Deore M5130-10 LG display |
| Cassette | Shimano LG600-10 / 11-43 |
| Chain | KMC e500 LG e-bike |
| Chain Guide | KTM type 9 for Bosch BDU38 |
| Brakes | Shimano Deore M5130-10 LG display Type: Shimano Deore Rim |
| Tires | Front: Schwalbe Smart Sam SBC K-Guard 47-622 Reflex, Rear: Schwalbe Smart Sam SBC K-Guard 47-622 Reflex |
|---|
| Motor | Bosch PERFORMANCE CX BDU3840 up to 100Nm |
|---|---|
| Battery | Bosch PowerTUBE 800Wh horizontal |
| Display | Bosch PURION 200 Display & Remote |
| Charger | Bosch STANDARD Charger 4A |
| Fenders | SKS A55K PET Trek 28" front |
|---|---|
| Racks | KTM light snap-it 1.0 |
