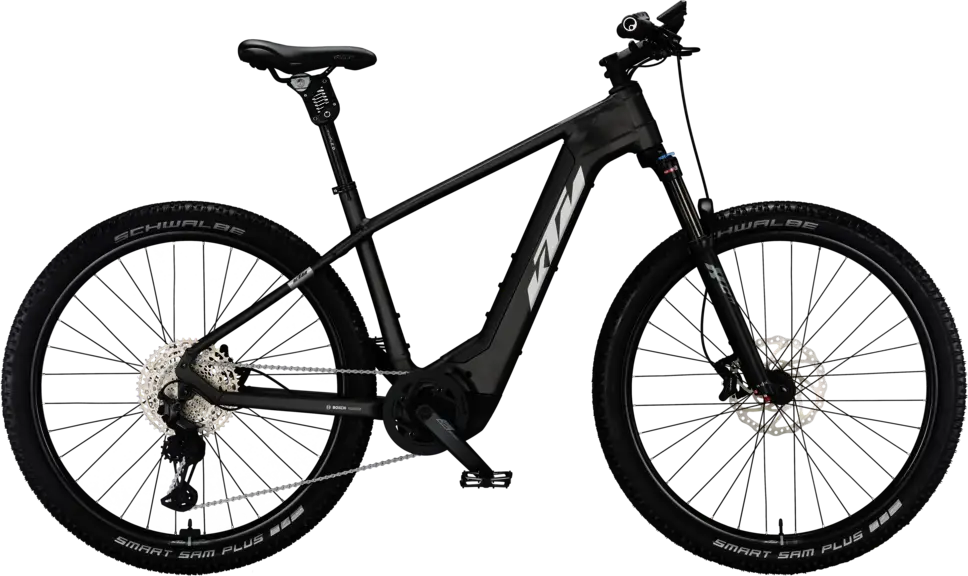

2026 KTM

MACINA TEAM XL

A 29″ aluminum frame hardtail trail e-bike with high-end components.

Manufacturer Price

€4,799($5,584)
Price History
Weight58.9 lbs
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCR Air
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetXT
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano XT Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($5,584)

KTM logoKTM

MACINA TEAM XL

Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA TEAM XL
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

MACINA TEAM XL

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Price History
Geometry
Specs
Build
Frame

Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706

BB Standard: Bosch, Press Fit

Fork

Suntour XCR 34 Air 29" LOR 120mm 15x110 taper

Travel: 120mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

Ergotec Piranha2 6°

Handlebar

Ergotec low rizer GH15 Savety 740mm

Saddle

Selle Royal Viaggio HRC

Seatpost

bySchulz G.2 ST suspension 30.9/350

Type: Suspension

Pedals

MTB-Pedal flat VPE-527 alloy

Groupset
Rear Derailleur

Shimano Deore XT M8130-11 LG shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore XT M8130-11 LG

Cassette

Shimano LG400-11 / 11-50

Chain

KMC e11 Sport EPT e-bike

Brakes

Shimano Deore XT M8130-11 LG

Type: Shimano XT Hydraulic Disc

Wheels
Rims

KTM Line - DT Swiss 370 6b 32L 110/15 / Ryde Andra29 32H 622x29C / DT Alpine II 2.34 black

Tires

Front: Schwalbe Smart Sam Plus Perf. DD GreenGuard 57-622, Rear: Schwalbe Smart Sam Plus Perf. DD GreenGuard 57-622

Disc Rotors

Tektro TR-17 2.3mm 6bolt 203 / 180

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM
