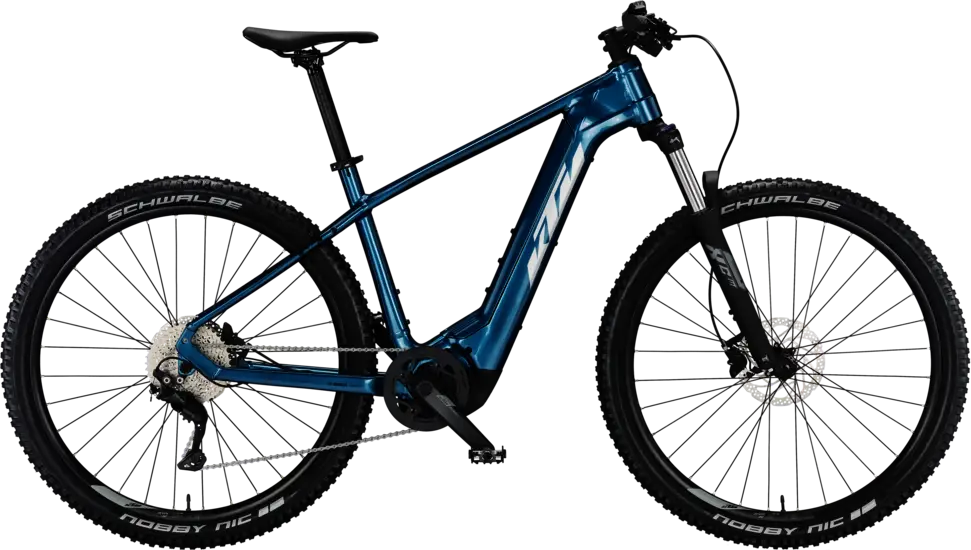

2026 KTM

MACINA TEAM 691

A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

Manufacturer Price

€3,199($3,720)
Price History
Weight54.0 lbs
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 625Wh
BrakesShimano Deore Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy

($3,720)

KTM logoKTM

MACINA TEAM 691

Advertisement
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA TEAM 691
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

MACINA TEAM 691

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706

BB Standard: Bosch, Press Fit

Fork

Suntour XCM 34 coil 29" NLO 120mm 15x110 taper

Travel: 120mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM COMP II 7°

Handlebar

KTM COMP II flat 2X 720mm

Saddle

KTM Line Sport

Seatpost

KTM COMP II 30.9/400

Type: Rigid

Pedals

MTB-Pedal VP-195E alloy

Groupset
Rear Derailleur

Shimano Deore M4120-10 SGS shadow

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore M4100-10 display

Cassette

Shimano Deore M4100-10 / 11-42

Chain

KMC e10 EPT e-bike

Brakes

Shimano Deore M4100-10 display

Type: Shimano Deore Hydraulic Disc

Wheels
Rims

KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black

Tires

Front: Schwalbe Nobby Nic Perf. Folding 62-622, Rear: Schwalbe Nobby Nic Perf. Folding 62-622

Disc Rotors

Shimano RT30 CL 180 / 180

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 625Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM

Rider Notes
Riders Also Viewed

First added January 5

Last updated June 2
